Quick Details
-
Max. Lifting Height:
-
9.2m
-
Span:
-
7.8m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Tonlita
-
Maximum working radius:
-
7.8m*0.2t
-
Maximum ground lift:
-
9.2m*0.8t
-
Hook up speed:
-
0-8m/min
-
Wire Rope Specifications:
-
8mm*45m
-
Boom length/time:
-
2.8m-8.2m/22sec
-
Boom angle/time:
-
0-75°/13sec
-
Walking speed:
-
0-2.5km/h
-
Gradeability:
-
20°(36%)
-
Voltage:
-
AC380V
-
engine:
-
YARMAR
Quick Details
-
Weight (KG):
-
3000
-
Application:
-
factory,outside widely
-
Rated Loading Capacity:
-
2.95t
-
Max. Lifting Height:
-
9.2m
-
Span:
-
7.8m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Tonlita
-
Maximum working radius:
-
7.8m*0.2t
-
Maximum ground lift:
-
9.2m*0.8t
-
Hook up speed:
-
0-8m/min
-
Wire Rope Specifications:
-
8mm*45m
-
Boom length/time:
-
2.8m-8.2m/22sec
-
Boom angle/time:
-
0-75°/13sec
-
Walking speed:
-
0-2.5km/h
-
Gradeability:
-
20°(36%)
-
Voltage:
-
AC380V
-
engine:
-
YARMAR

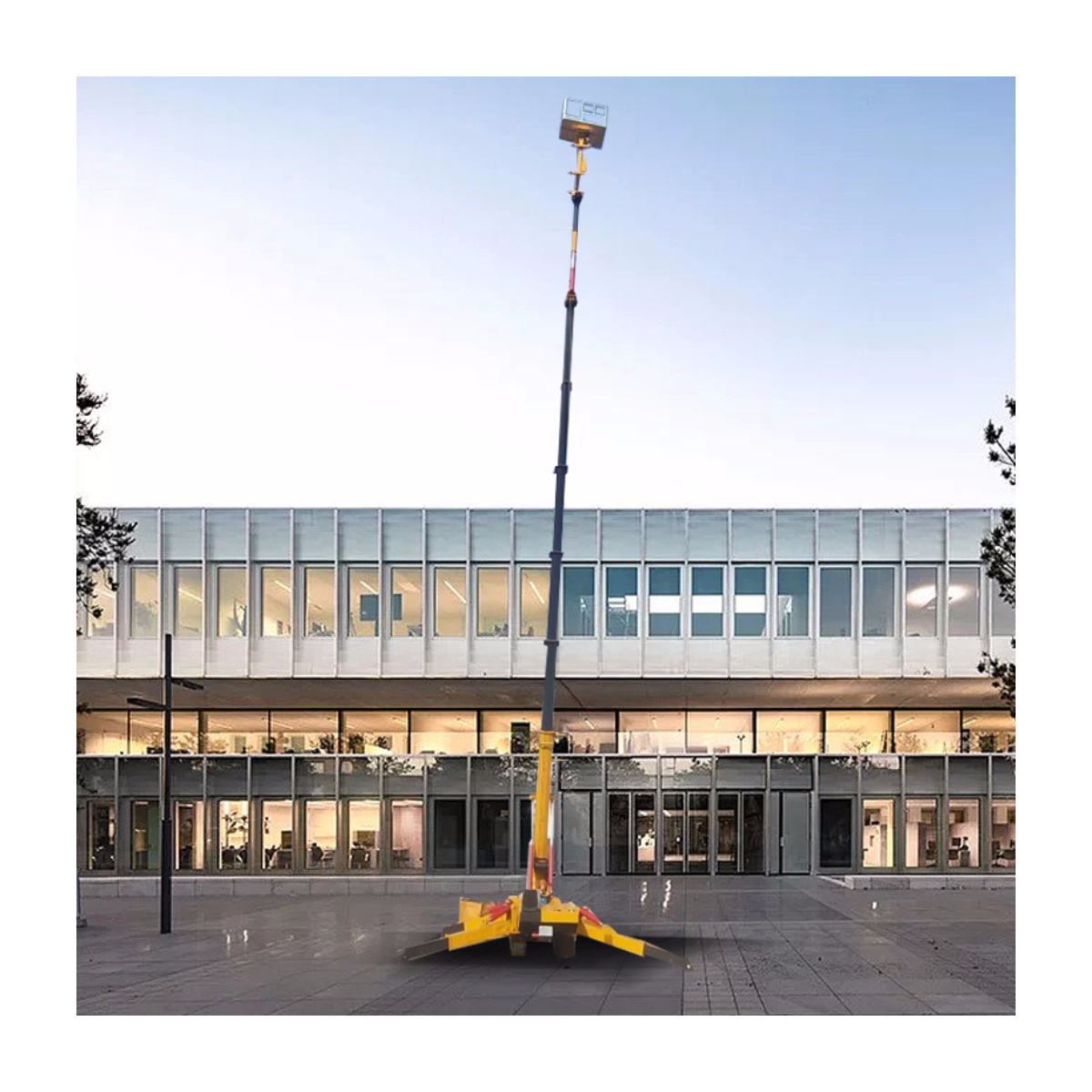

Product Show
Max lift capacity: 3000 KG
Max working radius:7.8 M*0.2 T
Max lifting height: 9.2 M*0.8 T
Size: 2830*800*1650 MM
Hydraulic outriggers take up less space when working, and the outriggers can also be adjusted .
Crawler chassis, more stable, suitable for difficult and complex working environment.
Product Paramenters
|
Specification
|
2.95 Ton
|
|
Maximum working radius
|
7.8m×0.2Ton
|
|
Maximum ground lift
|
9.2mX0.8Ton
|
|
Engine Producer
|
YARMAR
|
|
Type/displacement
|
EV80/F195
|
|
Start method
|
Electric start
|
|
Startup performance
|
-5°C~40°C
|
|
Fuel volume
|
Diesel/8L
|
|
Battery capacity
|
12v 45AH
|
|
Fuel consumption
|
274g/kW-h
|
|
Noise level
|
Rated speed≤81.5dBA (1m)
|
|
Emission Standards
|
CE/EPA/Ero5
|
|
Winch Hook up speed
|
0-8m/min
|
|
Winch Wire Rope Specifications
|
Φ8mm×45m
|
|
Telescopic device Boom form
|
5-section boom, U-shaped high-strength manganese
|
|
Boom length/time
|
2.8m-8.2m/22sec
|
|
Boom angle/time
|
0-75°/13sec
|
|
Rotation angle/speed
|
0-360°（continuous）/60sec
|
|
Outrigger Action Form
|
Manual unscrewing + hydraulic automatic support (two legs)
|
|
Maximum extension (mm)
|
4010 (long) X3260 (rear), (front)
|
|
Way of traveling
|
Hydraulic motor drive, two-speed
|
|
Traveling speed
|
0-2.5km/h
|
|
Traveling Gradeability
|
20°(36%)
|
|
Voltage of motor
|
AC380V
|
|
Type of operation (jib/outrigger), manual travel
|
Manual operation, manual walking + remote control (optional)
|
|
The standard configuration
|
Diesel engine and electric motor (dual power)
|
|
Vehicle size
|
Length 2830*width 800*height 1650
|
|
Craftsmanship
|
Paint assembly process
|
Product Details
Our Company
Are you a manufacturer or Trader?
We are a professional manufacturer, we have our own R&D team and sales team, and we provide a one-stop service.
What is your payment term?
We accept T/T, L/C at sight, etc.
How long is the validity of the quotation?
Generally, our price is valid within 15 days from the date of quotation. The price will be adjusted appropriately according to the price fluctuation of raw materials and changes in the market.
What is your delivery time?
Usually, we make merchandise inventory, if we have the products in stock, the delivery time is 5-10 days after receiving the deposit. If we don't have the products in stock, we will arrange the production right now, the delivery time will be 20-30 days, It depends on the order quantity.
Do you provide OEM/ODM Service?
Yes, offer us the necessary information, we provide custom-made services to meet the different needs of global clients with different budgets.
Do you have a CE certificate?
Yes, most of our products have the CE certificate
How can we ensure quality?
The final inspection is always carried out before shipment.
How to install the equipment after purchasing it?
We will provide a professional installation video to illustrate. Also, provide it manually.
Do you offer a guarantee?
Yes, we guarantee our product for one year. Provide after-sales service support and agricultural technical support.
