Quick Details
-
Dimension(L*W*H):
-
1000
-
Weight:
-
1000
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Field installation, commissioning and training
-

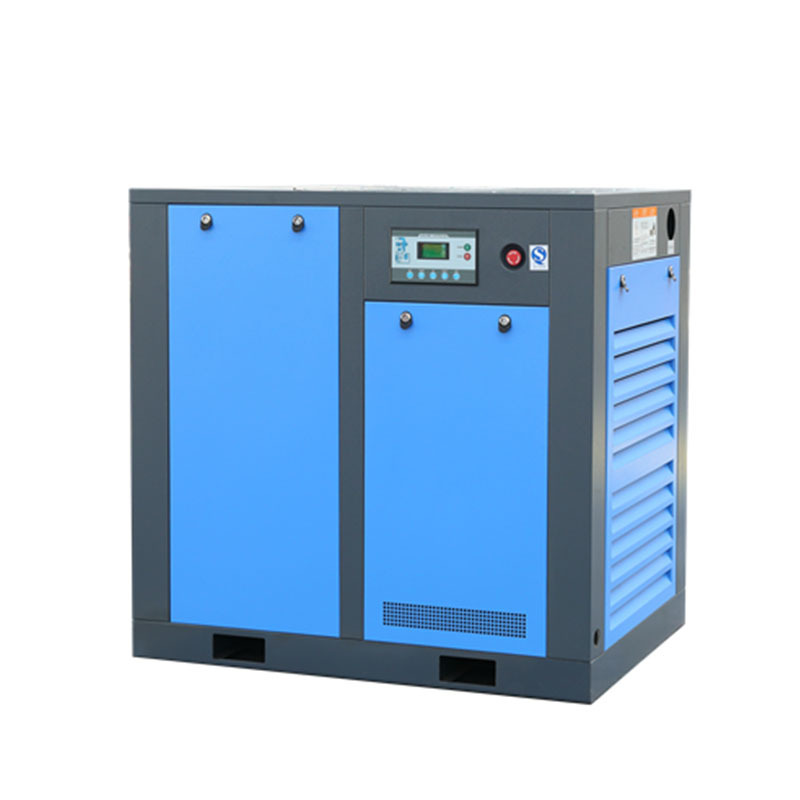

Model:
-
YDERC-40SWLD
-
F.A.D:
-
3.6-5.3m3/min
-
Working Presure:
-
7-13bar
-
Power:
-
30kw
-
Type of cooling:
-
Water cooling
-
Bearing:
-
world famous brand
-
Faygo:
-
FaygoPlast is famous China Plant
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YUDA
-
Voltage:
-
380
-
Dimension(L*W*H):
-
1000
-
Weight:
-
1000
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Model:
-
YDERC-40SWLD
-
F.A.D:
-
3.6-5.3m3/min
-
Working Presure:
-
7-13bar
-
Power:
-
30kw
-
Type of cooling:
-
Water cooling
-
Bearing:
-
world famous brand
-
Faygo:
-
FaygoPlast is famous China Plant
Our advantages
1. Imported top-grade main machine, as the third generation product of state-of –the art brand the world, with asymmetrical 5:6 tooth rotor, is provided with outstanding performance and high efficiency far beyond other similar-type brand.
2. Full-intellectual control system and LCD screen, with self-diagnosis and protection devices, remote control and multi-host interlocking control, realizing unattended and high-tech operation.
3. Y series three-phase asynchronous motor special for compressor, imported World famous brand bearing, F-level insulation, IP54 especially suitable for long-term use, safe and reliable.
4 .Imported oil filter, oil gas separation filter element, ternary separation, ensure oil content less than 0.001ppm, the trunk adopts metal pipe, safe for long –term operation without leakage or deformation, the V type drive belt is imported from Germany, and has a service life more than10000hous.
5.Air volume auto intelligent control, auto shutdown after over long idle run, ensure over 25% of energy saving.
9.6Valve-free oil system design, achieving a safer and more reliable operation of the whole machine, main machine adopts imported special compressor oil, reducing leakage inside and outside the compressor, improving efficiency of main machine and prolonging service life.
|
Model
|
YDERC-
175SW
|
YDERC-
200SW
|
YDERC-
330SW
|
YDERC-
420SW
|
YDERC-
470SW
|
YDERC-
550SW
|
YDERC-
600SW
|
|
Type Of Cooling
|
Water
|
Water
|
Water
|
Water
|
Water
|
Air
|
Air
|
|
Volume Flow/Pressure
|
24.0/7
|
27.7/7
|
43.0/7
|
54.0/7
|
64.0/7
|
70.0/7
|
76.0/7
|
|
m3/bar
|
23.0/8
|
26.5/8
|
40.0/8
|
47.0/8
|
55.0/8
|
62.0/8
|
68.0/8
|
|
|
20.0/10
|
22.5/10
|
37.0/10
|
40.0/10
|
|
|
|
|
Compressor Power (KW)
|
132
|
160
|
250
|
315
|
355
|
400
|
450
|
|
Speed (r/min)
|
3000
|
3000
|
3000
|
3000
|
3000
|
3000
|
3000
|
|
Power for Steam Turbine Compressor (KW)
|
160
|
250
|
320
|
400
|
450
|
500
|
600
|
|
V/Hz
|
AC 380/50
|
||||||
|
Noise db(A)
|
72±5 Measured according to national standards (GB/T4980-2003)
|
||||||
|
Exhaust Oil Content
|
<3ppm
|
||||||
|
Exit Air Temperature
m3/min
|
Environment Temperature+15°C
|
||||||
|
Cooling Water Volume
L/min
|
200
|
118
|
236
|
460
|
540
|
600
|
660
|
|
Port Size
|
Dn65
|
Dn65
|
Dn100
|
Dn125
|
Dn150
|
Dn150
|
Dn150
|
Main configuration
1 Motor- Germany
2 Belt- Germany
3 Oil filter- Germany
4 Solenoid valve- Japan
5 Combination valve- Austria
6 AC contactor- Germany
7 Gas cooler- Wuxi, China
8 Oil cooler- Wuxi, China
.9 Pressure controller- Japan
1.1 year warranty. During warranty, we provide free of charge for repairing cost.
2. Lifetime maintenance. After-sales department can provide life long maintenance service.
