Quick Details
-
Application:
-
home/ villa/hospital
-
Design Style:
-
Modern
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Safely lift
-
Model Number:
-
GH
-
Capacity:
-
0-400kgs
-
Control system:
-
DELIXI
-
Certification:
-
CE ISO
-
Color:
-
Customer Request
-
Speed:
-
0.15-0.2m/s
-
Voltage:
-
110v 220v 240v 380v Optional
-
Product name:
-
Home Elevator
-
Material:
-
Stainless Steel
-
Keywords:
-
Hydraulic Vehicle-mounted Elevating Platform
-
Floor:
-
2/3/4/5
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Free spare parts
-
Project Solution Capability:
-
3D model design, Cross Categories Consolidation
-
Application:
-
home/ villa/hospital
-
Design Style:
-
Modern
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Safely lift
-
Model Number:
-
GH
-
Capacity:
-
0-400kgs
-
Control system:
-
DELIXI
-
Certification:
-
CE ISO
-
Color:
-
Customer Request
-
Speed:
-
0.15-0.2m/s
-
Voltage:
-
110v 220v 240v 380v Optional
-
Product name:
-
Home Elevator
-
Material:
-
Stainless Steel
-
Keywords:
-
Hydraulic Vehicle-mounted Elevating Platform
-
Floor:
-
2/3/4/5
Product Description

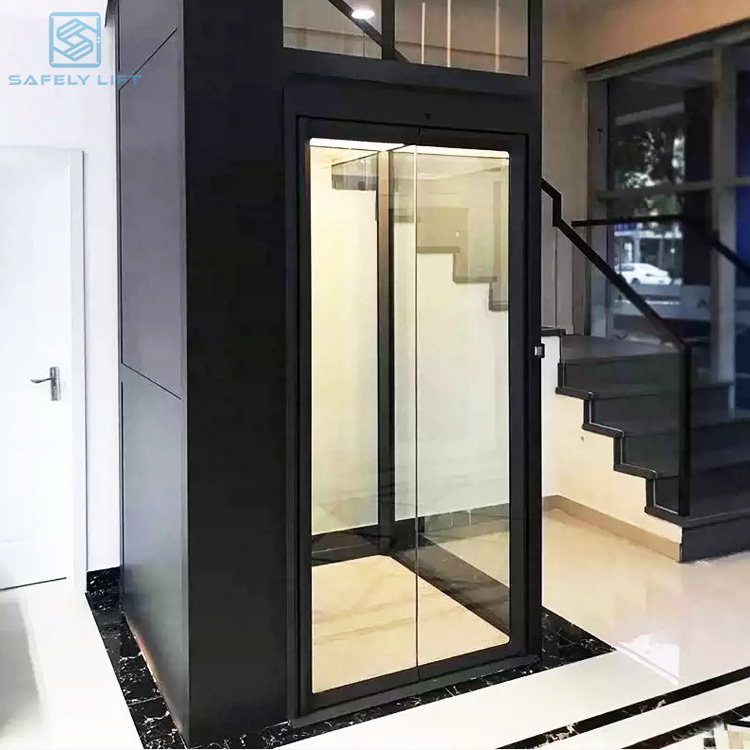

SAFELY home lift is widely used to lift person between different floors of the home, villa, hospital or bank.
It provides fast, efficient, convenient and safe access to mezzanines, basement, and any levels in multilevel building both indoors and outdoors.
Lifting height:
It can be customized according to client’s requirement.
Platform size:
It can be customized
Load capacity:
Standard ≤400 kg
Specification
|
item
|
value
|
|
Warranty
|
1 Year
|
|
After-sale Service
|
Online technical support, Free spare parts, Other
|
|
Project Solution Capability
|
graphic design, 3D model design, total solution for projects, Others
|
|
Application
|
all
|
|
Design Style
|
Modern
|
|
Place of Origin
|
China
|
|
|
Shandong
|
|
Brand Name
|
SAFELYLIFT
|
|
Usage
|
Residential Elevators
|
|
Drive Type
|
AC
|
|
Elevator Type
|
Passenger Elevators
|
|
|
|
Product parameters
|
Model
|
Cabin size
(mm)
|
Aluminum structure inner size
(mm)
|
Aluminum structure
outer size
(mm)
|
Lifting height
(mm)
|
Load capacity
(kg)
|
|||||
|
VPL2-3.0-H
|
1200*1300
|
1540*1380
|
1660*1500
|
3000
|
400
|
|||||
|
VPL2-3.50-H
|
1200*1300
|
1540*1380
|
1650*1500
|
3500
|
400
|
|||||
|
VPL3-5.00-H
|
1200*1200
|
1540*1280
|
1650*1400
|
5000
|
320
|
|||||
|
VPL3-6.00-H
|
1200*1200
|
1540*1280
|
1650*1400
|
6000
|
320
|
|||||
|
VPL3-7.00-H
|
1200*1200
|
1540*1280
|
1650*1400
|
7000
|
320
|
|||||
|
VPL3-8.00-H
|
1200*1200
|
1540*1280
|
1650*1400
|
8000
|
320
|
|||||
|
VPL4-8.00-H
|
1200*1200
|
1540*1280
|
1650*1400
|
8000
|
320
|
|||||
|
VPL4-9.00-H
|
1200*1200
|
1540*1280
|
1650*1400
|
9000
|
320
|
|||||
|
Custom designs are available in platform size, load capacity, lifting height, etc.
|
|
|
|
|
|
|||||
Parts details
SAFELY hydraulic cylinder has outstanding features, includes smooth working performance, heavy workload, hard-wearing parts etc.
It is heavy duty with reliable performance and no leaks.
High pressure pipe with double expanded metal protected.
Good resistance to oil, water and high pressure, with wear resistance and tensile properties.
PUMP UNIT
With proportional valve, lift run smoothly
Overload protection: pressure delay as option is installed on group. In case of overload, hydraulic cargo lift can’t be operated to protect goods on platform.
Manual down valve is designed to let platform down to ground when input power off.
Total 4 pieces wire rope ensure safety,
if one broke, double protection;
High strength, safe and reliable and stronger
than chain. Wear resistance, shock
resistance, and good running stability.
Good corrosion resistance.
In case of the Steel wire rope broken, the car can be locked immediately within 0.2s to prevent further decline.
Guarantee the safety of operator.
On each floor, there is a HOP
On Ground floor, the HOP with key to avoid mis-operation of children.
According to the actual needs of the motor to provide its required supply voltage, and then achieve the purpose of energy-saving speed regulation.
Heavy aluminum alloy can support lift by itself without other supporting.
Model: 100*100*55
aluminum thickness 3.50mm
Packing & Delivery
insternation wooden case
