Quick Details
-
Brand Name:
-
PDLUX
-
Theory:
-
Moving Induction
-
Output:
-
Switching Transducer
-
Description:
-

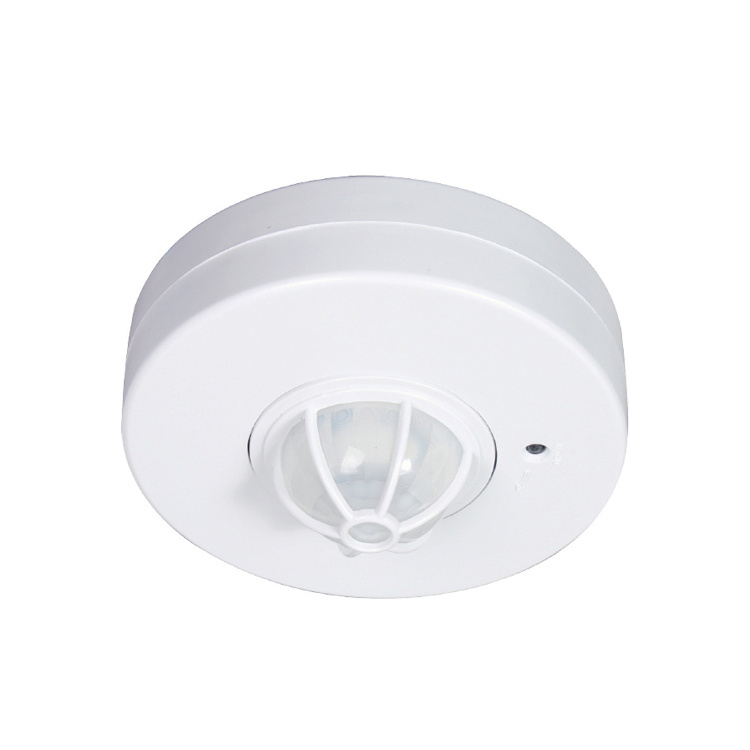

PIR Motion Sensor
-
Power source:
-
220-240V/AC 100-130V/AC
-
Power frequency:
-
50/60Hz
-
Time setting:
-
8sec±3sec~7min±2min (adjustable)
-
Detection range:
-
16m Max.(dia.) (22°C) (adjustable)
-
Light-control:
-
3LUX~daylight (adjustable)
-
Detection angle:
-
360°
-
Rated load:
-
1200W/800W/300W/150W
-
Standby power:
-
0.45W (static 0.1W)
-
Switch function:
-
Auto/Off/Manual Override
Quick Details
-
Usage:
-
Auto-switch
-
Model Number:
-
PD-PIR103-Z
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
PDLUX
-
Theory:
-
Moving Induction
-
Output:
-
Switching Transducer
-
Description:
-
PIR Motion Sensor
-
Power source:
-
220-240V/AC 100-130V/AC
-
Power frequency:
-
50/60Hz
-
Time setting:
-
8sec±3sec~7min±2min (adjustable)
-
Detection range:
-
16m Max.(dia.) (22°C) (adjustable)
-
Light-control:
-
3LUX~daylight (adjustable)
-
Detection angle:
-
360°
-
Rated load:
-
1200W/800W/300W/150W
-
Standby power:
-
0.45W (static 0.1W)
-
Switch function:
-
Auto/Off/Manual Override
Product Description
Specification
|
Power Source
|
220-240VAC / 100-130VAC
|
|
Power Frequency
|
50/60Hz
|
|
Rated Load
|
1200W Max.(220-240VAC)800W Max.(100-130VAC)
|
|
Time Setting
|
10sec-12min (adjustable)
|
|
Detection Range
|
3-12m (radii.)(adjustable)(22°C)
|
|
Detection Angle
|
360°
|
|
Working Temperature
|
-10℃ ~ +40℃
|
|
Working Humidity
|
<93%RH
|
|
Light-control
|
<10LUX-2000LUX (adjustable)
|
|
Installation Height
|
2.5m - 4.5m
|
|
Detection Motion Speed
|
0.6 - 1.5m/s
|
Application
