Quick Details
-
Screw diameter:
-
87.5mm
-
Product name:
-
Juicer Extractor Machine
-
Function:
-
Multifunctional
-
Application:
-
Fruit
-
Material:
-
Stainless Steel
-
MOQ:
-
1 Set
-
style:
-
luxury
Quick Details
-
Place of Origin:
-
Henan
-
Feed throughput:
-
500kg/h
-
Spindle speed:
-
400rpm
-
Screw diameter:
-
87.5mm
-
Product name:
-
Juicer Extractor Machine
-
Function:
-
Multifunctional
-
Application:
-
Fruit
-
Material:
-
Stainless Steel
-
MOQ:
-
1 Set
-
style:
-
luxury

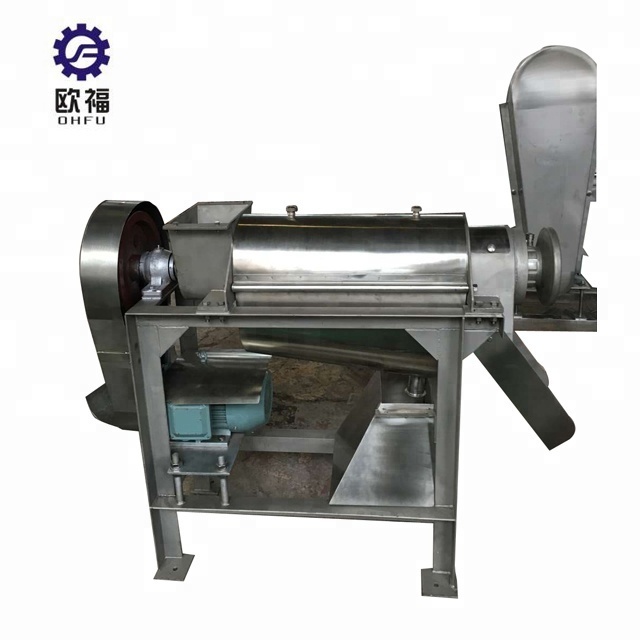

New design Spiral Juice Extractor Wheatgrass Juicer / Carrot Juice Extractor / Mango Juice Squeezing Machine
HF-0.5 with crusher type
Application
The machine is suitab l e for pressing tomato, pineapple, apple and orange etc fruit and vegetable juice.
Structure
The machine is made of front pedestal, feeding hopper, screw, filtrating screen, juice storing device, rear support, slag notch and other parts . Screw spindle support in the rolling bearing and r ight-hand side supports in hand wheel bearings. The electric motor drive the spiral working through a pair of v-belt pulley.
Specification
|
Type |
HF-0.5 |
HF-1.5 |
HF-2.5 |
|
Feed throughput |
500Kg /h |
1500Kg /h |
2500Kg/h |
|
Screw diamete r |
Φ 87.5mm |
Φ175mm |
Φ250mm |
|
Filter screen pore size |
0.6mm |
0.6mm |
0.6-1mm |
|
Motor Power |
1.5Kw |
4Kw |
11Kw |
|
Spindle speed |
400rpm |
400rpm |
400rpm |
|
Weight |
100Kg |
240Kg |
480Kg |
|
Dimension |
1100*265*920mm |
1560*450*1340mm |
1980*680*1620mm |
