Quick Details
-
Certificates:
-
ISO
-
Application:
-
Building
-
Size:
-
Customized
-
Price:
-
negotiation
-
Type:
-
Light
-
Drawing design:
-
AutoCAD,PKPM,MTS,3D3S
-
Standard:
-
ASTM, BS, DIN, GB, JIS
-
Dimensions:
-
as customers' requirement
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Product name:
-
Truss Structure
-
Color:
-
customized
-
Certificates:
-
ISO
-
Application:
-
Building
-
Size:
-
Customized
-
Price:
-
negotiation
-
Type:
-
Light
-
Drawing design:
-
AutoCAD,PKPM,MTS,3D3S
-
Standard:
-
ASTM, BS, DIN, GB, JIS
-
Dimensions:
-
as customers' requirement
New design light steel structure steel pipe truss
| Brand name |
Andy
|
| Model | 1.Single slope, Double slope, Multi-slope. |
| 2.Single span, Double-span, Multi-span, Single floor, Double floors. | |
| Column and beam | 1.Material Q345(S355JR)or Q235(S235JR) steel. |
| 2.All bolts connecting. | |
| 3.Straight cross-section or Variable cross-section. | |
| Fabrication | Advanced Automatic Welding Machines |
| Quality control | GB/T19001-2000----ISO9001:2000 |
| Surface | Hot-dip galvanized or painted |
| Roof and wall panel | 1.EPS ,PU ,Rockwool sandwich panel. |
| 2.Single colorful corrugated steel sheet0.326~0.8mm thick, YX28-205-820(820mm wide). | |
| 3.Sandwich panel with EPS, ROCK WOOL, PU etc insulation thickness around 50mm~150mm, 950mm or 960mm width. | |
| Carrying capacity | 1.Resisting winds and seismic impacts. |
| 2.Bearing heavy snows. | |
| Drawing | 1.Making the design and quotation according to your requirements very soon. |
| 2.Making the quotation according to your drawings. | |
| 3.Giving you the satisfying opinion to your project. |
Ⅰ . Material grade
1.Carbon structural steel: Q235.
2.High-strength structural steel :Q345
3.Special purpose steel t
Ⅱ Quality standard
1.Certificate: ISO9001:2000
2.Code for design of steel structure: GB 50017-2003
3.Technical code of cold-formed thin-wall steel structure: GB50018-2002
4.Load code for the design of building structures. GB 50009-2006
5.Construction quality acceptance of steel: GB50205-2001
6.Code for design, construction and acceptance of high strength for steel structure, JGJ82-2011
7.Technical specification for welding of steel structure building: JGJ 81-2002
8.Technical specification for steel Structures of tall buildings: (JGJ99-98)
Ⅲ . Structure Assembly
1.Steel Framework:
Component: H-Column, H-Beam & C/Z-Purlin
Connection of steel structure method: Welding, Bolted
2.Surface treatment: Painting, Galvanized
3.Roof &Wall: colored steel tiles or colored steel sandwich panel as per request
4.Doors: Rolling or Pushing, as reques .
IV Steel characteristics
1. Environmental protection
2. Higher reliability of steel work
3. Strong quakeproof
4. Higher degree of industrialization
5. Quick to be assembled accurately
6. Larger interior space

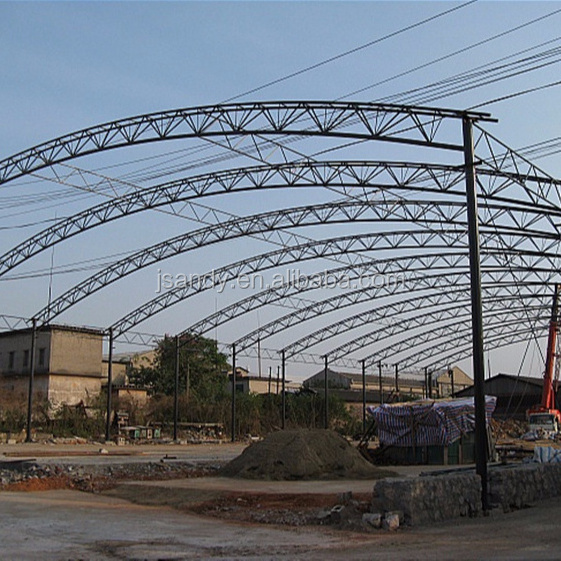

Product picture
New design light steel structure steel pipe truss
