- Product Details
- {{item.text}}
Quick Details
-
Machinery Capacity:
-
100L OR Customerized volume
-
Machinery Function:
-
melting and agitating mixing
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
name:
-
sugar syrup melting pot / sugar melting boiler machine / cooker kettle
-
material:
-
S.S.316L / SUS304
-
volume:
-
customerized
-
mixing type:
-
electrical powered agitator
-
standard:
-
saintary
-
Heating method:
-
Electric Heating Optional
-
heating source:
-
heat conduct oil or steam
Quick Details
-
Weight (KG):
-
100
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
XL
-
Machinery Capacity:
-
100L OR Customerized volume
-
Machinery Function:
-
melting and agitating mixing
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
name:
-
sugar syrup melting pot / sugar melting boiler machine / cooker kettle
-
material:
-
S.S.316L / SUS304
-
volume:
-
customerized
-
mixing type:
-
electrical powered agitator
-
standard:
-
saintary
-
Heating method:
-
Electric Heating Optional
-
heating source:
-
heat conduct oil or steam
Product Description
Factory price supply sugar syrup melting pot / sugar melting boiler machine / cooker kettle
(2) It can also be used in large restaurants or canteens, such as soup, cooking, stewed meat, and porridge.
Product Overview

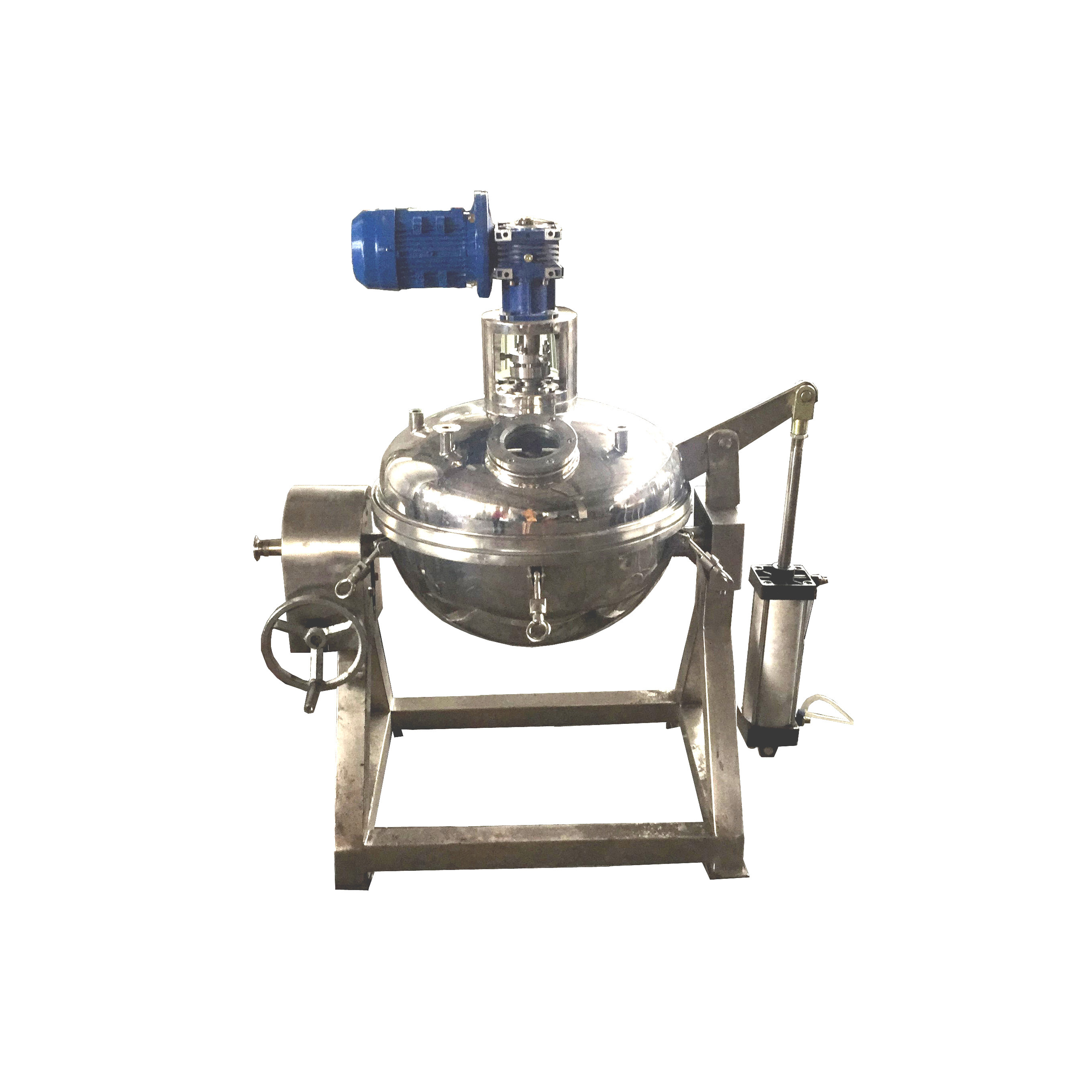

The jacketed kettle consists of a kettle body, a stirrer, a heating jacket, a support and transmission, and a shaft sealing
device. The kettle body is a two-layer structure consisting of a spherical body inside and outside, and the middle layer is heated
by steam.
The Use of the Jacketed Kettle
(1) Widely used in the processing of food such as chemicals, pigments, resins, dairy products, alcohol, confectionery, cakes, preserves, beverages, canned food.
device. The kettle body is a two-layer structure consisting of a spherical body inside and outside, and the middle layer is heated
by steam.
The Use of the Jacketed Kettle
(1) Widely used in the processing of food such as chemicals, pigments, resins, dairy products, alcohol, confectionery, cakes, preserves, beverages, canned food.
(2) It can also be used in large restaurants or canteens, such as soup, cooking, stewed meat, and porridge.
Characteristics of the jacketed kettle
(1) High temperature resistance, corrosion resistance and strong production capacity.
The pot body, agitator, shaft seal, electric heating device, etc. are made of 304 stainless steel.
(2) The heating area is large, the thermal efficiency is high, the heating is uniform, and the boiling time of the liquid material
is short.
The flame temperature can be adjusted arbitrarily, and the maximum temperature is about 300 °C. Compared with similar products,
energy saving and thermal efficiency are increased by about 25%.
(3) Fully burning, smokeless, dust-free, and environmentally friendly.
(4) Sandwich working pressure, motor power, heating power, stirring slurry structure, etc. can be customized according to
customer's special requirements.
(1) High temperature resistance, corrosion resistance and strong production capacity.
The pot body, agitator, shaft seal, electric heating device, etc. are made of 304 stainless steel.
(2) The heating area is large, the thermal efficiency is high, the heating is uniform, and the boiling time of the liquid material
is short.
The flame temperature can be adjusted arbitrarily, and the maximum temperature is about 300 °C. Compared with similar products,
energy saving and thermal efficiency are increased by about 25%.
(3) Fully burning, smokeless, dust-free, and environmentally friendly.
(4) Sandwich working pressure, motor power, heating power, stirring slurry structure, etc. can be customized according to
customer's special requirements.
Technical Parameter
|
Model
|
MY-50
|
MY-100
|
MY-150
|
MY-200
|
MY-300
|
MY-400
|
MY-500
|
|
Equipment volume(L)
|
50
|
100
|
150
|
200
|
300
|
400
|
500
|
|
Evaporating quantity(kg/h)
|
30
|
40
|
50
|
50
|
75
|
100
|
150
|
|
Heating area(m2)
|
0.4
|
0.45
|
0.76
|
1
|
1.15
|
1.44
|
1.9
|
|
Energy consumption(kg/h)
|
33
|
44
|
55
|
72
|
90
|
110
|
165
|
|
Weight(kg)
|
170
|
190
|
210
|
230
|
320
|
360
|
485
|
|
Dimension(mm)
|
720
|
800
|
1350
|
1400
|
1450
|
1500
|
1600
|
|
|
600
|
650
|
660
|
700
|
800
|
850
|
900
|
|
|
830
|
950
|
1000
|
1100
|
1100
|
1140
|
1150
|
Customerized Design
Volume of the tanks can be very flexiable. We can make it from 50L to 500000L
The Tank can also be customerized, you can have it single layer or jacket, with electric heater or with out, with support feet or without. Anti-explosion type or not.
You can let me know your needs, i will let our technician make drawing accordingly.
Project Samples
Packing&Shipping
There are two types of package solutions:
a. wood case package
b. wrapped by black cloth and shipped
wood case package wrapped by black cloth package
