Quick Details
-
Size:
-
12500*2500*1550mm
-
Place of Origin:
-
Shandong, China
-
Product name:
-
flatbed semi trailer 40ft flatbed trailer price
-
Axle:
-
13 Ton Fuwa
-
Tire:
-
12R22.5
-
Suspension:
-
Mechanical Suspension
-
Landing Gear:
-
Standard 28Ton
-
King pin:
-
2"(50mm)or3.5"(90mm) JOST
-
Chamber:
-
6 big chamber
-
Color:
-
Customers Optional
-
Trailer type:
-
3 axles flatbed trailers
-
Twist Locks:
-
12 Lock Positions
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
25001-30000 kg
-
Brand Name:
-
ZF-Trailer
-
Size:
-
12500*2500*1550mm
-
Place of Origin:
-
Shandong, China
-
Product name:
-
flatbed semi trailer 40ft flatbed trailer price
-
Axle:
-
13 Ton Fuwa
-
Tire:
-
12R22.5
-
Suspension:
-
Mechanical Suspension
-
Landing Gear:
-
Standard 28Ton
-
King pin:
-
2"(50mm)or3.5"(90mm) JOST
-
Chamber:
-
6 big chamber
-
Color:
-
Customers Optional
-
Trailer type:
-
3 axles flatbed trailers
-
Twist Locks:
-
12 Lock Positions
Products Description

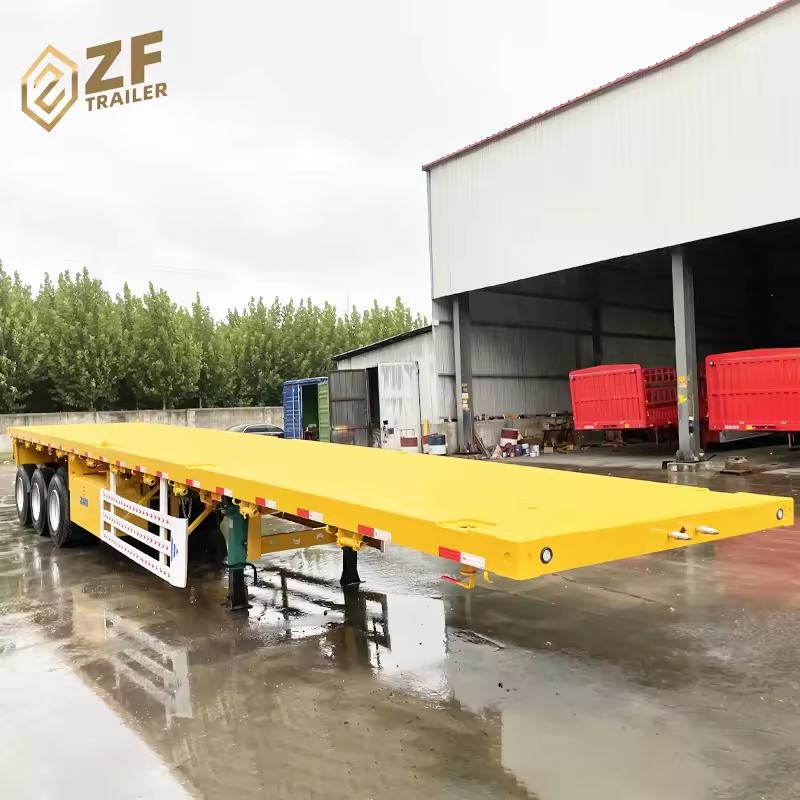

Multi-axles 60 Ton 40 feet 12pcs Flatbed Trailers Headboard Container Trucks Semi Trailer for Sale
3 axle Flatbed semi-trailer has no fence or sidewall on the trailer body, Good quality Q345 cabon steel are used for the main beam,and it is widely used for medium and long-distance freight transportation.
Details Images
The flatbed semi-trailer type walking structure uses high-strength international steel material; the whole trailer has light weight and guarantees its resistance to twisting, shock and bounce, and meets different road carrying capacity.
1. The series of flatbed trailer 3 axle semi-trailer frames are of the beam-type structure, and the longitudinal beams are of straight or gooseneck type. The web height is from 400mm to 550mm, the longitudinal beam is welded by automatic submerged arc welding, the frame is shot peened, the beam is inserted into the stringer and welded.
Product Paramenters
|
Trailer Model
|
|
|
Tri-axles 40ft flatbed flat bed semi truck trailer price for sale
|
|
|||
|
Overall Dimension
(Lx W x H)(mm) |
|
|
12500*2500*1550
|
|
|||
|
Tare Weight(KG)
|
|
|
7350
|
|
|||
|
Loading Weight( KG)
|
|
|
40000-60000
|
|
|||
|
Axle Brand
|
|
|
13Ton Axle FUWA
|
|
|||
|
Axle Number
|
|
|
Three
|
|
|||
|
Suspension system
|
|
|
Common Mechanical Suspension
|
|
|||
|
Steel Spring
|
|
|
10/10/10 leaf spring suspension
|
|
|||
|
The material of Main beam
|
|
|
The height of the beam is 500mm, upper plate is14mm, down plate is 16mm, middle plate is 8mm.
|
|
|||
|
Platform plate
|
|
|
3mm Diamond plate
|
|
|||
|
Container Twist Locker
|
|
|
12pcs container lock
|
|
|||
|
Tire Type and quantity
|
|
|
12R22.5 12units Triangle brand
|
|
|||
|
Traction Pin
|
|
|
50mm (2'')or 90mm(3.5'') JOST
|
|
|||
|
Spare Wheel Bracket
|
|
|
2 pieces
|
|
|||
|
Tool Box
|
|
|
1 Standard
|
|
|||
|
Landing Gear
|
|
|
28 ton, two speed, manual operating, heavy duty landing gear JOST
|
|
|||
|
Brake system
|
|
|
Dual Line braking system, with ABS
|
|
|||
After-sale Service
1: Our company promise a one-year warranty period, during this period, under normal use if there is damage to the accessories, we will provide our customers with free new accessories.
2: Operational problems, technical configuration issues, etc., We will promptly provide feasible solutions for our customers. We are investing in the construction of a number of foreign service department, will be better to serve the global customers.
3: We are serious about after-sales service.
Product packaging
Shipping method: Ro-Ro, Bulk cargo, Container These three modes of transportation, we can provide customers with the most economical semi-trailer transportation plan according to the number of semi-trailers required by customers.
