Quick Details
-
Workpiece thickness:
-
10-60mm
-
Workpiece length:
-
≥100mm
-
Workpiece width:
-
≥50mm
-
Feeding Motor Power:
-
3.7kw
-
Feeding Speed:
-
10-23m/min
-
Air Pressure:
-
0.8Mpa
-
Product name:
-

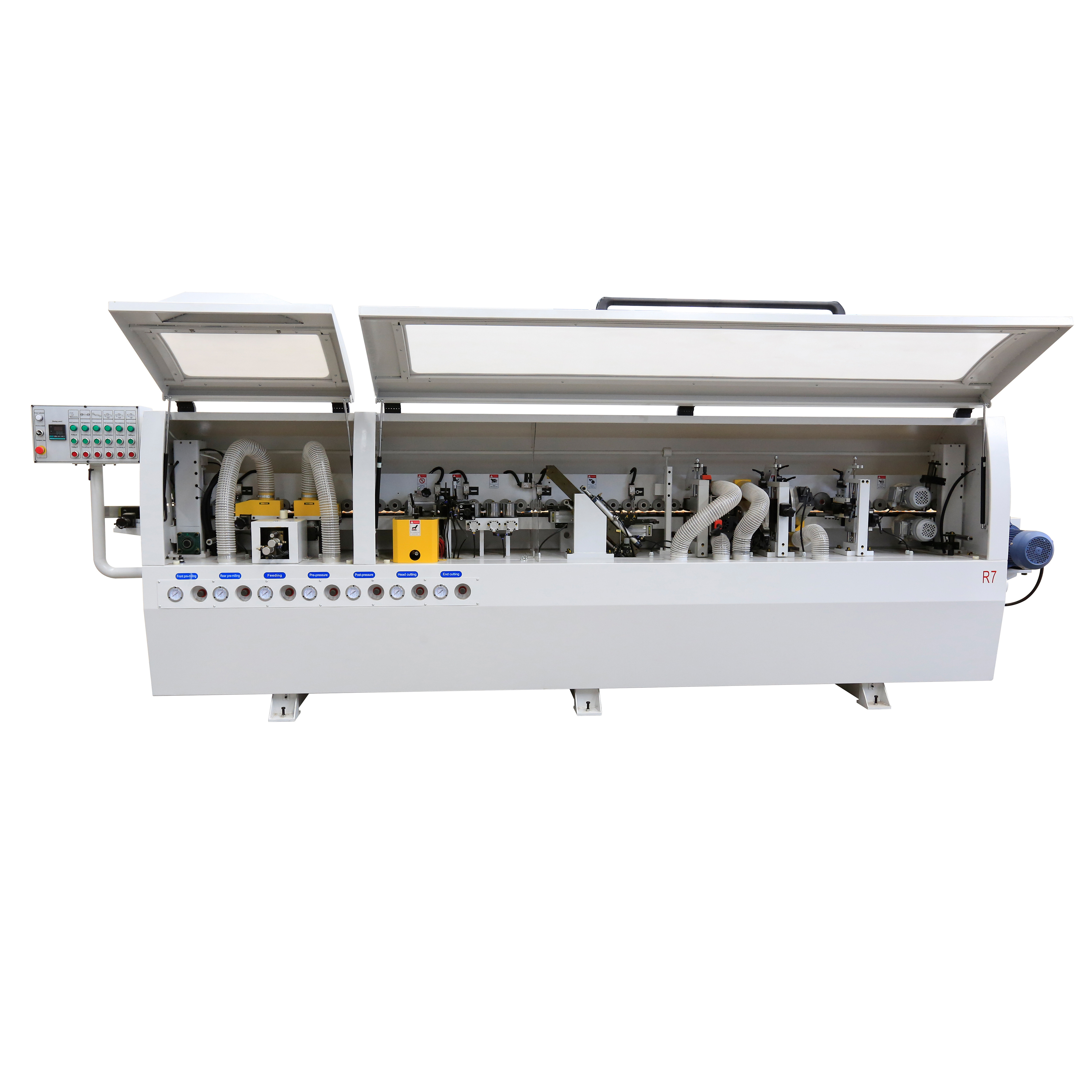

automatic edge banding machine with round trimming
-
Keywords:
-
pre milling automatic edge bander
-
Weight:
-
1870kgs
-
Power:
-
5.5kw
-
After-sales Service Provided:
-
Online support
-
Certification:
-
ce
Quick Details
-
Place of Origin:
-
Shandong, China
-
Banding Tape Thickness:
-
0.4-3mm
-
Banding type width:
-
12-65mm
-
Workpiece thickness:
-
10-60mm
-
Workpiece length:
-
≥100mm
-
Workpiece width:
-
≥50mm
-
Feeding Motor Power:
-
3.7kw
-
Feeding Speed:
-
10-23m/min
-
Air Pressure:
-
0.8Mpa
-
Product name:
-
automatic edge banding machine with round trimming
-
Keywords:
-
pre milling automatic edge bander
-
Weight:
-
1870kgs
-
Power:
-
5.5kw
-
After-sales Service Provided:
-
Online support
-
Certification:
-
ce
|
Specification
|
R7A
|
R6A
|
R5A
|
R4A
|
R3
|
|
Edge Thickness
|
0.4-3mm
|
0.4-3mm
|
0.4-3mm
|
0.4-3mm
|
0.4-3mm
|
|
Edge Width
|
10-60mm
|
10-60mm
|
10-60mm
|
10-60mm
|
10-60mm
|
|
Workpiece Thickness
|
10-60mm
|
10-60mm
|
10-60mm
|
10-60mm
|
10-60mm
|
|
Workpiece Length
|
>=100mm
|
>=100mm
|
>=100mm
|
>=100mm
|
>=100mm
|
|
Workpiece Width
|
>=50mm
|
>=50mm
|
>=50mm
|
>=50mm
|
>=50mm
|
|
Heating Motor
|
1.5kw
|
1.5kw
|
1.5kw
|
1.5kw
|
1.5kw
|
|
Feeding Motor
|
2.2kw
|
2.2kw
|
2.2kw
|
2.2kw
|
2.2kw
|
|
Pre-milling Motor
|
1.5kw*2
|
|
|
|
|
|
Gluing Motor
|
0.37kw
|
0.37kw
|
0.37kw
|
0.37kw
|
0.37kw
|
|
End Trimming Motor
|
0.55kw*2
|
0.55kw*2
|
0.55kw*2
|
0.55kw*2
|
|
|
Rough Trimming Motor
|
0.75kw*2
|
0.75kw*2
|
|
|
|
|
Fine Trimming Motor
|
0.75kw*2
|
0.75kw*2
|
0.75kw*2
|
0.75kw*2
|
0.75kw*2
|
|
Corner Trimming Motor
|
|
|
|
|
|
|
Buffing Motor Motor
|
0.18kw*2
|
0.18kw*2
|
0.18kw*2
|
0.18kw*2
|
0.18kw*2
|
|
Feeding Speed
|
13m/min
|
13m/min
|
13m/min
|
13m/min
|
13m/min
|
|
Air pressure
|
0.7Mpa
|
0.7Mpa
|
0.7Mpa
|
0.7Mpa
|
0.7Mpa
|
|
Overall Dimensions
|
4940*900*1500mm
|
4940*900*1500mm
|
4940*900*1500mm
|
4940*900*1500mm
|
4940*900*1500mm
|
1.Pre-milling equipment with double trimming blades works on the waved effect that is caused by precise sliding table saw.
2.The gluing mechanism adopts a special structure to gelatinize the plates and costing materials unifiormly, ensure a more solid conglutination.
3.End trimming mechanism through a precise guide track movement, adopt automatic tracking and high frequency motor fast cutting structure to ensure the cutting surface smoothly.
3.Rough/Fine trimming mechanism used for repairing the excess edge materials, adopt automatic tracking and high frequency motor fast cutting structure to ensure the trimming plates smoothly.
4.Corner trimming unit is to make the board ending more smooth and aesthetic.
5.Scraping unit for a perfect finishing of the applied edge.
6.The buffing device adopts the board processed by cotton polishing wheel, by end polishing to make a more smooth surface.
Pre-sale services:
* Provide the free consultation of the equipment .
* Provide the standard device and the flow chart.
* According to the clients special requirement, offering the reasonable plan and free design helping to
select the equipment.
* Welcome to visit our factory.
(2)Services during the sales:
* Inspect the machine before leaving the factory.
* Oversea install and debug the equipment.
* Supply the technique support or training for the first-line operator.
(3)After sale services:
* 24 hours online service
* Provide the VIDEO with Install and debug the equipment.
* Provide technical exchanging
