Quick Details
-
Nitrogen Content (%):
-
1
-
Sulphur Content (%):
-
0.001
-
Brand Name:
-
TEENWIN
-
Model Number:
-
TY-PD-3.0
-
Place of Origin:
-
Guangdong, China
-
Calory (J):
-
20800000
-
Raw material:
-
PVC
-
Function:
-
Waste to energy and biofertilizer
-
Advantage:
-
Eco Friendly Portable
-
Operation:
-
24 Hours Automatic Running
-
Capacity:
-
2.5m3
-
Feature:
-
Light weight, simple and easy transport
-
Usage:
-
Waste Treating
-
Service life:
-
More than 8 years
-
Key words:
-
Biogas
Quick Details
-
Application:
-
Cooking Fuel
-
Hydrogen Content (%):
-
1
-
Methane Content (%):
-
68
-
Nitrogen Content (%):
-
1
-
Sulphur Content (%):
-
0.001
-
Brand Name:
-
TEENWIN
-
Model Number:
-
TY-PD-3.0
-
Place of Origin:
-
Guangdong, China
-
Calory (J):
-
20800000
-
Raw material:
-
PVC
-
Function:
-
Waste to energy and biofertilizer
-
Advantage:
-
Eco Friendly Portable
-
Operation:
-
24 Hours Automatic Running
-
Capacity:
-
2.5m3
-
Feature:
-
Light weight, simple and easy transport
-
Usage:
-
Waste Treating
-
Service life:
-
More than 8 years
-
Key words:
-
Biogas
Household biogas digester kit convert organic waste to cooking gas and biofertilizer
Brief introduction

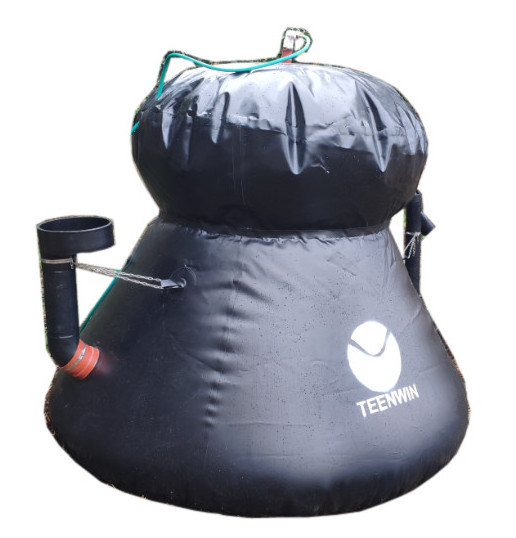

TEENWIN Portable household biogas digester is composed of a membrane digester bag with a gas storage bag combined in one, an inlet use for feeding the fermentation material, and outlet is to overflow the slurry, the digester bag is made by RM-PVC special material, has the characteristics of anti-aging, acid and alkali resistant, ultraviolet-proof.
It is surface mounted and no need for site preparation like digging or heavy construction. Easy to install, installing without any training and can be put into use immediately after installation.
Application
- For home to treat food waste , kitchen waste and garden waste;
- For restaurant to treat the food waste;
- For farm to treat the animal waste,
- It can be connected to the toilet through the pipeline to treat human waste and sewage.
Advantage
- Easy to transportation: All items are protective packaging standardization in carton, easy for transportation, light weight.
- Installation: Modular system, no heavy labor work, normal people can install it.
- Maintenance: Easy
- Safety: Low pressure, anti-UV, longer service life.
Technical Data Sheet
|
SN |
Item |
TY-BD-1.5 |
TY-BD-3.0 |
TY-BD-5.0 |
|
|
1 |
Dimensions(m) |
1.5*1.2 |
2.0*1.5 |
2.5*1.6 |
|
|
2 |
Fermentation capacity(m3) |
1.0 |
1.5 |
3.5 |
|
|
3 |
Biogas storage(m3) |
0.5 |
1.0 |
1.5 |
|
|
4 |
Max. Bio-gas output (m3/d) |
1.0 |
1.5 |
3.5 |
|
|
5 |
Land space(m2) |
3 |
5 |
8 |
|
|
6 |
Inlet and outlet pipe |
PE, 110mm diameter of inlet, 75mm diameter of outlet |
|||
|
7 |
Max. waste Treatment Capacity (kg) |
Food waste |
10 |
15 |
35 |
|
8 |
Pig manure |
24 |
36 |
84 |
|
|
9 |
Cow dung |
30 |
45 |
105 |
|
|
10 |
Chicken manure |
14 |
21 |
49 |
|
|
11 |
Vegetable waste |
30 |
45 |
105 |
|
CE certificate
Installing
Reference case
Related products
|
1 |
Biogas storage bag |
For biogas additional storage |
|
2 |
Biogas stove single burner |
Suitable gas Biogas/NG Pressure(kpa):1.6~12 Heat power 3.25kw Consumption 0.50 to 0.8m3/h Ignition type Pulse Material Stainless steel panel |
|
3 |
Biogas pump |
Power: 20W, 220V, 50Hz Max. Flow: 40L/hour Pressure: 25Kpa Size of connector: ¢10mm |
|
4 |
Dehydrator and Desulfurizer |
For moisture and H2S remove |
|
5 |
Biogas hose with connector |
Biogas hose, Φ10mm, 30 meter, with valve, connector and holding. |
