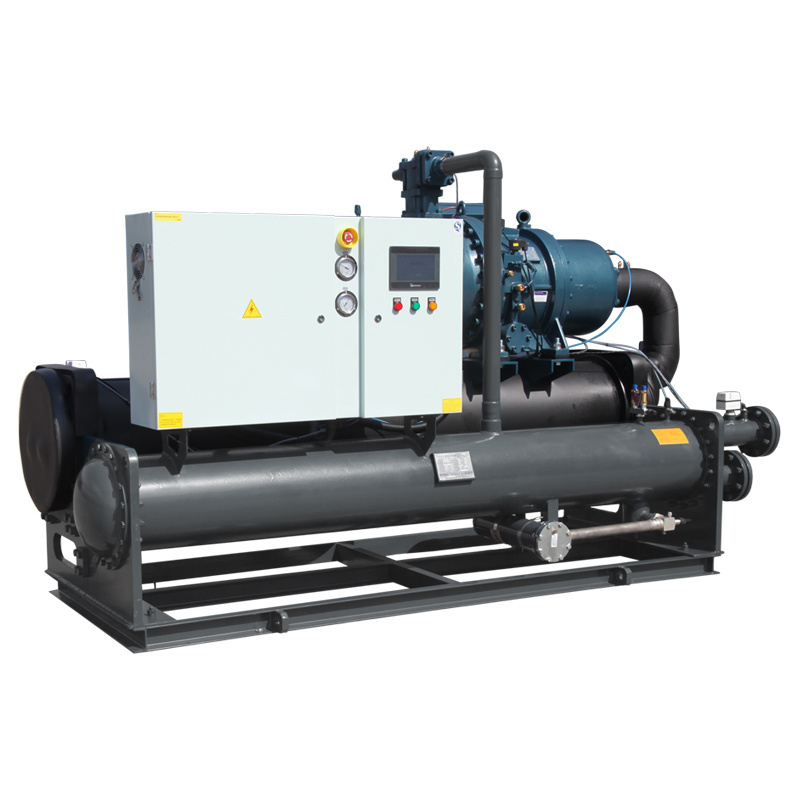

Industrial 100-800kw Screw Compressor Air Conditioner Water Cooled Water Chiller Factory Price

Industrial 100-800kw Screw Compressor Air Conditioner Water Cooled Water Chiller Factory Price

FOB Reference Price: Get Latest Price

≥1 Sets

US $8000

≥2 Sets

US $6000

≥5 Sets

US $4000

≥10 Sets

US $2000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: MST

Voltage:: 380V or Customized

Dimension(L*W*H):: Different models with different sizes

Weight:: 850 KG

Power:: Reference Parameter List

Product name:: Water Cooled Screw Chiller

OEM:: Accept

Water Outlet Temperature:: 7℃ ( 15℃/3℃/0℃/-5℃/-10℃/-20℃/-30℃ )

Temp Control:: 20~5℃

Refrigerants:: R22, R407C or R134A

Compactor:: Twin Screw Compressors

Condenser:: Dry Tubular

Evaporator:: Shell-and-Tube

Expansion Valve:: Electronic Expansion Valve

Quick Details

Core Components:: Compactor, Evaporator, Condenser, Expansion Valve

Condition:: New

Place of Origin:: Jiangsu, China

Brand Name:: MST

Voltage:: 380V or Customized

Dimension(L*W*H):: Different models with different sizes

Weight:: 850 KG

Power:: Reference Parameter List

Product name:: Water Cooled Screw Chiller

OEM:: Accept

Water Outlet Temperature:: 7℃ ( 15℃/3℃/0℃/-5℃/-10℃/-20℃/-30℃ )

Temp Control:: 20~5℃

Refrigerants:: R22, R407C or R134A

Compactor:: Twin Screw Compressors

Condenser:: Dry Tubular

Evaporator:: Shell-and-Tube

Expansion Valve:: Electronic Expansion Valve

Product parameters

Product Name	Water-cooled Screw Chillers
Water Outlet Temperature	7℃ ( 15℃/3℃/0℃/-5℃/-10℃/-20℃/-30℃ )
Cooling Method	Water Cooled
Cooling Capacity	100~2000KW
Temp Control	20~5℃
Refrigerants	R22, R407C or R134A
Compactor	Twin Screw Compressors
Condenser	Dry Tubular
Evaporator	Shell-and-Tube
Expansion Valve	Electronic Expansion Valve, Thermal Expansion Valves(optional)
Safe Scope of Work	Refrigerated Water Inlet Temperature: 9~25℃

Products Description

Compactor

1. Selecting brand-new compressor units,

2. Adhering to standardized design criteria,

3. Configuring according to process requirements, refraining from arbitrary alternative solutions, Strictly controlling product quality,

4. Prohibiting the use of repaired or
second-hand refurbished machines.

Some manufacturers may reduce the configuration or even use refurbished compressors.

Heat Exchanger

1. Screw-type evaporators equipped with heat exchange tubes of 0.7mm/0.8mm/1.0mm wall thickness,

2. Water-cooled condensers fitted with heat exchangers of 1.1mm/1.2mm wall thickness,

3. Choice of tube materials including purple copper, aluminium brass , stainless steel, or titanium, according to requirements.

Many other manufacturers often use condenser heat exchange tubes with wall thickness below 1.1mm, and evaporator heat exchange tubes are frequently 0.6mm, 0.5mm, or 0.35mm.

Expansion Valve

1. Primary configuration of high-precision electronic expansion valve,

2. Achieving accurate liquid supply and adjustable settings,
3. Meeting diverse operational requirements under varying unit conditions,

4. Enhancing energy efficiency while preventing compressor overload,

5. Adaptive control for efficient adjustment, yielding noticeable energy savings,

6. Electronic expansion valve enables
automatic regulation from 10% to 100%.

The majority of manufacturers use thermal expansion valves or capillary tube throttling.

Control System

1. Siemens PLC paired with a 7-inch high-definition touchscreen control panel,

2. Schneider main electrical components as standard, with an option for ABB brand,

3. Comprehensive unit fault alarm and protection functions,

4. Full-range status display and operational
logging capabilities,

5. User-friendly control system with logical and clear interface, Innovative intelligent temperature control, automatic start-stop, and overload protection functions.

Only a few manufacturers utilize Schneider and ABB electrical components.
