Quick Details
-
Coil Number:
-
AUTOTRANSFORMER
-
Place of Origin:
-
Tianjin, China
-
Transformer type:
-
Hub Mount 120V 60Hz AC 24Vac Class 2 Transformer
-
Power:
-
from 5VA to 100VA
-
Mounting methods:
-
open frame, chassis, lead wire, hub mount and plate mount
-
Standards to follow:
-
UL1585/UL5085 or EN61558-1/EN61558-2-6
-
Primary:
-
single/dual or with multi- tap, 120V/208V/240V/277V/480V
-
Secondary:
-
12V or 24V
-
Flambility rating:
-
bobbin and shroud-UL94V0
-
Approval:
-
UL/CUL/CE
-
Insulation class:
-
class B
-
Frequency:
-
60Hz
Quick Details
-
Use:
-
Power
-
Phase:
-
Single
-
Coil Structure:
-
EI,
-
Coil Number:
-
AUTOTRANSFORMER
-
Place of Origin:
-
Tianjin, China
-
Transformer type:
-
Hub Mount 120V 60Hz AC 24Vac Class 2 Transformer
-
Power:
-
from 5VA to 100VA
-
Mounting methods:
-
open frame, chassis, lead wire, hub mount and plate mount
-
Standards to follow:
-
UL1585/UL5085 or EN61558-1/EN61558-2-6
-
Primary:
-
single/dual or with multi- tap, 120V/208V/240V/277V/480V
-
Secondary:
-
12V or 24V
-
Flambility rating:
-
bobbin and shroud-UL94V0
-
Approval:
-
UL/CUL/CE
-
Insulation class:
-
class B
-
Frequency:
-
60Hz
UL CUL CE Hub Mount 120V 60Hz AC 24Vac Class 2 Transformer, 24V ac Transformer
Product Description
What is the Features of UL CUL CE Hub Mount 120V 60Hz AC 24Vac Class 2 Transformer, 24V ac Transformer?
| Product name | Class2 transformer 24Vac, power transformer UL |
| Insulation class | UL 130degree isolation system |
| Primary winding | 120V 208V 240V 277V 480V 577V in parallel or series |
| Physical construction | split bobbin for high insolation and low leakage current |
| Protection | 50VA 60VA 75VA 96VA with circuit breaker, lower voltage with shore circuit protection itself |
| Mounting methods | foot mount, plate mount, hub mount, lead wires, open metal frame etc |
| Operating temperature | -30 to 140F |
| MTBF | 100.000hours@77F |
| UL approval NO | E467797 |
| Production capacity | 10 million pieces per year |
| Frequency | 50/60Hz |
Below are just some of our class 2 transformer data. Please contact us to learn more of our products
What is the Specifications of UL CUL CE Hub Mount 120V 60Hz AC 24Vac Class 2 Transformer, 24V ac Transformer?
Note: Because of limited space here, we can only upload a small portion of our class 2 transformer. Please visit our web or contact us dirictly for more information

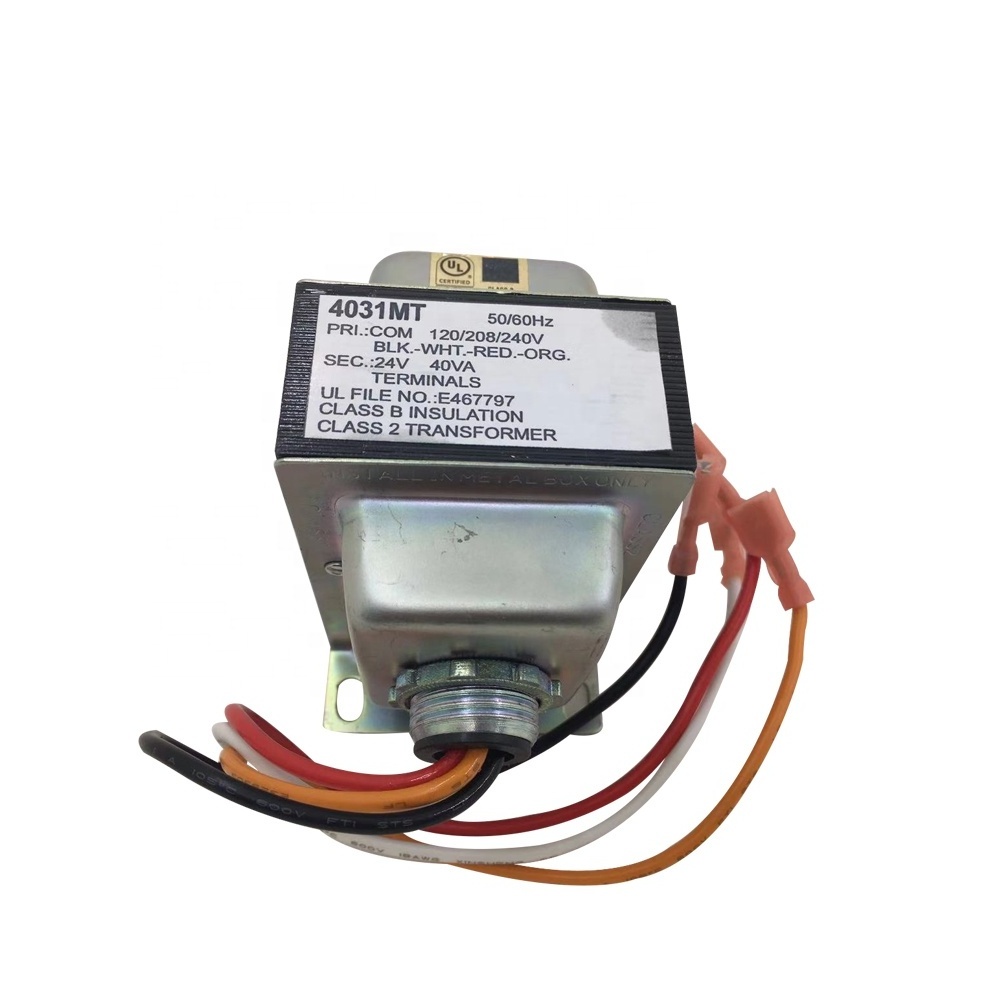

Product Photos(UL CUL CE Hub Mount 120V 60Hz AC 24Vac Class 2 Transformer, 24V ac Transformer)
