- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220V/380V
-
Weight:
-
800 KG
-
Dimension(L*W*H):
-
According to customized requirements
-
Product name:
-
Oxygen Generator Plant Machine Generator Psa For Medical
-
Capacity:
-
3~200m3/h
-
Outlet pressure:
-
0.05-0.8Mpa
-
Intake pressure:
-
>0.6Mpa
-
Dew point:
-
-45℃ - -60℃
-
Purity:
-
93%-95%
-
Material:
-
Carbon Steel&Stainless Steel
-
Application:
-
Oxygen Generator
-
Color:
-
White Or Customized
-
Type:
-
Pressure Swing Adsorption(PSA)
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
CNCD
-
Production Rate:
-
100%
-
Voltage:
-
220V/380V
-
Weight:
-
800 KG
-
Dimension(L*W*H):
-
According to customized requirements
-
Product name:
-
Oxygen Generator Plant Machine Generator Psa For Medical
-
Capacity:
-
3~200m3/h
-
Outlet pressure:
-
0.05-0.8Mpa
-
Intake pressure:
-
>0.6Mpa
-
Dew point:
-
-45℃ - -60℃
-
Purity:
-
93%-95%
-
Material:
-
Carbon Steel&Stainless Steel
-
Application:
-
Oxygen Generator
-
Color:
-
White Or Customized
-
Type:
-
Pressure Swing Adsorption(PSA)

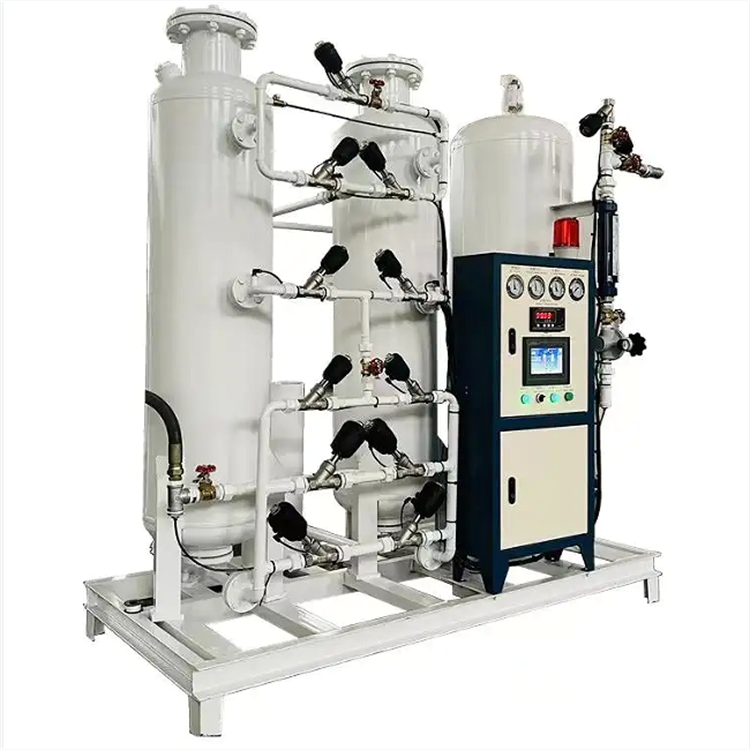

CNCD Factory Supply Oxygen Gas Generation PSA Equipment Medical Hospital Oxygen Generator Oxygen Plants
Product introduction
PSA ( Pressure Swing Adsorption) Technology a revolution in Non Cryogenic Air Separation and Oxygen Generation Technology uses special grade of ZMS ( Zeolite Molecular Sieve). The compressed air is passed through a Twin Tower PSA module interconnected with automatic change over valves. After passing through a Refrigerated Dryer air gets dried. Dried compressed air will now come in contact with bed of Zeolite molecular sieves (ZMS). Zeolite Molecular Sieves are special grade of adsorbent which have the property of preferential adsorption of nitrogen molecules. At a time one tower remains under nitrogen production cycle, whereas the other tower undergoes regeneration which is achieved through depressurization of the tower to atmospheric pressure. The outgoing oxygen gas is sent to a surge vessel where the minimum pressure will be maintained with the help of Back pressure Regulator.
Product parameter:
| Model | Capacity(Nm3/h) | Purity(%) | Dimensions(mm) |
| ZRO-3 | 3 | 90-95 | 1200*1200*1800 |
| ZRO-5 | 5 | 90-95 | 1200*1200*2000 |
| ZRO-10 | 10 | 90-95 | 1600*1500*2150 |
| ZRO-20 | 20 | 90-95 | 1800*1700*2550 |
| ZRO-30 | 30 | 90-95 | 1900*1700*2600 |
| ZRO-50 | 50 | 90-95 | 2100*2000*2750 |
| ZRO-100 | 100 | 90-95 | 5500*1550*3200 |
| ZRO-150 | 150 | 90-95 | 6000*1800*3500 |
| ZRO-200 | 200 | 90-95 | 6600*2000*3700 |
Packing & Delivery
High Purity Gas Air Separation Plant PSA Oxygen Generator:
1.Plywood
2.wooden case
3.Size of the machine according to the selected model set
Our services:
1.Product quality control and delivery time is strictly controlled;
2. Direct manufacturing factory offering competitive price;
3. All the inquiries will be replied within 4 hours;
4. OEM & ODM service are available;
5. Providing first-class after-sales services to the customers.
1.Product quality control and delivery time is strictly controlled;
2. Direct manufacturing factory offering competitive price;
3. All the inquiries will be replied within 4 hours;
4. OEM & ODM service are available;
5. Providing first-class after-sales services to the customers.
Related Products:
FAQ:
1. Can you provide installation and debugging services?
According to your requirements, we can provide you with:
(1) On-site installation and construction services;
(2) On-site technical engineer guidance service;
(3) Online technical guidance service. And we provide you with the "installation, debugging and operation instructions" and other graphic materials and related video and audio materials shipped with the equipment. Considering the cost, we recommend that you use our online technical guidance and audio-graphic guidance materials to complete the equipment installation. 100% of our customers can use the instructions and online guidance to complete the equipment installation.
2. How about the delivery time?
Usually we need about 45-60 work days produce time. 15 days after receiving the full payment.
3. Do you accept product customization?
Of course, we are running our own factory, accept OEM product customization services, you can send your specific requirements to us, we have a professional design engineer to provide you with customized design services.
4. What is the service life of your product?
Designed service life of 10 years;It can be extended according to the actual use situation. Some of our customers have used it for 30 years.
5. Can I put my logo on the product?
We support product painting color and logo customization.Please provide a vector picture or HD picture of LOGO.
