Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Gaoshen
-
Model Number:
-
ZS
-
Application:
-
Transport
-
Product name:
-
2200lbs Heavy duty chain ratchet load binder for 6mm dia chain
-
Usage:
-
For lashing chains
-
Dimension:
-
1/4-5/16, 5/16-3/8, 3/8-1/2, 1/2-5/8
-
Surface:
-
Painted
-
OEM:
-
Yes
-
Process:
-
Froged
-
Size:
-
Customized Sized Acceptable
-
Leadtime:
-
7~15 Days After Order Confirmed
-
Port:
-
ShangHai NingBo Tianjin QingDao
Quick Details
-
Material:
-
Steel
-
Finish:
-
Painted
-
Type:
-
chain binder
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Gaoshen
-
Model Number:
-
ZS
-
Application:
-
Transport
-
Product name:
-
2200lbs Heavy duty chain ratchet load binder for 6mm dia chain
-
Usage:
-
For lashing chains
-
Dimension:
-
1/4-5/16, 5/16-3/8, 3/8-1/2, 1/2-5/8
-
Surface:
-
Painted
-
OEM:
-
Yes
-
Process:
-
Froged
-
Size:
-
Customized Sized Acceptable
-
Leadtime:
-
7~15 Days After Order Confirmed
-
Port:
-
ShangHai NingBo Tianjin QingDao
Product Description
|
Product name
|
Ratchet chain load binder with crab hook
|
|
Material
|
Steel
|
|
Size
|
1/4-5/16(1.18T, 6MM), 5/16-3/8(3T, 8-10MM), 3/8-1/2(4.18T, 10-13MM), 1/2-5/8(5.9T, 13-16MM)
|
|
WLL
|
2200lbs-11000lbs
|
|
Min-Max
Chain size (inch)
|
WLL
(lbs)
|
Proof Load
(lbs)
|
Breaking load
(lbs)
|
Weight
(lbs)
|
Handle Length
(inch)
|
|
1/4-5/16
|
2200
|
4400
|
7800
|
3.52
|
11.42
|
|
5/16-3/8
|
5400
|
10800
|
19000
|
8.37
|
15.43
|
|
3/8-1/2
|
9200
|
18400
|
28000
|
12.11
|
17.24
|
|
1/2-5/8
|
11000
|
22000
|
44000
|
19.7
|
21
|
Detailed Images
Please use this heavy-duty load binder ratchet when you need to secure a load with chains on a flatbed truck, railcar, or trailer.

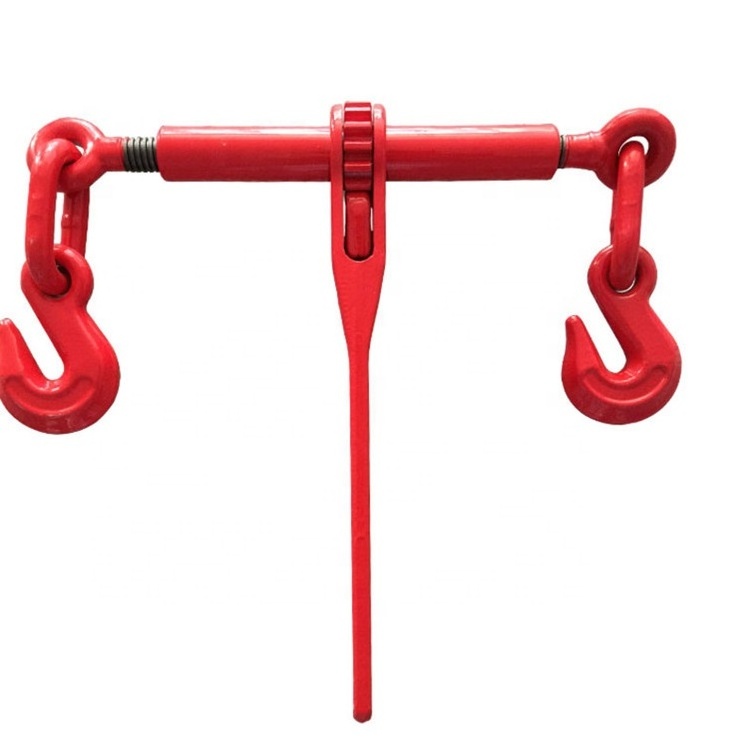

This is the picture of ratchet type load binder.
This load binder uses fast ratchet action to secure and tie down large loads.
The professional quality load binder is designed for maximum leverage. The heavy-duty cam and pawl ratchet makes it faster and easier to tie down and re-secure big loads.
Packing & Delivery
Package: Bags or Cartons or Customized
Port: Shanghai, Ningbo, Qingdao
Delivery Time: 7~15 Days After Order Confirmed
