HSK adapters high precision HSK63A HSK100A ER32 collet chuck spindle tool holder with balance 25000RPM

HSK adapters high precision HSK63A HSK100A ER32 collet chuck spindle tool holder with balance 25000RPM

FOB Reference Price: Get Latest Price

≥1 Pieces

US $28.99

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product name:: HSK adapters high precision HSK63A HSK100A ER32 collet chuck

Material:: 20CrMnTi

MOQ:: 10

Package:: plastic box

Payment:: T/T

Delivery time:: 7-15 Days

Model number:: HSK63A ER32 ER40

Quick Details

Place of Origin:: Shandong, China

Weight (KG):: 0.15

Brand Name:: DAFA

Product name:: HSK adapters high precision HSK63A HSK100A ER32 collet chuck

Material:: 20CrMnTi

MOQ:: 10

Package:: plastic box

Payment:: T/T

Delivery time:: 7-15 Days

Model number:: HSK63A ER32 ER40

Product Description

Product name	HSK adapters high precision HSK63A HSK100A ER32 collet chuck spindle tool holder with balance 25000RPM
Product model	HSK63A-ER32
MOQ	10
Marterial	20CrMnTi
Precision	0.005mm

HSK collet chuck

1. Model: HSK63A ER16 ER20 ER25 ER32 ER40

2.. Material: 20CrMnTi

3. Runout: 0.005mm

4.Usage: use for wooden machine

5. Supply OEM. Also can produce non-standard product.

6. we also produce BT, CAT, NT, ISO ,SK collet chuck

Specification

Order NO.			L	L1	L2	D	d
HSK63A	ER16-75	107	75	49	28	1~10
		ER16-100	132	100	74	28	1~10
		ER16-130	162	130	104	28	1~10
		ER16-160	192	160	134	28	1~10
		ER20-75	107	75	49	34	1~13
		ER20-100	132	100	74	34	1~13
		ER20-130	162	130	104	34	1~13
		ER20-160	192	160	134	34	1~13
		ER25-75	107	75	49	42	3~16
		ER25-100	132	100	74	42	3~16
		ER25-130	162	130	104	42	3~16
		ER25-160	192	160	134	42	3~16
		ER32-75	107	75	49	50	3~20
		ER32-100	132	100	74	50	3~20
		ER32-130	162	130	104	50	3~20
		ER32-160	192	160	134	50	3~20
		ER40-120	152	120	94	63	3~26
		ER40-160	192	160	134	63	3~26
HSK100A	ER16-100	150	100	71	28	1~10
		ER16-160	210	160	131	28	1~10
		ER20-100	150	100	71	34	1~13
		ER20-160	210	160	131	34	1~13
		ER25-100	150	100	71	42	3~16
		ER25-160	210	160	131	42	3~16
		ER32-100	150	100	71	50	3~20
		ER32-160	210	160	131	50	3~20
		ER40-100	150	100	71	63	3~26
		ER40-160	210	160	131	63	3~26

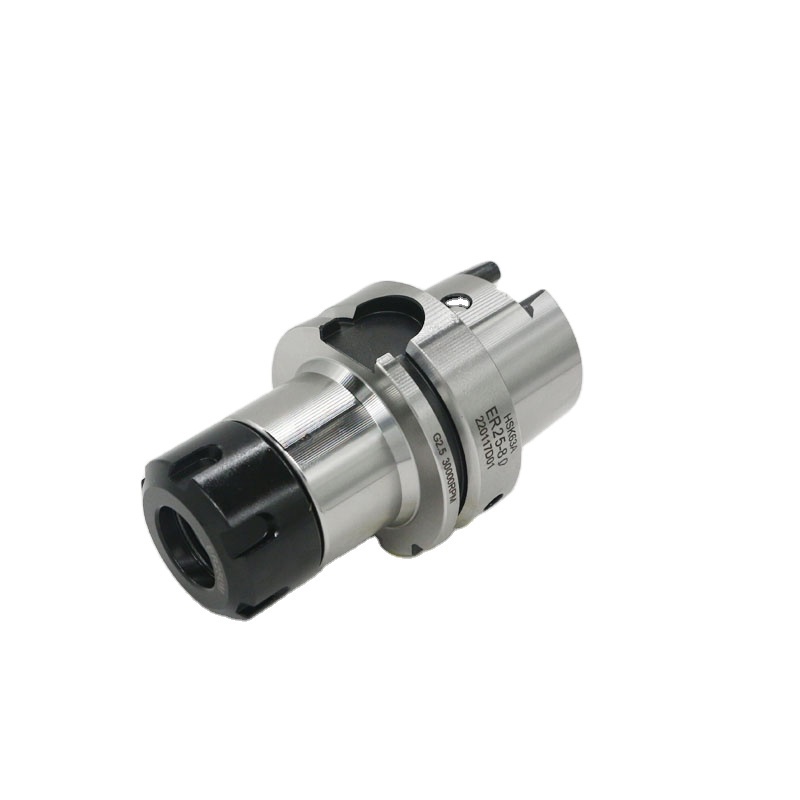

HSK63A collet chuck

DIN69893 HSK collet chuck

HSK63A-ER25, HSK63A-ER32 , HSK63A-ER40 ,length is 80mm, 100mm, 120mm, 150mm etc

Our main product

We are a factory mainly produce collets and collet chucks. We also have vises, live centers, VDI tool holders, reduction sleeve,etc.

about collets, we have ER collets, ER sealed collets, ER tapping collets, 5C collets, DIN6343 collets, ER coolant collets with cooling channels etc. precision about ER collets we have: 0.015mm, 0.008mm and 0.005mm.

Collet chucks: BT ,DIN69871(SK) ,NT, CAT, ISO, HSK ER type, side lock tool holders, face mill tool holders, etc.

We also can produce non-standard product if you can send us samples or drawings.

Welcome to inquire us.
