Quick Details
-
Color Temperature(CCT):
-
3000-4000-5700K
-
Lifespan (hours):
-
74000
-
Working Time (hours):
-
74000
-
Product Weight（kg）:
-
2.4
-
CRI (Ra>):
-
80
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
B1-4FT30-MMK-X
-
Brand Name:
-
Fanxstar
-
Input Voltage(V):
-
AC200-240V
-
Working Lifetime(Hour):
-
74000
-
Lamp Luminous Flux(lm):
-
2800lm-8400lm
-
Application:
-
Corridors /Hallways /Stairwells /Offices /Closets
-
Color:
-
White Color
-
CCT:
-
3000K/4000K/5700K
-
Power Factor:
-
PF>0.95
-
Options:
-
PA14/PA16/923 Terminal blocks
-
Material:
-
Alumimum + PC Cover
-
LED Light Source:
-
2835SMD
-
Mounting method:
-
Surface Mounted
-
Frequency:
-
50/60Hz
-
Size:
-
600mm/1200mm/1500mm
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
140
-
IP Rating:
-
IP40
-
Warranty(Year):
-
5-Year
-
Color Temperature(CCT):
-
3000-4000-5700K
-
Lifespan (hours):
-
74000
-
Working Time (hours):
-
74000
-
Product Weight（kg）:
-
2.4
-
CRI (Ra>):
-
80
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
B1-4FT30-MMK-X
-
Brand Name:
-
Fanxstar
-
Input Voltage(V):
-
AC200-240V
-
Working Lifetime(Hour):
-
74000
-
Lamp Luminous Flux(lm):
-
2800lm-8400lm
-
Application:
-
Corridors /Hallways /Stairwells /Offices /Closets
-
Color:
-
White Color
-
CCT:
-
3000K/4000K/5700K
-
Power Factor:
-
PF>0.95
-
Options:
-
PA14/PA16/923 Terminal blocks
-
Material:
-
Alumimum + PC Cover
-
LED Light Source:
-
2835SMD
-
Mounting method:
-
Surface Mounted
-
Frequency:
-
50/60Hz
-
Size:
-
600mm/1200mm/1500mm

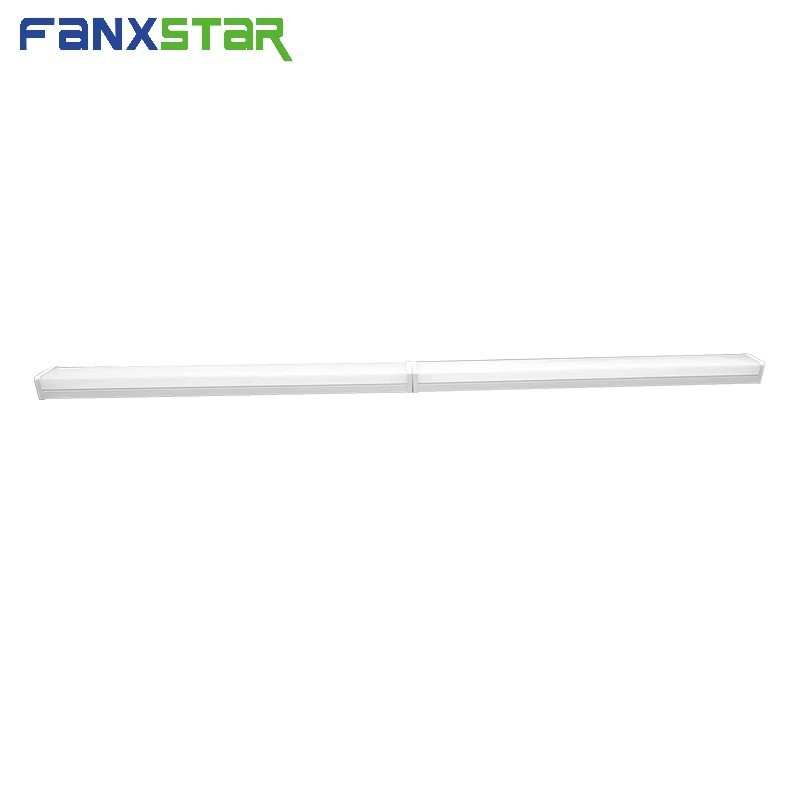

Fanxstar IP40 LED Linkable Batten Aluminum Based Waterproof Light 3CCT Tunable Tubes Low Lumens Lighting Fixtures Batman B1
Details:
FANXSTAR LED Batten fixture Batman B1 Specification
LED Batten Specifications data with 600mm length
|
|
Version |
Item No. |
Description |
MM=Color temp. |
Luminous flux |
|
|
3CCT |
B1-2FT15-MMK-X |
2’ Diffused LED Batten light, Voltage200-240V 50/60Hz, Power 15W, 80CRI 3CCT: 3500K-4000K-5 7 00K |
3000K 4000K 5 7 00K |
115m/w 130lm/w 120lm/w |
LED Batten Specifications data with 1200mm length
|
|
Version |
Item No. |
Description |
MM=Color temp. |
Luminous flux |
|
|
3CCT |
B1-4FT30-MMK-X |
4’ Diffused LED Batten light, Voltage200-240V 50/60Hz, Power 30W, 80CRI 3CCT: 3500K-4000K-5 7 00K |
3000K 4000K 5 7 00K |
126m/w 140lm/w 133lm/w |
LED Batten Specifications data with 1500mm length
|
|
Version |
Item No. |
Description |
MM=Color temp. |
Luminous flux |
|
|
3CCT |
B1-5FT40-MMK-X |
5’ Diffused LED Batten light, Voltage200-240V 50/60Hz, Power 40W, 80CRI 3CCT: 3500K-4000K-5 7 00K |
3000K 4000K 5 7 00K |
130m/w 140lm/w 133lm/w |
