Quick Details
-
Model Number:
-
YK-031109
-
Product name:
-
Steam Hose
-
Material:
-
High Tensile Steel Wire Braided
-
Color:
-
Black
-
Size:
-
Customized Size
-
Working pressure:
-
35bar
-
Working temperature:
-
226℃
-
Length:
-
20m
-
Certification:
-
ISO9001:2015
-
Application:
-
chemical industry, the petroleum industry and the steel industry
-
Feature:
-
Resistant to ultra-high temperature and Pressure
Quick Details
-
Processing Service:
-
Moulding, Cutting
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
YANGKAI
-
Model Number:
-
YK-031109
-
Product name:
-
Steam Hose
-
Material:
-
High Tensile Steel Wire Braided
-
Color:
-
Black
-
Size:
-
Customized Size
-
Working pressure:
-
35bar
-
Working temperature:
-
226℃
-
Length:
-
20m
-
Certification:
-
ISO9001:2015
-
Application:
-
chemical industry, the petroleum industry and the steel industry
-
Feature:
-
Resistant to ultra-high temperature and Pressure

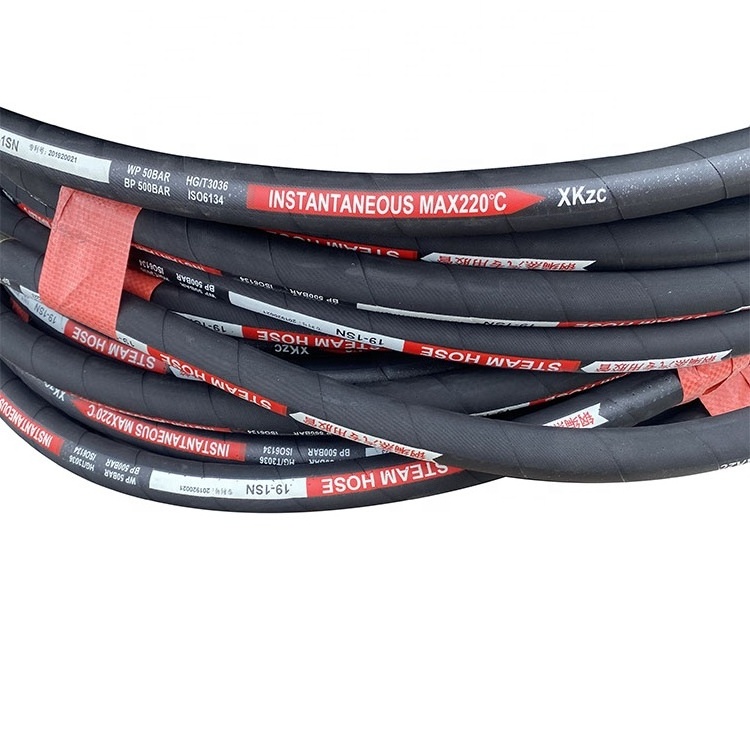

Steam hose & hot water hose
Inner layer : black, smooth EPDM rubber, resistant to superheated steam and water.
Reinforcement: High tensile Wire braid
Outer layer: red or black, smooth EPDM rubber, high temperature resistance, corrosion resistance, wear resistance, anti-aging, micro pinholes.
Inner layer : black, smooth EPDM rubber, resistant to superheated steam and water.
Reinforcement: High tensile Wire braid
Outer layer: red or black, smooth EPDM rubber, high temperature resistance, corrosion resistance, wear resistance, anti-aging, micro pinholes.
Temperature range:
-40°C (-40°F) to +236°C (+156°F)
Application ：
High-pressure steel wire reinforced steam pipe,used in thermal control, fire and other super hot steam. Maximum pressure in industrial applications up to 17 bar or 250 psi
Features：
Features：
Resistant to superheated steam and water, corrosion resistance, wear resistance, anti-aging
|
SIZE
|
ID
|
OD
|
WP
|
WP
|
BP
|
BP
|
Bending Radius
|
Weight
|
Length
|
|||
|
mm
|
inch
|
mm
|
psi
|
bar
|
psi
|
bar
|
mm
|
kg/m
|
m
|
|||
|
10
|
3/8"
|
21
|
250
|
17
|
725
|
50
|
50
|
0.45
|
40
|
|||
|
12
|
1/2"
|
25
|
250
|
17
|
725
|
50
|
60
|
0.53
|
40
|
|||
|
16
|
5/8"
|
28
|
250
|
17
|
725
|
50
|
70
|
0.6
|
40
|
|||
|
19
|
3/4"
|
32
|
250
|
17
|
725
|
50
|
80
|
0.68
|
40
|
|||
|
25
|
1"
|
39
|
250
|
17
|
725
|
50
|
110
|
0.9
|
40
|
|||
|
32
|
1 1/4"
|
46
|
250
|
17
|
725
|
50
|
150
|
1.3
|
40
|
|||
|
38
|
1 1/2"
|
54
|
250
|
17
|
725
|
50
|
180
|
1.6
|
40
|
|||
|
51
|
2"
|
67
|
250
|
17
|
725
|
50
|
245
|
2.2
|
40
|
|||
|
64
|
2 1/2"
|
83
|
250
|
17
|
725
|
50
|
300
|
3.8
|
40
|
|||
|
76
|
3
|
95
|
250
|
17
|
725
|
50
|
400
|
4.6
|
40
|
|||
|
89
|
3 1/2"
|
110
|
250
|
17
|
725
|
50
|
500
|
5.2
|
40
|
|||
|
102
|
4"
|
124
|
250
|
17
|
725
|
50
|
600
|
6.5
|
40
|
|||
