FH41 Series 0.5mm pitch 2.5mm above the board high speed transmission connector for shielded FFCFH41-20S-0.5SH

FOB Reference Price: Get Latest Price

≥500 Pieces

US $0.92

≥1000 Pieces

US $0.86

≥5000 Pieces

US $0.73

≥10000 Pieces

US $0.69

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Japan

Brand Name:: HRS

Model Number:: FH41-20S-0.5SH

Color:: Gray

Connector Type:: Receptacle

Operating Temperature Max:: 105 ℃

Mounting Pitch:: 0.5 mm

Connector Width:: 6.2 mm

Connector Orientation:: Bottom

Operating Temperature Min.:: -40 ℃

Connector Height:: 2.5 mm

Contact Pitch:: 0.5 mm

Recommended FFC/FPC:: Shielded FFC

Rated Current:: 0.5 A

Quick Details

Type:: FPC/FFC

Application:: FPC

Gender:: Female

Place of Origin:: Japan

Brand Name:: HRS

Model Number:: FH41-20S-0.5SH

Color:: Gray

Connector Type:: Receptacle

Operating Temperature Max:: 105 ℃

Mounting Pitch:: 0.5 mm

Connector Width:: 6.2 mm

Connector Orientation:: Bottom

Operating Temperature Min.:: -40 ℃

Connector Height:: 2.5 mm

Contact Pitch:: 0.5 mm

Recommended FFC/FPC:: Shielded FFC

Rated Current:: 0.5 A

Specification

Mfr. Series	FH41-20S-0.5SH
Product Category	FPC connector ffc fpc (flat flex) connectors flexible printed circuit connector
Lead Time	1-3 Working Days
Payment Terms	Paypal, Credit Card, Western Union, T/T, L/C
Shipping Ways	By Express UPS, FedEx, DHL or by sea shipment

Product Description

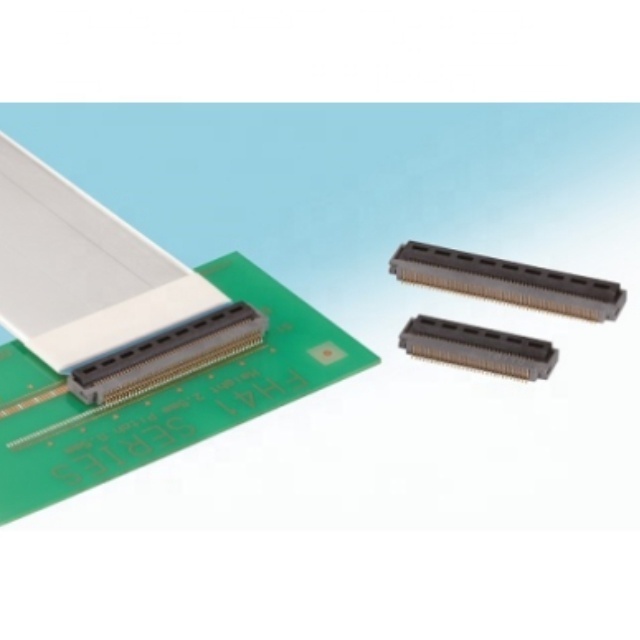

FH41 Series

Features:

0.5mm pitch, 2.5mm above the board, high speed transmission connector for shielded FFC

1.Compatibility with impedance control, shield FFC
2.Differential impedance 100Ω±10%
3.Highly reliable connection, tough structure
4.One-finger operation of the actuator
5.Board placement with automatic equipment
6.Halogen-free *
*As defined by IEC61249-2-21
7.500pcs per reel packing option available (For trial production)
