Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OPY
-
Model Number:
-
HFP4850
-
Input Voltage:
-
48V
-
Output Voltage:
-
110/120/220/230V
-
Output Current:
-
40A
-
Output Frequency:
-
50Hz/ 60Hz
-
Size:
-
426mm*322mm*124mm
-
Certificate:
-
CE
-
Warranty:
-
1 Year
-
Weight:
-
10.8
-
Output voltage waveform:
-
Pure sine wave
-
Battery type:
-
Lead acid or lithium battery
-
PV operating voltage range:
-
60-145Vdc
-
MPPT voltage range:
-
60-115Vdc
-
Maximum output power:
-
4200W
-
PV charging current range (settable):
-
0-80A
-
Display:
-
LCD Screen
-
Protection:
-
Short circuit, reverse connect, under/over voltage, etc
-
Optional function:
-
Mobile phone monitor
-
Product name:
-
96v 15kw hybrid solar 5000w off grid dc to 220v ac power inverter 96 v
Quick Details
-
Output Type:
-
Single, DUAL
-
Type:
-
DC/DC Converters, DC/AC Inverters
-
Inverter Efficiency:
-
92%
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OPY
-
Model Number:
-
HFP4850
-
Input Voltage:
-
48V
-
Output Voltage:
-
110/120/220/230V
-
Output Current:
-
40A
-
Output Frequency:
-
50Hz/ 60Hz
-
Size:
-
426mm*322mm*124mm
-
Certificate:
-
CE
-
Warranty:
-
1 Year
-
Weight:
-
10.8
-
Output voltage waveform:
-
Pure sine wave
-
Battery type:
-
Lead acid or lithium battery
-
PV operating voltage range:
-
60-145Vdc
-
MPPT voltage range:
-
60-115Vdc
-
Maximum output power:
-
4200W
-
PV charging current range (settable):
-
0-80A
-
Display:
-
LCD Screen
-
Protection:
-
Short circuit, reverse connect, under/over voltage, etc
-
Optional function:
-
Mobile phone monitor
-
Product name:
-
96v 15kw hybrid solar 5000w off grid dc to 220v ac power inverter 96 v
Product Description

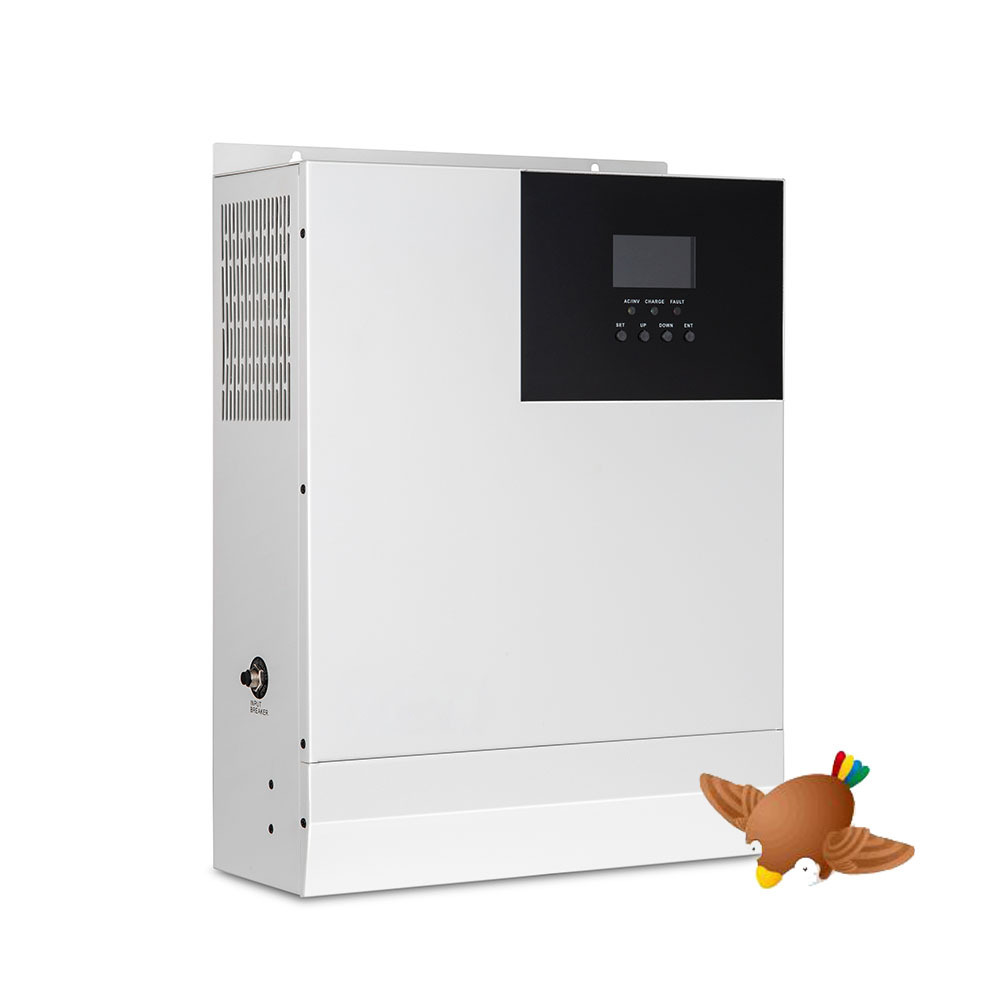

OPY 48V Paralleling Solar Inverter Charger
|
Item
|
HF4830S60
|
HF4850S80
|
|
|
Brand Name
|
OPY or OEM brand
|
|
|
|
Rated input voltage
|
220/230Vac
|
110/120Vac
|
|
|
Output voltage waveform
|
Pure sine wave
|
|
|
|
Rated output power (W)
|
5000W
|
3500W
|
|
|
Peak power
|
10000VA
|
6000VA
|
|
|
Parallel connection
|
1-6 units
|
|
|
|
Max paralleling output power (KW)
|
30KW
|
21KW
|
|
|
Rated battery input voltage
|
48V
(minimum start voltage 44V)
|
|
|
|
Battery type
|
Lead acid or L
ithium battery
|
|
|
|
Charge voltage range
|
40 –58Vdc
|
|
|
|
PV operate voltage range
|
60-145Vdc
|
|
|
|
Max PV output power
|
4200W
|
|
|
|
PV charging current range (settable)
|
0-80A
|
|
|
|
Communication interface
|
USB/RS485(WiFi/GPRS)/Dry node control
|
|
|
|
Dimension (L*W*D)
|
426mm*322mm*124mm
|
|
|
|
Weight (kg)
|
10.8kg
|
|
|
|
Warranty
|
1 year
|
|
|
|
Delivery Day
|
3-15 days upon receipt of deposit
|
|
|
|
Shipping Way
|
Express / Air Shiping / By Sea / By Train
|
|
|
Main Featrures:
1. Parrelleling connection for max 30KW solar system.
2. Split phase output:
1 phase output:
AC 110V or 220V.
2 phase output:
AC 120V or 240V.
3 phase output:
AC 120V or 208V or 398V.
3. Pure sine wave solar inverter.
4. MPPT charger controller inside, efficiency ≥99.9%.
5. Flexible battery charging:
Support both AC and solar dc charging.
6. Two type output voltage:
AC 110V/220V or DC 12/48V
7. Support both lithium and lead acid battery.
8. Perfect protection.
Undervoltage, short-circuit, overloading and backflow protection.
9. Wifi&GPRS available for mobile phone monitor.
Package Detail
1. Plastic bag package per inverter
2. User manual and accessories
3. Paper carton
PS : OEM customized Package is available
Shipping terms
1.Shipping out after finishing manufacture and received payment.2. Delivery time: 3-15 days against quantity and storage.
3. Flexible shipping way for you
A. Express by DHL/UPS/TNT/EMS/FeDex or special lines.
B. Air shipping is available to destination airport.
C. Sea shipping is available to destination sea port.
D. DDP by train or sea shipping to door.
2. User manual and accessories
3. Paper carton
PS : OEM customized Package is available
Shipping terms
1.Shipping out after finishing manufacture and received payment.2. Delivery time: 3-15 days against quantity and storage.
3. Flexible shipping way for you
A. Express by DHL/UPS/TNT/EMS/FeDex or special lines.
B. Air shipping is available to destination airport.
C. Sea shipping is available to destination sea port.
D. DDP by train or sea shipping to door.
Quality Assurance
1. 100% high quality electronic components:
Reject any recycled or regrind components.
2.
1st test
by inspector before mass production:
Ensure each batch is qualified components.
3.
2nd test
by QC to check after assembling:
If fail, return back to worker to repair at once.
4. 3rd test for functions by inspector before package:
Ensure all functions can work normally.
5.
Paper box and carton
to avoid unexpected damage in shipping.
6. 4th test by inspector for package quality before delivery.
