Quick Details
-
Memory Type:
-
DDR3
-
Graphics Card Type:
-
Integrated
-
Chipset:
-
Intel, Intel Bay trail SOC
-
FSB / HT:
-
2.0GHz
-
Brand Name:
-
LingJiang
-
Place of Origin:
-
Guangdong, China
-
CPU:
-
Intel J1900 CPU
-
Memory:
-
1*DDR3
-
SATA:
-
1*SATA,1*M-SATA
-
System:
-
Win7/Win8/Linux/
-
Dimensions:
-
156 *119(mm)
-
Power supply:
-
9-25V DC input
-
Net weight:
-
0.2kg(Including the heatsink)
-
Display:
-
Onbaord 1*VGA/1*DP
Quick Details
-
Maximum Ram Capacity:
-
8GB
-
Application:
-
LAPTOP
-
Form Factor:
-
Other
-
Memory Type:
-
DDR3
-
Graphics Card Type:
-
Integrated
-
Chipset:
-
Intel, Intel Bay trail SOC
-
FSB / HT:
-
2.0GHz
-
Brand Name:
-
LingJiang
-
Place of Origin:
-
Guangdong, China
-
CPU:
-
Intel J1900 CPU
-
Memory:
-
1*DDR3
-
SATA:
-
1*SATA,1*M-SATA
-
System:
-
Win7/Win8/Linux/
-
Dimensions:
-
156 *119(mm)
-
Power supply:
-
9-25V DC input
-
Net weight:
-
0.2kg(Including the heatsink)
-
Display:
-
Onbaord 1*VGA/1*DP
Welcome To Shenzhen Ling Jiang Computer Technology Co., Ltd Store
Bulk Order !!!!!!!
More choose for you here!!!We are factory store.We also support wholesale price for large order. If you need.just contact with us.We can do for you.

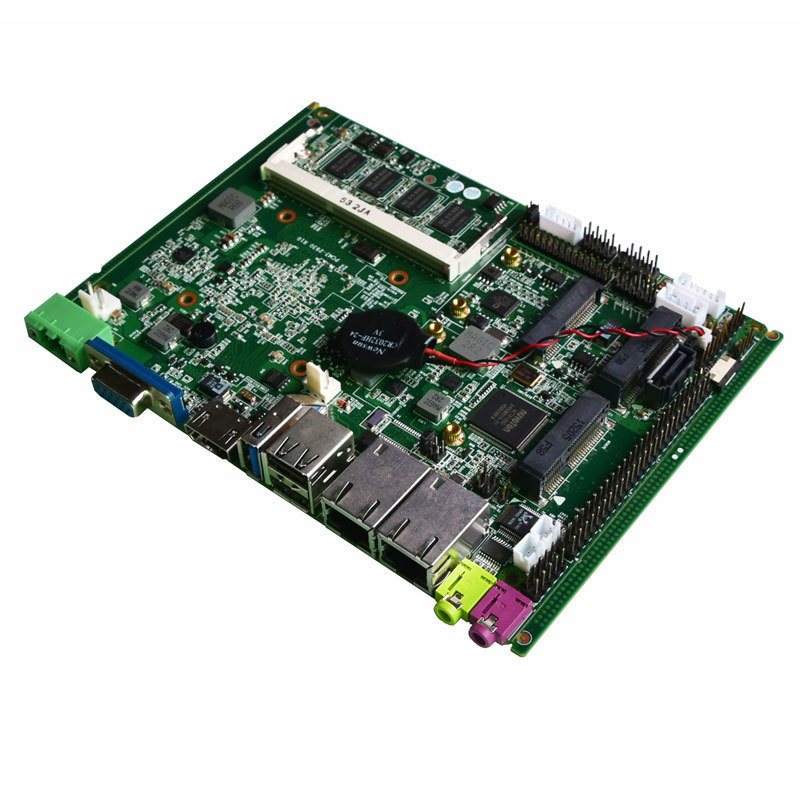

Tablet PC Motherboard Intel Celeron J1900
Quad Core Processor
ordersssssssssss!!!
The motherboard features Intel® Bay Trail chipset, integrated quad-core Intel® Celeron® J1900 processor, Intel® Seventh Generation graphics engine and media codec engine to provide enhanced image processing performance and 3D video performance. And with a wealth of I / O functions, widely used in ATM / KIOSK, POS, game and automation field of Tablet PC and digital signage.
| Features | |
| Model Name | PCM3-N2930 |
| Mechanical | |
| Dimensions | 156×119(mm) |
| Power supply | 9V-25V |
| Watchdog timber | 0-255s |
| Net weight | 0.45kg(Including heatsink) |
| Thermal methods | Fanless |
| Working Temp | Working Temperature:-40℃-80℃.Working Humidity:5% - 95% |
| Storage Temp | Storage Temperature:-40℃-80℃.Storage Humidity:5% - 95% |
| System | |
| CPU |
Intel J1900,2.0GHz,10W
(Default) Intel N2930,1.83G,7.5W |
| Chipset | Intel Bay trail SOC |
| Memory | Onboard 2G/4G,1×DDR3,Expand 2G/4G |
| SATA | 1×SATA,1×M-SATA/SATA |
| System | Win7/Win8/Linux/XP |
| I/O | |
| Lan | Integrate RTL8111G,2×10/100/1000Mbps RJ45 |
| Serial ports | 4×COM(1×RS485/422 PIN,3×RS232 PIN) |
| USB | Onboard 1×USB 3.0/2×USB2.0/Inner 2×USB 2.0(Pin) |
| GPIO | 1×GPIO 8 Bits(4in/4out) |
| PS/2 | 1×KB/MS2 Inner connector |
| Display | Onboard 1×VGA/1×LVDS(18/24 Bits inner) |
| Audio |
Onboard 1×MIC-in,1×Line-out,Integrate sound card ALC662,
2×2W AMP connector (inner) |
| Touch function | 1 (4/5/8 Wire) |
| Others | Fan connector, 2×min-PCIE(Wifi/3G/4G),1×SIM slot |
| Warranty | |
| 1×GPIO 8 Bits(4in/4out) | 12 months |
| Order information | |
| Model Name | PCM3-N2930 |
| Standard Configuration |
J1900 CPU,2.0GHz, SO-DIMM:2G, Onboard 1×VGA,1× LVDS (18 Bits) , 3×USB,2×LAN,2×USB(Inner),1×GPIO(8 Bits),1×SATA, 1×MSATA,2×MPCIE,4×RS 232, 1×PS2/1×SIM slot,AUD Power connector (Pin) , Audio input and output port,Power hole(9V-25V) |
| Standard Accessories | Heat sink, Serial port extension cable,Sata cable,switch,Power connector |
| Optional | N2930 CPU, Wifi/3G/4G,SO-DIMM:2G,SSD:16G/32G/64G |
