- Product Details
- {{item.text}}
Quick Details
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Weight (KG):
-
120 KG
-
Core Components:
-
laser tube
-
tube:
-
EFR Yongli
Quick Details
-
Engraving Area:
-
1300mm*900mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
0-6400mm/min
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Weight (KG):
-
120 KG
-
Core Components:
-
laser tube
-
tube:
-
EFR Yongli
Product Description

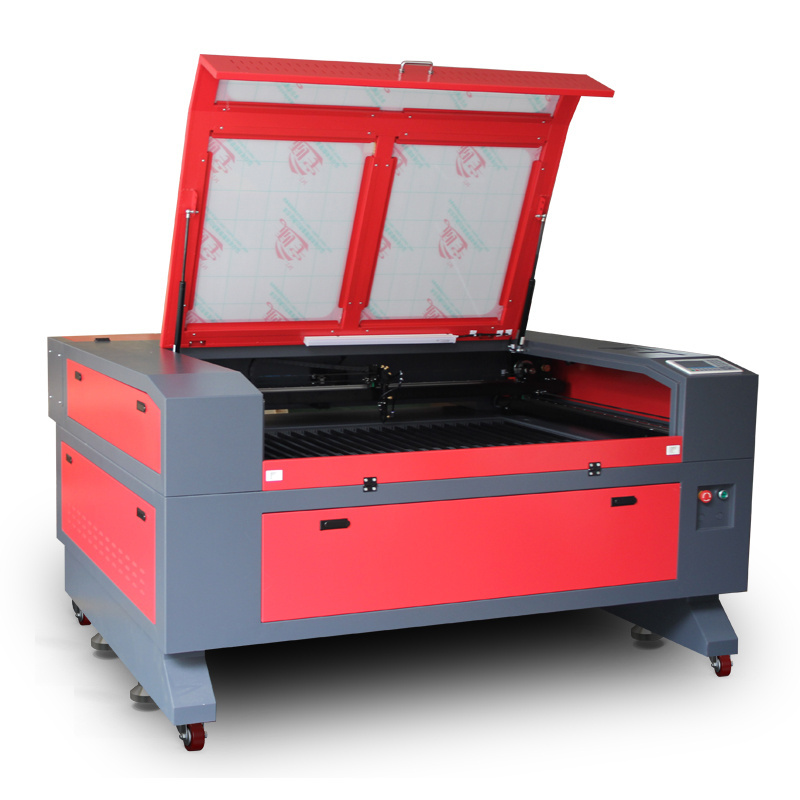

laser engraving cutting machine 1390
Equipped with the protection cover.
Auxiliary blowing system
Double stepper motor which supply strong power for up and down the worktable (worktable can be up and down >25cm)
Adopting the imported laser head
RED LIGHT POSITIONING
FRONT AND BACK ACCESS DOOR
Specially designed 3 acrylic transparent windows
10000 hours life time
Specification
|
item
|
value
|
|
Application
|
Laser Engraving
|
|
Applicable Material
|
Acrylic, Crytal, Glass, Leather, MDF, Metal, Paper, Plastic, Plexiglax, Plywood, Rubber, Stone, Wood
|
|
Engraving Area
|
1300mm*900mm
|
|
Laser Type
|
CO2
|
|
Engraving Speed
|
0-6400mm/min
|
|
Graphic Format Supported
|
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
|
|
Condition
|
New
|
|
CNC or Not
|
Yes
|
|
Cooling Mode
|
WATER COOLING
|
|
Place of Origin
|
China
|
|
|
Shandong
|
|
Laser Source Brand
|
RECI/EFR
|
|
Weight (KG)
|
280KG
|
|
Key Selling Points
|
Easy to Operate
|
|
Warranty
|
2 years
|
|
Applicable Industries
|
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
|
|
Machinery Test Report
|
Provided
|
|
Video outgoing-inspection
|
Provided
|
|
Warranty of core components
|
1 Year
|
|
Mode of Operation
|
Pulsed
|
|
Configuration
|
bench-top
|
|
Feature
|
Water-cooled
|
|
Product name
|
1390 laser engraving cutting machine
|
|
Laser tube type
|
Glass CO2 Laser Tube
|
|
Laser source
|
Sealed Glass Co2 Laser Tube(Reci/EFR/Yongli)
|
|
Working area
|
1300* 900mm
|
|
Power supply
|
220V/50HZ 110V/60HZ
|
|
Cutting Speed
|
0-3600mm/min
|
|
Laser power
|
80W/100W/130W/150W/180W/200W
|
Packing & Delivery
(1)Inner: plastic stretch film and white foam. Plastic stretch film winding equipment for Moisture Resistance. White Foam filling is used to tighten the laser.
(2)Middle: small pieces of wood and screws.
(3)outside: standard export wooden case.
Finally, label the destination country and product number.
