Quick Details
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
6150*2250*3763
-
Machine Weight:
-
8200 kg
-
Bucket capacity:
-
1.0CBM, 1.0CBM for front laoder ,0.3for backhoe
-
Product name:
-
Backhoe Loader
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
Customize
-
Operating weight:
-
8200kg
-
Engine:
-
YC4A105Z-T20
-
Engine power:
-
75KW
-
Wheel Base:
-
2200mm
-
MOQ:
-
1 Set
Quick Details
-
Engine Brand:
-
YUCHAI
-
Power:
-
75 KW
-
Brand Name:
-
MAP
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
6150*2250*3763
-
Machine Weight:
-
8200 kg
-
Bucket capacity:
-
1.0CBM, 1.0CBM for front laoder ,0.3for backhoe
-
Product name:
-
Backhoe Loader
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
Customize
-
Operating weight:
-
8200kg
-
Engine:
-
YC4A105Z-T20
-
Engine power:
-
75KW
-
Wheel Base:
-
2200mm
-
MOQ:
-
1 Set

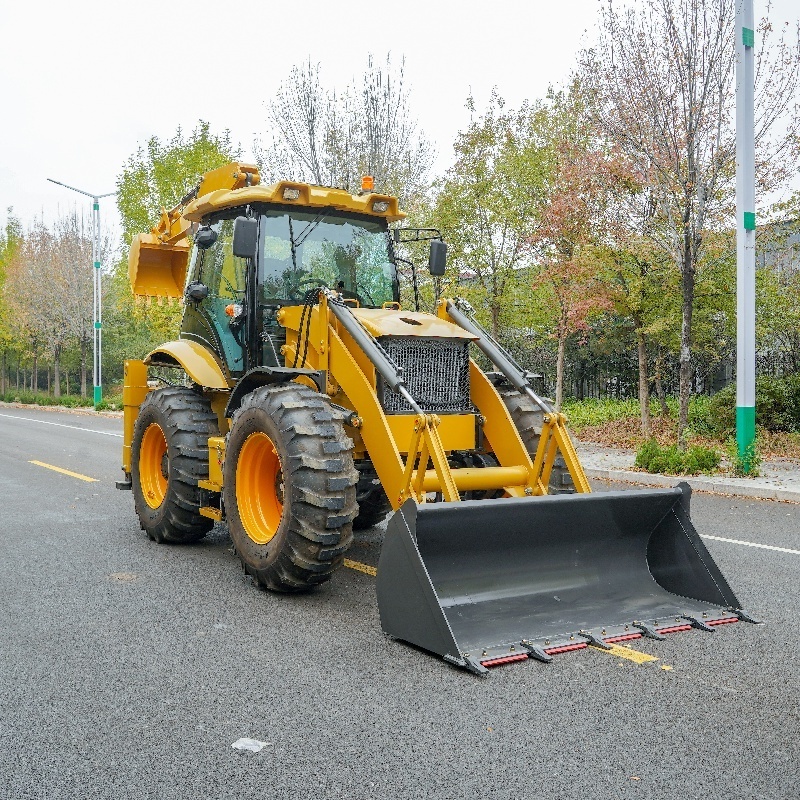

Top Brand Custom Machinery China 388 Mini Backhoe Excavator Wheel Loader 4x4 New Backhoe Loader For Sale
|
1.0 DIMENSION
|
|
|
|
1) Rated loader bucket capacity
|
1.0m3
|
|
|
2) Rated excavator bucket capacity
|
0.3 m3
|
|
|
3) Operating weight
|
7600KG
|
|
|
4) Dimensions (L x W x H)
|
5900X2340X3750mm
|
|
|
5) Wheel base
|
2250mm
|
|
|
6) Cab roof height
|
2790mm
|
|
|
7) Minimum ground clearance
|
310mm
|
|
|
8) Bucket indicator
|
Yes
|
|
|
2.0 ENGINE
|
|
|
|
1) Engine model
|
R4105G
|
|
|
2) Type
|
Diesel Engine(4-Cylinder engine, water cooled 105x125MM)
|
|
|
3) Rated power
|
55KW
|
|
|
4)Total displacement
|
4.33L
|
|
|
5) Min fuel consumption
|
239g/Km.h
|
|
|
6) Max.net torque
|
600N.m
|
|
|
7) Rated revolving speed
|
2200r/min
|
|
|
3.0 TRANSMISSION SYSTEM
|
|
|
|
1) Model
|
CBGJ2040
|
|
|
2)Type
|
power shift, electrical controlled
|
|
|
3)Torque converter type
|
Single Stage or Dual Phase
|
|
|
4) Max. travel speed
|
25km/h
|
|
|
4.0 HYDRAULIC SYSTEM
|
|
|
|
1) System pressure(backhoe)
|
25000Kpa
|
|
|
2) System pressure(loader)
|
2070Kpa
|
|
|
3) Flow rate of excavator system
|
136L/min
|
|
|
4) Flow rate of loading system
|
106L/min
|
|
|
5) Digging force, crowed cylinder
|
36.0KN
|
|
|
6) Hydraulic pump
|
Gear Pump Tandem
|
|
|
7) Bucket self-leveling ability
|
yes
|
|
|
8) Elec. clutch-cut-off switch
|
yes
|
|
|
9) Raising time of full height
|
4.9s
|
|
|
10) Bucket lowering time
|
1.9s
|
|
|
11)Bucket dumping time
|
1.1s
|
|
|
5.0 BRAKES
|
|
|
|
1)Service brake
|
Fully sealed wet disc, free adjust type
|
|
|
2) Parking Brake
|
Electronic control
|
|
|
|
Spring applied, hydraulically released
|
|
|
3) Emergency Brake
|
Electric control
|
|
|
|
Spring applied, hydraulically released
|
|
|
6.0 SERVICE REFILLING CAPACITIES
|
|
|
|
1) Engine Coolant
|
16L
|
|
|
2) Engine Oil
|
8.5L
|
|
|
3) Transmission
|
15L
|
|
|
4) Rear Axle
|
16L
|
|
|
5) Front Axle
|
85L
|
|
|
6) Model of Front Axle
|
MS-2025
|
|
|
7) Model of Rear Axle
|
MT-2075
|
|
|
8) Front Axle
|
Mechanical front wheel drive, limited slip
|
|
|
9) Rear
|
with differential lock elec. Controlled
|
|
|
10) Front Type
|
19.5-24,8PR R4
|
|
|
11) Rear Type
|
12.5/80,10PR
|
|
|
7.0 STEERING SYSTEM
|
|
|
|
1) Type
|
Power Steering
|
|
|
2) Min Turning Radius
|
5682mm
|
|
High capacity Heavy duty Multifuctional Backhoe loaders for
construction use and Mining use.
Reliable engine and axles. Frame designed for high resistance and
efficient load distribution ensuring longerlife.
SPACIOUS CAB
Spacious Cab offers wide range of view. More ergonomically designed handrail and steps for safe and easy entry/exit.
EXCAVATOR TELESCOPIC ARM OPTIONAL
Excavator arm can rotate 270 degree
(customizable 360 degree).
H-TYPE OUTRIGGER
OPTIONAL
SPLAY LEG
High load-bearing hydraulic support
leg, structural stability no slipping.
COMFORTABLE CAB
The cab is provided with full height
glazing all-round, spcious,
comfortable and more open view.
REINFORCED HEAVY
DUTY AXLE
Cast integral weight-increasing axle,
more stable performance and
reliable more open view.
MACHINERY TIRES
4 wheel drive front wheel steering.
EXTRA 3RD HYDRAULIC
PIPELINE FOR FREE
The 3RD Pipeline is reserved in the
back excavating arm for free.
FOLDED SIDE CUT
Folded folding side digging, excavator
adopts slipway form, flexible folding.
Weifang MAP Import & Export Co., Ltd. was established in 2006. Our factory with staff number of 100 persons, among them 20 are technical engineers,20 are professional sales persons and after-sales service persons. We have been set up our own research institute.
We are manufacturer for site dumper wheel loaders backhoe loader disc mowers tractor with front end loaders and etc.
We have excellent teams who focus on product development &design, quality control & inspection and company running. In order to supply the satisfactory products and services, we have built a modern quality management system which is in strict accordance with international standards.
Will continue to take high quality, low cost and globalization as its strategic goals, integrate innovation, and create a world-class brand and the world's most competitive engineering machinery, agricultural equipment manufacturing base.
Now the production capacity of our factory is 1000 units per year. At present, some of products have passsed CE certification and ISO9001 quality system.
We have had a reliable reputation among our customers because of our professional services, quality products and competitive prices. We warmly welcome customers from at home and abroad to cooperate with us. We are looking forward to receiving your inquiries.
1.How can I place order?
A: You can contact us by email about your order details, or place order on line.
2.How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T or start order from Alibaba trade assurance.
3.Are you factory supplier?
A: Yes, we are real factory supplier for over 17 years, own a super technical team to serve adjusting design for customers.
4.Which brand engine do you have for site dumpers?
A: We company choose good quality engine for site dumpers, Changchai, Xichai, Weichai Power engine/ cummins engine/ Deutz diesel engine and so on optional.
5.What's the order procedure?
A: First we discuss order details, production details by email or TM. Then we issue you a Pl for your confirmation. You will be requested to do prepaid full payment or deposit before we go into production. After we get the deposit, we start to process the order. We usually need 7-15 days if we don't have the iterms in stock. Before production has been finished, we will contact you for shipment dletails, and the balance payment. After payment has been settled. we start to prepare the shipment for you.
More details please ask us online or send inquiry to us, we will answer first
time.
