Quick Details
-
Dimension(L*W*H):
-
720*430*300mm
-
Weight (KG):
-
26
-
Power (kW):
-
0.37
-
Keywords:
-
saw blade grinding machine
-
Max sharping diameter:
-
80-500mm
-
Grinding wheel size:
-
125*32mm
-
Adjust angle:
-
±20 degree
-
Center plate angle:
-
±30 degree
-
Speed:
-
2850r/min
-
Function:
-
blade sharpening
-
Material:
-
hard alloy
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Online support
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
NEWEEK
-
Voltage:
-
220v
-
Dimension(L*W*H):
-
720*430*300mm
-
Weight (KG):
-
26
-
Power (kW):
-
0.37
-
Keywords:
-
saw blade grinding machine
-
Max sharping diameter:
-
80-500mm
-
Grinding wheel size:
-
125*32mm
-
Adjust angle:
-
±20 degree
-
Center plate angle:
-
±30 degree
-
Speed:
-
2850r/min
-
Function:
-
blade sharpening
-
Material:
-
hard alloy
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Online support
Product Description

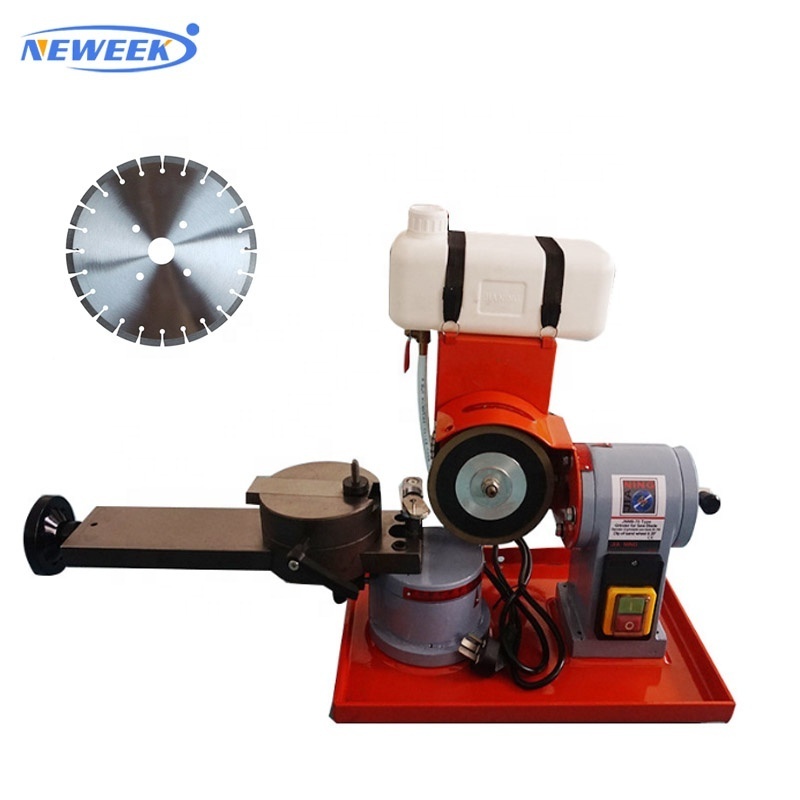

Circle saw blade grinding machine
This circle saw blade grinding machine is designed for grinding carbide saw blades, suit for all kinds of carbide saw blades. It is made with adjustable annular pallet, it can maximum hold knob teeth or other grinding parts, with positioning pins, according to the diameter and size of the teeth of the saw blade, adjust to the best position, according to the size of the blade diameter can adjusted the blades in the best position, pallet with rotary table ensured the sharpening original angles or change it.
Specification
|
Model
|
WM 70
|
Stipulation
|
125*10*32mm
|
|
Angle of grinding blade
|
±20°
|
Voltage
|
110/220v
|
|
Angle of rotation frame
|
L30°R45°
|
Power
|
250/370w (option)
|
|
Diameter of saw
|
80-700mm
|
Revolution
|
2850r/min
|
|
Dimension
|
430*430*335mm
|
Weight
|
25kg
|
