Quick Details
-
Brand Name:
-
Caring
-
Model Number:
-
YL100-3000R-2P
-
Frequency:
-
50/60HZ
-
Certification:
-
CCC,ce,ISO9001
-
Power:
-
3kW
-
Voltage:
-
220v
-
QT of capacitance:
-
2
-
Current:
-
17.2A
-
Speed:
-
2850-3500r/min
-
Flatwise ground height:
-
100mm
-
Bearing diameter:
-
24mm
-
Expose length of bearing:
-
60mm
-
Application:
-
General Machinery
Quick Details
-
AC Voltage:
-
220v
-
Warranty:
-
1 year
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Caring
-
Model Number:
-
YL100-3000R-2P
-
Frequency:
-
50/60HZ
-
Certification:
-
CCC,ce,ISO9001
-
Power:
-
3kW
-
Voltage:
-
220v
-
QT of capacitance:
-
2
-
Current:
-
17.2A
-
Speed:
-
2850-3500r/min
-
Flatwise ground height:
-
100mm
-
Bearing diameter:
-
24mm
-
Expose length of bearing:
-
60mm
-
Application:
-
General Machinery

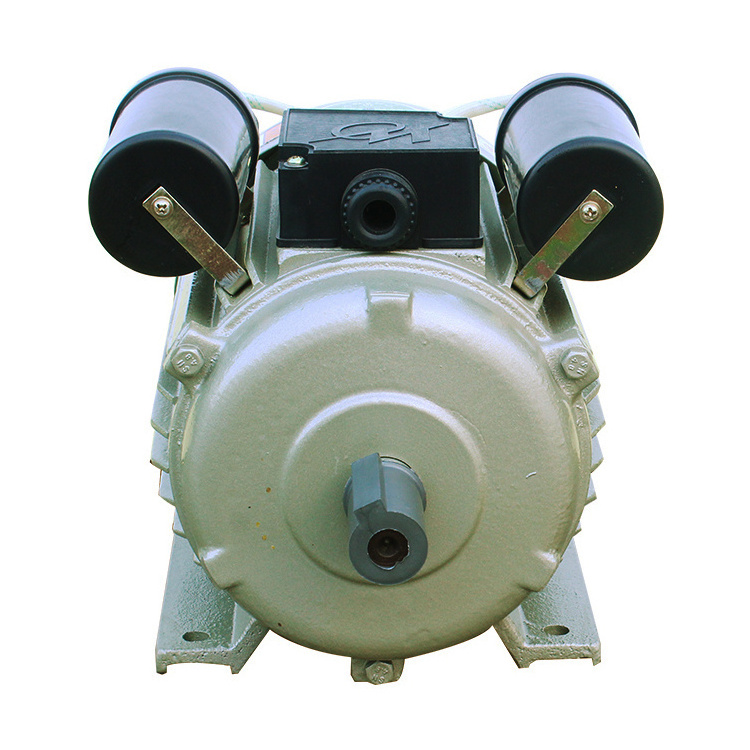

High quality CE YL series 2.3 kW~7.5 kW 4hp 100mm frame 24mm shaft diameter Electric Dual-value capacitor asynchronous motor
1.Caring has hundreds of intelligent processing equipment.
2.Caring has passed the ISO9001 management system certification.Electric motor obtains the corresponding CCC and CE certificate.
3.
Caring
Has won more than 30 national technology patents and several provincial honors.cutting pump gains national invention patents.
Single-phase ordinary motor of YL100 2-pole (2800 rpm) series has 2300W, 2600W, 3000W, 3500W models. Stator, rotor, shaft, bearing, centrifugal switch and other key parts are selected high-quality large-scale products, using 100% pure copper core winding, strictly in accordance with the national standard process manufacturing, power is not substandard, full horsepower, strong power, stable performance, durable!
Parameters of Matching Motor for Commonly Used Equipment
| Number | Equipment | Out put (Kw) | Speed (r/min) | Number | Equipment | Out put (Kw) | Speed (r/min) |
|
1 |
Rice beater | 2.2 or 3.0 | 2800 | 7 | Shaffcutter | Ample power 3.0 | 2800 |
| 2 | Bench saw | 1.5 or 2.2 | 2800 | 8 | Sucking grain machine |
3.0 |
1400 |
| 3 | Dough mixer | 2.2 or 3.0 | 1400 | 9 | Rolling shutter | 2.2 | 1400 |
| 4 | Car washer | 2.2 or 3.0 | 1400 | 10 | Cutting machine | 2.2 | 2800 |
| 5 | Pesticide sprayer | 2.2 or 3.0 | 1400 | 11 | Corn grinder | 0.75 | 2800 |
| 6 | Shredding machine | 2.2 or 3.0 | 2800 | 12 | Air compressor | 2.2 | 2800 |
1.Seiko bearings
Antirust and moistureproof abrasion resistance, high-speed operation of the machine is still smoothly and quiet
2.High-quality stator and rotor
High quality cold rolled silicon steel sheet,high hardness ,strong power high efficiency and long service life,shaft with high frequency quenching
3.High quality lacquer surface
Pure high quality paint ,360 degree protection motor ,cast iron barrel, strong and durable.
4.Pure copper core
Pure copper core/machine winding, strong binding, winding using F-grade oxygen-free copper wire, high temperature resistance, long life, not easy to damage, the ordinary enameled wire is not compared with it.
Other Types of Intelligent Motor
| Model | Out put | Voltage | Frequency | QT of capacitance | Current | Speed | weight | |
| Kw | Hp | |||||||
| YL90-750R-4P | 0.75 | 1 | 220v | 50HZ | 2 | 5.1A | 1400r/min | 17kg |
| YL90-1100R-4P | 1.1 | 1.5 | 220v | 50HZ | 2 | 7.1A | 1400r/min | 18kg |
| YL90-1500R-4P | 1.5 | 2 | 220v | 50HZ | 2 | 9.44A | 1400r/min | 20kg |
| YL90-1800R-4P | 1.8 | 2.5 | 220v | 50HZ | 2 | 11.3A | 1400r/min | 23kg |
| YL90-750R-2P | 0.75 | 1 | 220v | 50HZ | 2 | 5.1A | 2800r/min | 16kg |
| YL90-1100R-2P | 1.1 | 1.5 | 220v | 50HZ | 2 | 7.1A | 2800r/min | 17kg |
| YL90-1600R-2P | 1.6 | 2 | 220v | 50HZ | 2 | 9.44A | 2800r/min | 29kg |
| YL90-1800R-2P | 1.8 | 2.5 | 220v | 50HZ | 2 | 11.3A | 2800r/min | 21kg |
| YL90-2200R-2P | 2.2 | 3 | 220v | 50HZ | 2 | 13.6A | 2800r/min | 22kg |
| YL100-2300R-2P | 2.3 | 3 | 220v | 50HZ | 2 | 13.9A | 2800r/min | 26kg |
| YL100-2600R-2P | 2.6 | 3.5 | 220v | 50HZ | 2 | 15.8A | 2800r/min | 27kg |
| YL100-3000R-2P | 3 | 4 | 220v | 50HZ | 2 | 17.2A | 2800r/min | 28kg |
| YL100-3500R-2P | 3.5 | 4.8 | 220v | 50HZ | 2 | 19.8A | 2800r/min | 31kg |
| YL100-2200R-4P | 2.2 | 3 | 220v | 50HZ | 2 | 13.6A | 1400r/min | 31kg |
| YL100-3000R-4P | 3 | 4 | 220v | 50HZ | 2 | 17.2A | 1400r/min | 33kg |
Tips:
1.Notice:above the every model has corresponding electric motor(with flange plate)
If need to purchase the above model or have any other requirement,please seek advice from custom service; The parameter of technology are updated at anytime.
Warning
Please confim the machine earthing before operation and connecting the electrical leakage protector
Motor with thermal protector,in order to ensure the safty of operation when it stops automatically,it is nacessary to cut off the power supply.
