Quick Details
-
Brand Name:
-
CB
-
Model Number:
-
YAW-3000
-
Level:
-
1
-
Max testing force:
-
3000kN
-
Compression space:
-
340mm
-
relative error of the test force:
-
Within±1%
-
Piston stroke:
-
80mm
-
Size(host):
-
750*500*1500(mm)
-
Upper compression platen dimensions:
-
265*265(mm)
-
Lower compression platen dimensions:
-
360*285(mm)
-
Weight:
-
1640
Quick Details
-
Warranty:
-
1 year
-
Power:
-
Hydraulic
-
Place of Origin:
-
Shandong(mainland)
-
Brand Name:
-
CB
-
Model Number:
-
YAW-3000
-
Level:
-
1
-
Max testing force:
-
3000kN
-
Compression space:
-
340mm
-
relative error of the test force:
-
Within±1%
-
Piston stroke:
-
80mm
-
Size(host):
-
750*500*1500(mm)
-
Upper compression platen dimensions:
-
265*265(mm)
-
Lower compression platen dimensions:
-
360*285(mm)
-
Weight:
-
1640

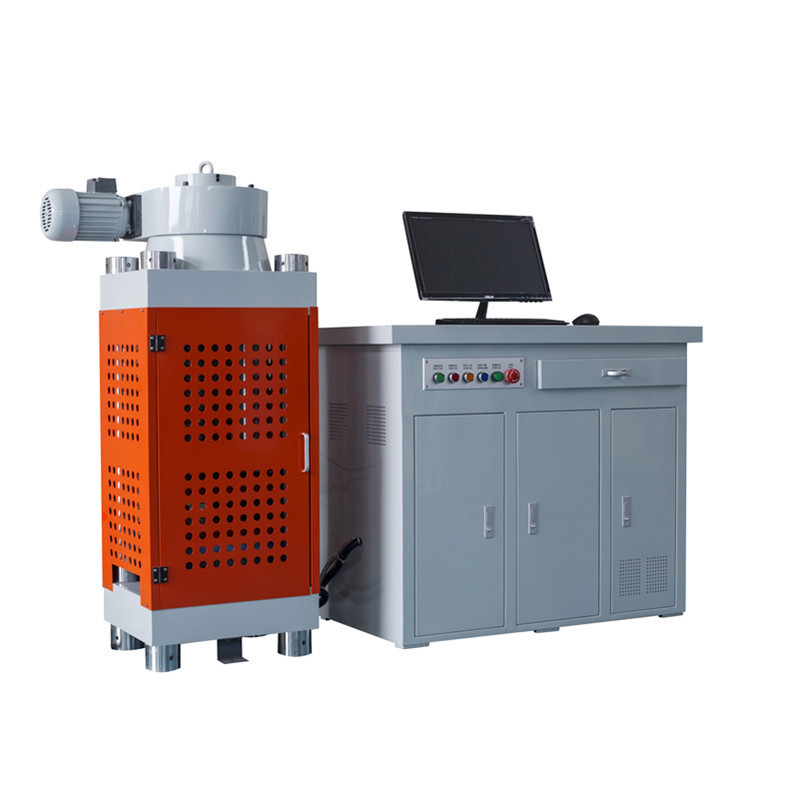

Appearance
Instructions
This electro-hydraulic servo compression testing machine( YAW-300 ) is driven by the hydraulic power source. The electro-hydraulic servo control technology, computer data collection and processing can realize the closed loop control and automatic detection of high-precision materials testing equipment. This machine is composed of the testing host, oil source (hydraulic power source), measurement and control system, as well as the test instruments of four parts, its max test force can reach to 300 kn, and the precision is better than that of grade 1.
This type of machine can carry out load rate setting and satisfy the corresponding national standard. The loading rate control index shall carry the testing of compressive strength, bending test for cement, concrete, etc civil engneering materials under the rated testing force, which has the founctions of loading, time and testing curve dynamic display as well as timely controlled and max force holding.
It is a host oil source separation structure and suitable for the compressive test of cement and concrete. With proper clamps and measuring devices, it can meet the requirements of split tensile test, flexural test and static compression elastic modulus test of concrete.
The testing machine and accessories in line with the GB/T2611, GB/T17671, GB/T16826, GB/T50081 standard requirements.
Parameters
| Level | 1 |
|
Maximun load |
3000KN |
| Relative error of the indicator | Within ±1% |
| Upper compression plate size | 265*265(mm) |
| Testing range | 1%-100 %FS |
| Lower c ompression plate size | 360*285 (mm) |
| Piston stroke | 80mm |
| Size(host) | 75*50*150 (mm) |
| Compression space | 340mm |
| Cabinet size | 110*55*90 (mm) |
| Power | 2.0kW |
| Weight | 1640kg |
1.Response within 24 hours for any problem.
2.Lifelong after sales service & maintenance.
3.Our products are equipped with more than 100 different sample holders for users to choose, which can meet the testing requirements of more than 1000 kinds of materials.
4.Installation and training service is available.
5.According to different user materials, Chuanbai also provides customized services to meet different users' needs
Jinan Chuanbai Instrument Equipment Co., Ltd. is located in Jinan, Shandong, a national testing machine production base. It is a high-tech production enterprise that integrates scientific research, development and development. Since its establishment, the company has been devoting itself to the research and development of mechanical test instruments, and its leading products. Screen display type hydraulic universal testing machine, electro-hydraulic servo universal testing machine, electronic tensile testing machine, microcomputer controlled electronic universal testing machine, artificial board universal testing machine, semi-automatic (automatic) impact testing machine, plastic and rubber non-metal testing machine , Electronic spring tension and pressure testing machine, geogrid detection equipment and other types of products. In recent years, the company closely follows the development of international material testing machines and testing technology, boldly adopts high technology, attracts high-tech professionals, increases investment in technology research and development, and devotes itself to improving the intrinsic quality of the instrument, keeping improving, being honest and trustworthy, and enabling each series to be tested. The equipment has been greatly developed, and its product performance and use have occupied a leading position in the testing machine industry.
1. Are you a manufacturer?
Yes, we are the largest manufacturer of universal tensile testing machines and have a history of more than 11 years.
2. Do you have after-sales service?
In general, every machine shipped from our factory provides 12 months of free maintenance. If your machine does not work properly, you can contact us and we will try our best to communicate with you via email or skype video chat. We promise we will reply to you within 24 hours and with 3 Within a working day to provide solutions.
3. What is the delivery deadline?
Most of the time, we have inventory at the factory. If not, the delivery time is usually 15 to 20 days after receiving the payment. If you need it urgently, we can consider making special arrangements for you.
4. What kind of packaging and transportation do you use?
Under normal circumstances, we will use ordinary orders such as DHL, Fedex, UPS TNT transport. Large orders will use aviation or shipping.
5. Can the device be customized?
We can not only provide standard machines, but we can also provide customized machines according to your needs.At the same time, we can also place your trademark on the machine.
6. What kind of packaging do you use?
Plastic sealed and sturdy wooden box.
7. What payment methods do you support?
Paypal, T/T, Western Union and Escow.
