Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SZCMMOTOR
-
Model Number:
-
JGB37-520
-
Torque:
-
Max 35kg.cm
-
Motor type:
-
Dc Brush Gear Motor
-
Product Name:
-

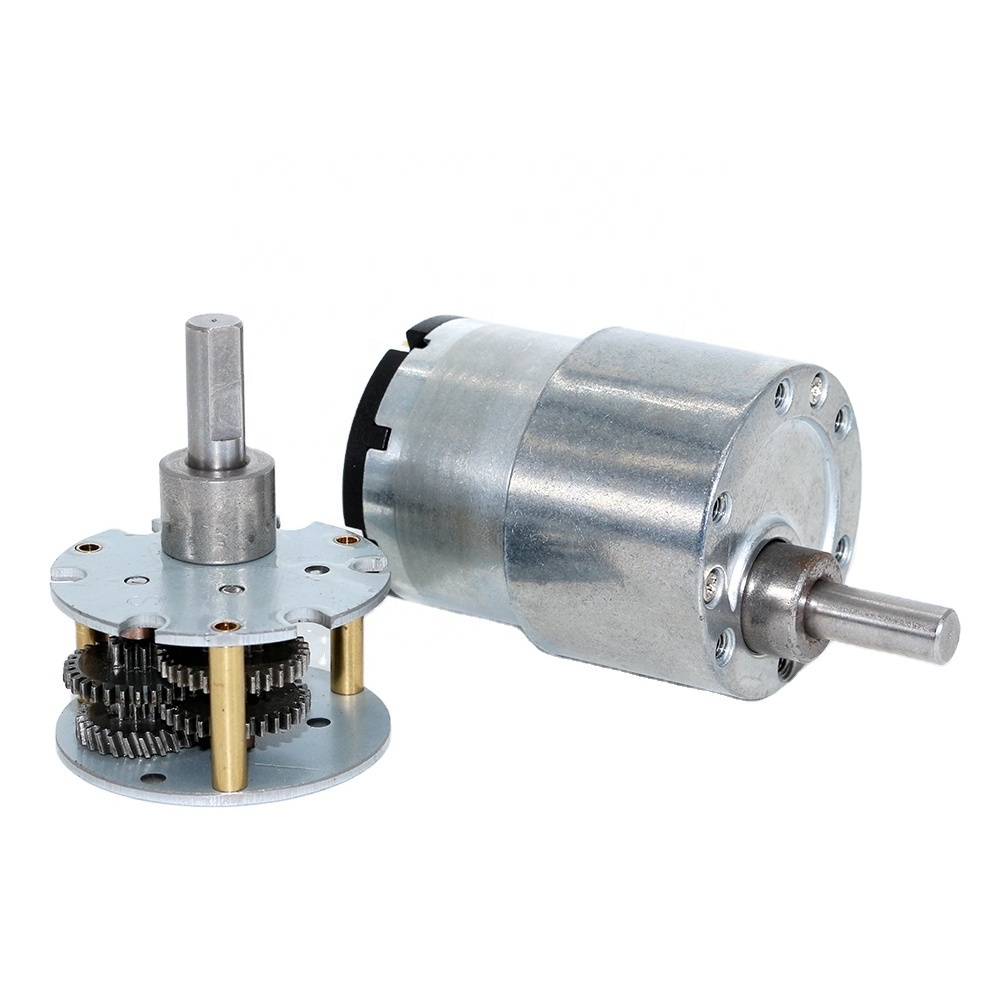

37mm gear motor
-
Keywords:
-
Micro gear motor
-
Certification:
-
CCC/RoHS/ISO9001/ce
-
Material:
-
Metal Steel
-
Diameter:
-
37mm/25mm
-
Shaft type:
-
Single Shaft
-
Shaft diameter:
-
6MM-D
-
Motor Diameter:
-
37mm
-
Gear Material:
-
Metal Gear Option
Quick Details
-
Speed(RPM):
-
7-960 rpm
-
Continuous Current(A):
-
50ma
-
Efficiency:
-
IE 1
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SZCMMOTOR
-
Model Number:
-
JGB37-520
-
Torque:
-
Max 35kg.cm
-
Motor type:
-
Dc Brush Gear Motor
-
Product Name:
-
37mm gear motor
-
Keywords:
-
Micro gear motor
-
Certification:
-
CCC/RoHS/ISO9001/ce
-
Material:
-
Metal Steel
-
Diameter:
-
37mm/25mm
-
Shaft type:
-
Single Shaft
-
Shaft diameter:
-
6MM-D
-
Motor Diameter:
-
37mm
-
Gear Material:
-
Metal Gear Option
|
|
|
|
|
Model
|
JGB37-520
|
|
|
Motor Voltage(VDC)
|
12v 24v
|
|
|
Reduction Ratio
|
40,65,150,200,260,340,600,1000
|
|
|
Gearmotor No Load Speed(RPM)
|
|
|
|
Gearmotor Rated Load Speed(RPM)
|
|
|
|
Gearmotor Rated Load Torque(kg.cm)
|
14-06kg.cm
|
|
|
Gearmotor No Load Current(A)
|
<100ma
|
|
|
Gearmotor rated current(A)
|
<600ma
|
|
|
Housing material
|
Stainless steel
|
|
|
Bearing at output shaft
|
Ball-bearing or oil-retaining bearing
|
|
|
Shaft Shape
|
D-type
|
|
|
Gear type
|
SPUR gear
|
|
*General Service:
*Quick Reply:All e
nquiry or email be replied in 12 hou
rs, no delay for your business.
*Professional Team:Questions about products will be replied professionally, exactly, best advice to you.
*Short Lead time:Sample or small order sent in 2 days, bulk or customized order about 15 days.
*Payment Choice:T/T, Western Union,, L/C, etc, easy for your business.
*Before shipment:Take photos, send to customers for confirmation. Only confirmed, can be shipped out.
*Language Choice:Besides English, you can use your own language by email, then we can translate it.
*Customization Service:
Motor specification(no-load speed , voltage, torque , diameter, noise, life, testing) and shaft length can be tailor-made according to customer's requirements.
1.shockproof foam packing
2. Suitable carton size
3. 100pcs/box,1pc=0.16kg
4.DHL,UPS,Epacket,ocean shipping,China Post Air mail,HongKong Air Mail.
