Quick Details
-
Model Number:
-
MPT200
-
Material:
-
stainless steel
-
Accuracy:
-
0.2,0.5
-
apply to:
-
air pressure, water pressure, oil pressure, hydraulic pressure
-
work voltage:
-
5vdc, 9-36vdc
-
accuracy:
-
0.1%FS-0.5%FS
-
signal output:
-
mv/v, 0-5vdc, 0-10vdc, 4-20mA, digital output
-
medium temperature:
-
-196c-0c-125c-1200c
-
water proof:
-
IP66-IP68
-
Certificates:
-
ISO, CE , ROHS
-
Certification:
-
CE,ISO,ROHS
Quick Details
-
Warranty:
-
1year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Manyyear
-
Model Number:
-
MPT200
-
Material:
-
stainless steel
-
Accuracy:
-
0.2,0.5
-
apply to:
-
air pressure, water pressure, oil pressure, hydraulic pressure
-
work voltage:
-
5vdc, 9-36vdc
-
accuracy:
-
0.1%FS-0.5%FS
-
signal output:
-
mv/v, 0-5vdc, 0-10vdc, 4-20mA, digital output
-
medium temperature:
-
-196c-0c-125c-1200c
-
water proof:
-
IP66-IP68
-
Certificates:
-
ISO, CE , ROHS
-
Certification:
-
CE,ISO,ROHS
Product Description
Category: Common pressure transducer
Range: -20kpa~0~10kpa~100kpa~2000bar~8000bar
Signal output: 1.0mv/v, 2.0mv/v, 100mv/FS, 0-5vdc, 0-10vdc, 4-20mA
Pressure type: Gauge pressure, vacuum pressure, absolute pressure
Work temperature: -260c~-196c~-40c~0~80~125℃~250c~1200c
Range: -20kpa~0~10kpa~100kpa~2000bar~8000bar
Signal output: 1.0mv/v, 2.0mv/v, 100mv/FS, 0-5vdc, 0-10vdc, 4-20mA
Pressure type: Gauge pressure, vacuum pressure, absolute pressure
Work temperature: -260c~-196c~-40c~0~80~125℃~250c~1200c
Technology Specification
Below spec is only for customer design reference. we can provide ODM product.
|
Model
|
Category
|
Range
|
temperature
|
Signal output
|
Application
|
|
MPT201
|
common pressure sensor
|
-1bar-0-2000bar
|
-20 to 125c;
|
mv/v, 0-5vdc,
0-10vdc, 4-20mA |
liquid pressure, water pressure,
oil pressure, air pressure measure |
|
MPT202T
|
common pressure sensor
|
0-2000bar
|
.-20～＋150~250c
|
mv/v, 0-5vdc,
4-20mA,Rs485 |
liquid pressure, water pressure,
oil pressure, air pressure measure |
|
MPT202HT
|
common pressure sensor
|
0-2000bar
|
0～200c-1200c-1600c
|
mv/v, 0-5vdc,
4-20mA,Rs485 |
oil pressure measure, air pressure measure,
ualt high temperature pressure measure |
|
MPT203
|
common pressure sensor
|
0-2000bar
|
.-20～150
|
mv/v, 0-5vdc,
4-20mA,Rs485 |
hydraulic pressure measure,
high temperature pressure measure |
|
MPT205
|
common pressure sensor
|
0-2000bar
|
.-20～175
|
mv/v, 0-5vdc,
4-20mA,Rs485 |
hydraulic pressure measure,
pressure and temperature measure |
|
MPT211
|
common pressure sensor
|
0-2000bar
|
.-40~+125
|
mv/v, 0-5vdc,4-20mA
|
water pressure measure, oil pressure measure,
air pressure measure |
|
MPT212
|
common pressure sensor
|
0-2000bar
|
.-20~+80
|
mv/v, 0-5vdc,4-20mA
|
water pressure measure, oil pressure measure,
air pressure measure, corrosion medium Pressure measure |
|
MPT213HP
|
common pressure sensor
|
0-2000bar
|
.-40~125℃
|
mv/v, 0-5vdc,4-20mA
|
Large hydraulic machinery,Water jet machine,
ceramic wire cutting machine |
|
MPT214
|
common pressure sensor
|
0-2000bar
|
.-20~+80
|
mv/v, 0-5vdc,4-20mA
|
water pressure measure, oil pressure measure,
hydraulic pressure measure |
|
MPT241
|
common pressure sensor
|
0-2000bar
|
.-40~+125
|
mv/v, 0-5vdc,4-20mA
|
oil pressure measure,
viscous medium pressure measure |
|
MPT221LT
|
common pressure sensor
|
0-2000bar
|
.-260℃~196℃～+125℃
|
mv/v, 0-5vdc,
4-20mA,Rs485 |
liquid oxygen/nitrogen/ hydrogen/helium,
Cooling tanks low temperature pressure measure, |
|
MPT242
|
common pressure sensor
|
0-70bar
|
.-40~0~150~250c
|
mv/v, 0-5vdc,4-20mA
|
chemical, food, spin, water conservancy,
geologic industry pressure measure. |
|
MPT281
|
common pressure sensor
|
0-2000bar
|
.-40~+125
|
mv/v, 0-5vdc,4-20mA
|
liquid pressure measure,
digit display pressure measure |
Product Assembly Structure
Blow force structure is for reference.
Product Process

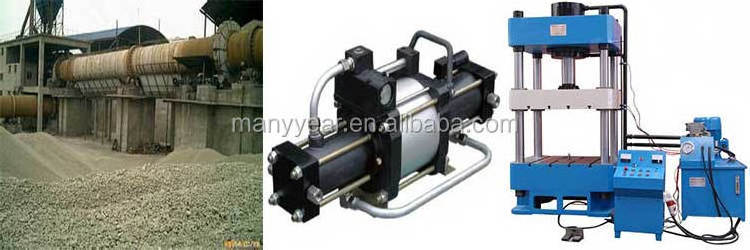

Product Application
Delivery and Shipment
Related Products
Company Introduction
MANYYEAR
Technology
was established in 2008.
We focus on mechanical measurement and design, and provide customers with precise mechanical sensor products.
We have our own production base, with complete sensor production processes from CNC processing, strain gauge production, metal surface treatment, sensor packaging, sensor testing, engineering testing, sensor calibration, etc. And can provide customers with 1000 KPCS per month of qualified product capacity.
Our factory has passed ISO9001 standard. Our products have CE, ROHS, invention patents and other qualifications.
We provide OEM and ODM services to our customers.
We provide free design assistance to our customers.
We have established the following product system:
Load Cell
Force Sensor
Torque Sensor
Pressure Sensor
Infrared Pyrometer
Weighing Instrument
Pressure Gauge
