Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
zhong mei
-
Voltage:
-
380V
-
Power:
-
5500
-
Dimension(L*W*H):
-
1350*1020*750mm
-
Weight:
-
600 kg
-
Model:
-
PZ-5
-
Capacity:
-
5 m3/h
-
Max Convey Distance:
-
Horizontal:200m Vertical 20m
-
Water Cement Ratio:
-
0.4
-
Max. Aggregate Size:
-
20mm
-
Rotor Diameter:
-
438mm
-
Operating Air Pressure:
-
0.4-0.6Mpa
-
Air Consumption:
-
7-8m3/h
-
Motor Power:
-
5.5kw
Quick Details
-
Max. Conveying Distance:
-
20m
-
Max Aggregate Size:
-
20mm
-
Hose Inner Diameter:
-
51 mm, 51mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
zhong mei
-
Voltage:
-
380V
-
Power:
-
5500
-
Dimension(L*W*H):
-
1350*1020*750mm
-
Weight:
-
600 kg
-
Model:
-
PZ-5
-
Capacity:
-
5 m3/h
-
Max Convey Distance:
-
Horizontal:200m Vertical 20m
-
Water Cement Ratio:
-
0.4
-
Max. Aggregate Size:
-
20mm
-
Rotor Diameter:
-
438mm
-
Operating Air Pressure:
-
0.4-0.6Mpa
-
Air Consumption:
-
7-8m3/h
-
Motor Power:
-
5.5kw
Installation Instructions
Introduction Of
PZ5 Shotcrete Pump Gunite Machine New Portable Wet Dry Mix Gunite Shotcrete Machine
HSP-5 Gunite Machine for Construction uses a whole cup type elastic material, the elastic sticky discharges elbow, the overall clean boards. Rotor material cup and bend the material has a self-cleaning effect, non-adhesive, non-blocking, no cleaning, dust concentration 20mg/m3, the average rebound rate 15%, has the feature of simple structure, reliable, high efficiency, easy assembly and disassembly the nozzle discharge uniformity and long life of wearing parts and so on.Which is one of leading technology concrete injection machine in the domestic.zmwm19
Product Paramenters
Product Paramenters Of
PZ5 Shotcrete Pump Gunite Machine New Portable Wet Dry Mix Gunite Shotcrete Machine
|
HSP model (wet-type) shotcrete machine
|
|
|
|
|||
|
Model (Wet-type spraying machine)
|
HSP-5
|
HSP-7
|
HSP-9
|
|||
|
Capacity (m3/h)
|
4-5
|
5-7
|
6-9
|
|||
|
Max. Conveying Distance (Horizontal,Vertical m)
|
30,20
|
30,20
|
30,20
|
|||
|
Feeding pipe inner diameters(mm)
|
51
|
51/64
|
51/64
|
|||
|
Max. Aggregate Diameters (mm)
|
15
|
15
|
15
|
|||
|
Working pressure (MPa)
|
0.3-0.6
|
0.4-0.6
|
0.4-0.6
|
|||
|
Air consumption (m3/min)
|
10-15
|
10-15
|
10-15
|
|||
|
Rotor Diameter(mm)
|
438
|
480(160)
|
480(175)
|
|||
|
Springback (Average)
|
≤10%
|
≤10%
|
≤10%
|
|||
|
Liguid accelerator content
|
0.3-0.7%
|
0.3-0.7%
|
0.3-0.7%
|
|||
|
Motor Model
|
Y132M-6-5.5KW
|
Y160M-6-7.5KW
|
Y160M-6-7.5KW
|
|||
|
Motor Power
|
0.37KW
|
0.37KW
|
0.37KW
|
|||
|
The accelerator metering pump
|
Air operated
|
Air operated
|
Air operated
|
|||
|
Voltage (V)
|
380,660,etc
|
380,660,etc
|
380,660,etc
|
|||
|
Overall size (mm)
|
1280*700*1280
|
2000*800*1300
|
2000*800*1300
|
|||
|
Overall weight (kg)
|
700
|
800
|
900
|
|||
Details lmages

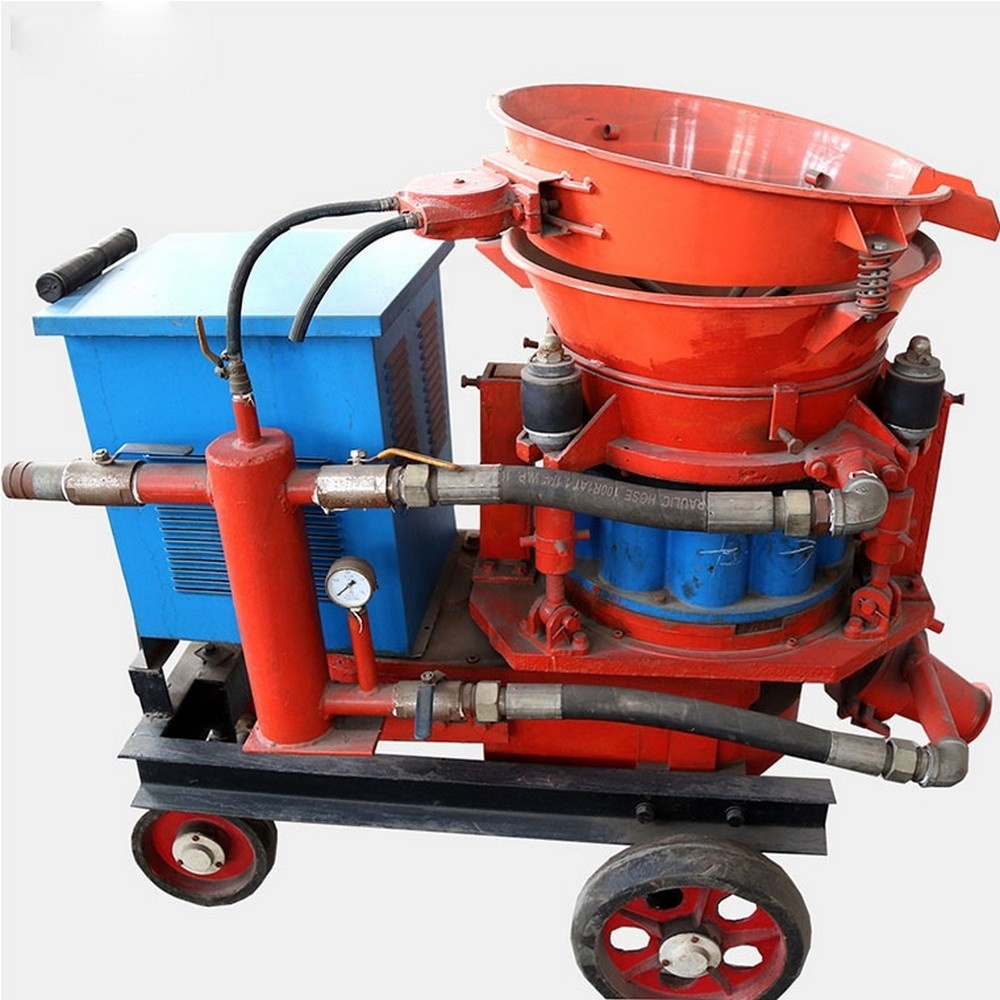

Product Image Of
PZ5 Shotcrete Pump Gunite Machine New Portable Wet Dry Mix Gunite Shotcrete Machine
Why Choose Us
FAQ
1. You are a manufacturing factory or trading company?
China Coal Group is a manufacturing factory base of mines support equipment, transport equipment, lifting equipment, spray equipment, drilling equipment, ventilation equipment and other products.
2. Where is your factory located?
Currently we have one factories in China. One located in Jining, Shandong Province, China . You are warmly welcome to visit us at any time.
3. What are your main products?
We mainly produce mining machinery and railway equipment. We can provide you with any machinery you need!
4. How long is the production leadtime?
Generally it is 15-20 days for goods in stock. In the case of out of stock or large orders, it will take 20-30 days. QTY of the orders will be taken into consideration.
5. What payment terms do you accept?
Payment terms: TT in advance (30% of deposit before production and 70% balance before shipment), bank transfer, Paypal, L/C etc.
6. How do your quality control systems operate?
We have professional designer team, and employ experienced engineers to strictly guarantee the production. Meanwhile our factory owns ISO9001 and is CE and SGS certified.
