Quick Details
-
Dimension(L*W*H):
-
4500mm*1600mm*2300mm
-
Weight:
-
620KG-780KG
-
Features:
-
towable backhoe for tractor
-
Warranty:
-
1 year
-
Key Selling Points:
-
high efficiency
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Matched power:
-
16-150HP
-
Digging depth:
-
1850mm-3500mm
-
Digging height:
-
2500mm-4300mm
-
Digging radius:
-
2800mm-4300mm
-
Bucket turning angle:
-
160°
-
Swing angle for boom:
-
140°
-
Bucket width:
-
250mm-550mm
-
Certification:
-
CE certificate
Quick Details
-
Application:
-
garden digging and construction digging
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FRED
-
Dimension(L*W*H):
-
4500mm*1600mm*2300mm
-
Weight:
-
620KG-780KG
-
Features:
-
towable backhoe for tractor
-
Warranty:
-
1 year
-
Key Selling Points:
-
high efficiency
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Matched power:
-
16-150HP
-
Digging depth:
-
1850mm-3500mm
-
Digging height:
-
2500mm-4300mm
-
Digging radius:
-
2800mm-4300mm
-
Bucket turning angle:
-
160°
-
Swing angle for boom:
-
140°
-
Bucket width:
-
250mm-550mm
-
Certification:
-
CE certificate

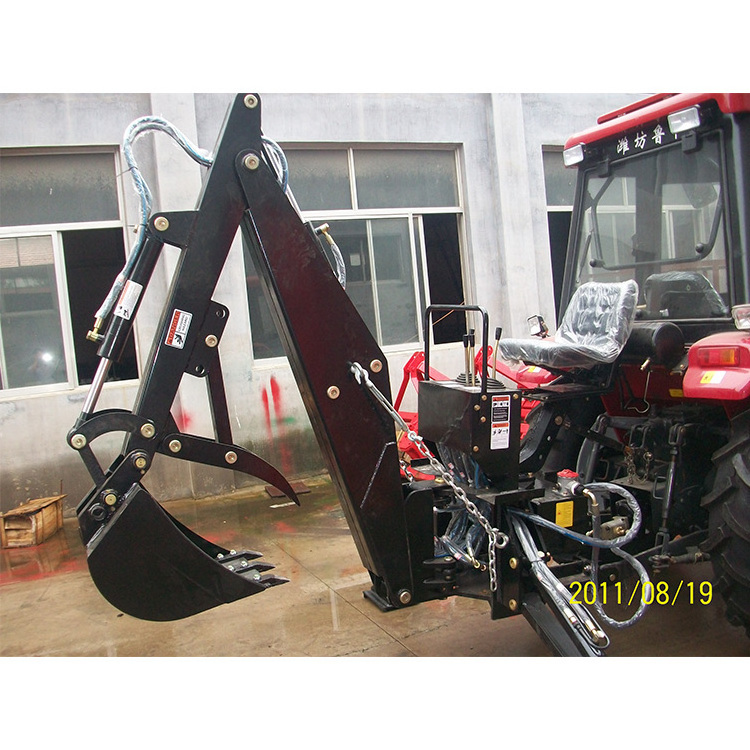

China Best Cheaper Tractor Pto Backhoe Excavator Mounted Towable Backhoe Loader Pto Backhoe Loader For Sale
Main Features
1.Matched any tractor .
2. The pump combined with increasing speed gearbox and connect PTO shaft directly .
3.3-point hitched backhoe,steady structure.
4. With hydraulic pump/oil tank/gauge and thumb on boom.
5.Claw on boom, handed control valve.
6.Luxury spring seat and safety belt.
7.Optional buckets.
8.Can be used for garden digging and construction digging.
2. The pump combined with increasing speed gearbox and connect PTO shaft directly .
3.3-point hitched backhoe,steady structure.
4. With hydraulic pump/oil tank/gauge and thumb on boom.
5.Claw on boom, handed control valve.
6.Luxury spring seat and safety belt.
7.Optional buckets.
8.Can be used for garden digging and construction digging.
|
Model
|
LW-5
|
LW—6
|
LW—7
|
LW—8
|
LW—9
|
LW—10
|
LW—12
|
|
Fitting power
|
15-25hp
|
25-35 hp
|
35-75 hp
|
45-85hp
|
50-100hp
|
70—125hp
|
80-150hp
|
|
Max. digging depth
|
1650 mm
|
1850 mm
|
2150 mm
|
2640 mm
|
2900 mm
|
3000 mm
|
3500 mm
|
|
Digging depth Flat bottom
|
1450 mm
|
1600 mm
|
2000 mm
|
2500 mm
|
2760 mm
|
2800 mm
|
3350 mm
|
|
Max. digging height
|
2100 mm
|
2500 mm
|
3400 mm
|
3510 mm
|
3900 mm
|
4000 mm
|
4300
|
|
Loading heigh
|
1300 mm
|
1400 mm
|
1760 mm
|
2000 mm
|
2362 mm
|
2337 mm
|
2700
|
|
Unloading heigh
|
1530 mm
|
1733 mm
|
1878 mm
|
1952 mm
|
2413 mm
|
2540 mm
|
2770
|
|
Max. digging radius
|
2300 mm
|
2800 mm
|
3360 mm
|
3930 mm
|
3977 mm
|
3886 mm
|
4300
|
|
Bucket rofation (°)
|
160°
|
160°
|
160°
|
160°
|
160°
|
160°
|
172°
|
|
Swing angle (°)
|
160°
|
160°
|
160°
|
160°
|
160°
|
160°
|
180°
|
|
Valve standard press
|
16 Mpa
|
16 Mpa
|
16 Mpa
|
16 Mpa
|
16 Mpa
|
16 Mpa
|
16 Mpa
|
|
Bucket width
|
260 mm
|
300 mm
|
400 mm
|
450 mm
|
480 mm
|
500 mm
|
550 mm
|
|
Bucket volume
|
0.028 m3
|
0.03 m3
|
0.036 m3
|
0.048 m3
|
0.054 m3
|
0.06 m3
|
0.07 m3
|
|
Weight
|
340 kgs
|
520 kgs
|
550 kgs
|
610 kgs
|
720 kgs
|
850 kgs
|
930 kgs
|
