Quick Details
-
Brand Name:
-
SIMCom
-
Product status:
-
New and original
-
Interfaces:
-
USB2.0, UART, USIM Card, ADC etc.
-
Operation temperature:
-
-30 °C to +80 °C
-
Supply voltage range:
-
3.4 ~ 4.2V
-
Certifications:
-
CE/FCC/ICACA/ROHS
-
Dimensions:
-
36mm x 26mm x 4.7mm
-
Weight:
-
7g
-
Lead time:
-
1-2 week
-
Warranty:
-
365 Days
Quick Details
-
Application:
-
M2M
-
Model Number:
-
sim5216E
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SIMCom
-
Product status:
-
New and original
-
Interfaces:
-
USB2.0, UART, USIM Card, ADC etc.
-
Operation temperature:
-
-30 °C to +80 °C
-
Supply voltage range:
-
3.4 ~ 4.2V
-
Certifications:
-
CE/FCC/ICACA/ROHS
-
Dimensions:
-
36mm x 26mm x 4.7mm
-
Weight:
-
7g
-
Lead time:
-
1-2 week
-
Warranty:
-
365 Days
Description

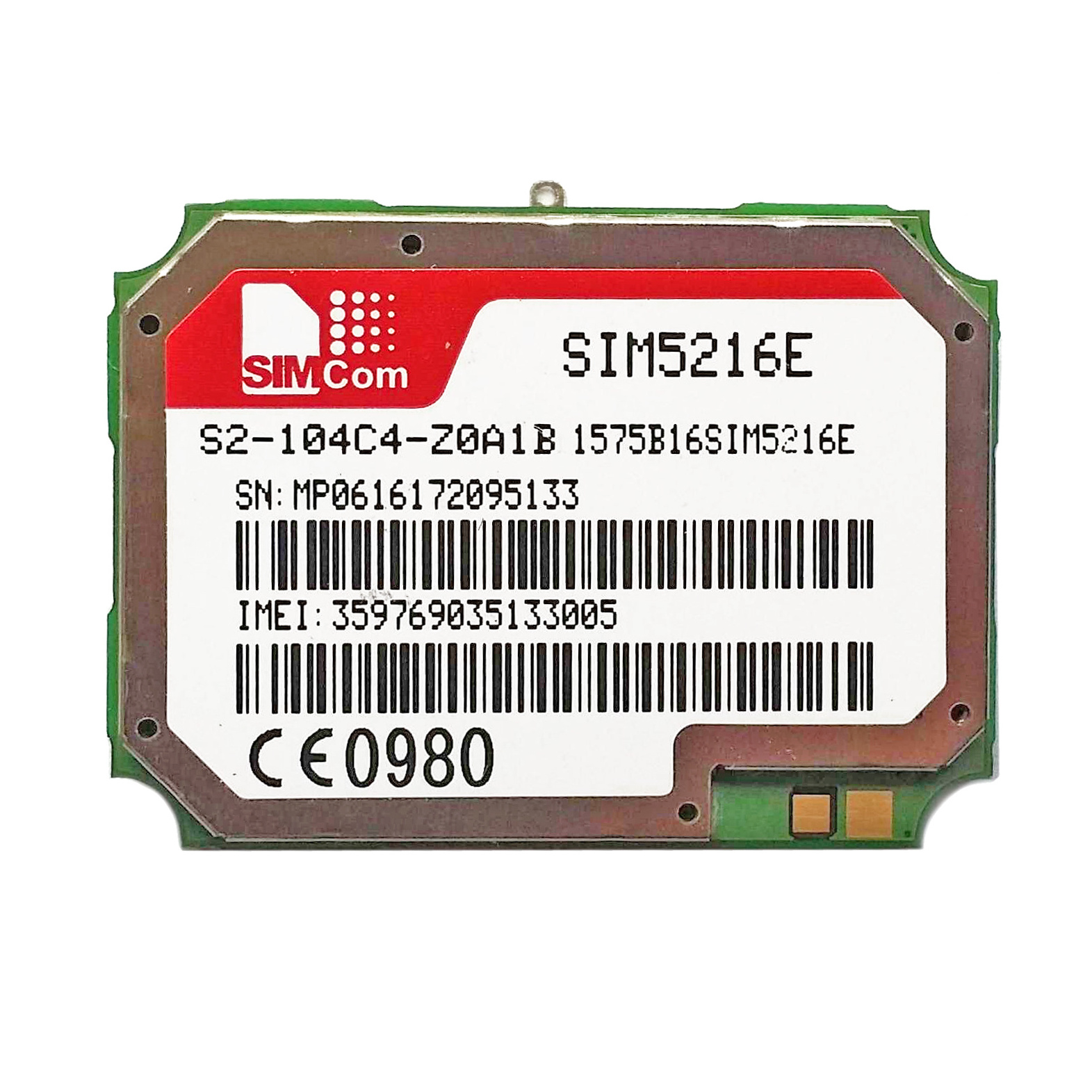

Sim5216E Multi-Band HSDPA/WCDMA/GSM/GPRS/EDGE 3G module
General features
• SIM5216A:Dual-Band UMTS/HSDPA 850/1900MHz
Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
• SIM5216E:Dual-Band UMTS/HSDPA 900/2100MHz
Tri-Band GSM/GPRS/EDGE 850/900/1800MHz
• SIM5216J: Dual-Band UMTS/HSDPA 850(800)/2100MHz
Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
• GPRS multi-slot class 12
• EDGE multi-slot Class 12
• WCDMA 3GPP release 5
Output power
- UMTS 1900/850: 0.25W
- UMTS 2100/900: 0.25W
- GSM850/GSM900: 2W
- DCS1800: 1W
- PCS1900: 1W
• SIM5216A:Dual-Band UMTS/HSDPA 850/1900MHz
Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
• SIM5216E:Dual-Band UMTS/HSDPA 900/2100MHz
Tri-Band GSM/GPRS/EDGE 850/900/1800MHz
• SIM5216J: Dual-Band UMTS/HSDPA 850(800)/2100MHz
Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
• GPRS multi-slot class 12
• EDGE multi-slot Class 12
• WCDMA 3GPP release 5
Output power
- UMTS 1900/850: 0.25W
- UMTS 2100/900: 0.25W
- GSM850/GSM900: 2W
- DCS1800: 1W
- PCS1900: 1W
•
Control Via AT Commands
• Supply voltage range: 3.3V~ 4.2V
• Operation temperature: -30 °C to +80 °C
• Dimension: 36mm × 26mm × 4.7mm
• Weight: 7g
• Supply voltage range: 3.3V~ 4.2V
• Operation temperature: -30 °C to +80 °C
• Dimension: 36mm × 26mm × 4.7mm
• Weight: 7g
Support embedded Script Language
•
LUA Script Language
Specifications for CSD
•
Support in GSM and WCDMA
Other features
•
USB Driver for Microsoft Windows 2000/XP/Vista
•
USB Driver for Linux 2.6.16
•
Firmware update via USB
•
MMS
•
TCP/IP
•
FTP/HTTP/HTTPS/SMTP/POP3
•
FOTA
•
USB Audio
Specifications for SMS
•
Point to point MO and MT
•
Text and PDU mode
Interfaces
USB2.0/ UART/ USIM card/ ADC/ Digital Camera/ GPIO/ I2C
Specifications for Data transfer
•
HSDPA - Max.3.6Mbps(DL)
•
WCDMA - Max.384Kbps(DL), Max.384Kbps(UL)
•
EDGE Class - Max. 236.8Kbps(DL),Max.118Kbps(UL)
•
GPRS - Max. 85.6Kbps(DL), Max.42.8Kbps(UL)
•
CSD - GSM data rate 14.4Kbps
- WCDMA data rate 57.6Kbps
- WCDMA data rate 57.6Kbps
Specifications for Network Identity and Time zone (NITZ)
•
Support in GSM and WCDMA
Certifications
SIM5216A
•
FCC/PTCRB/IC/ROHS
SIM5216E
•
GCF/CE/ROHS
Specifications for video call
•
DTMF on H245
• Support standard WCDMA 64kbps(CS) Video call
