1.Totally closed circulating cooling, to prevent the pipeline blockage caused by sundries.
2.Adopt soft water circulation cooling to prevent power supply,thyristor, capacitor, IGBT module, induction coil and other overheating damage caused by scale formation.
3.No need to dig water pool, small land occupation, convenient movement and low cost.
4.High heat dissipation efficiency and low operation cost.
5.The closed circulating water consumption is small, which meets the requirements of environmental protection and energy saving.
6.The traditional way of cooling for high, medium frequency and super audio frequency induction equipment is to excavate a certain amount of water pool or use open cooling water tower to cool directly with hard water, which often causes scaling on the water pipe wall due to poor water quality, gradually reducing or even blocking the circulating water flow, thus causing component damage (such as: electronic tube, thyristor, reactor, capacitor, IGBT module, induction coil, etc.
7.In our company's maintenance of medium and high frequency induction heating equipment, it is concluded that the equipment failure caused by water accounts for about 80% of the equipment damage. If the quality of cooling circulating water is improved and the equipment is cooled sufficiently, the failure rate of equipment will be reduced by 80%.
8.Our company has successfully developed FBN series closed water cooling system for the above problems.
- Product Details
- {{item.text}}
Quick Details
-
Power:
-
38kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Shuncheng
-
Dimension(L*W*H):
-
3800x2000x3660mm
-
Weight:
-
2620 KG
-

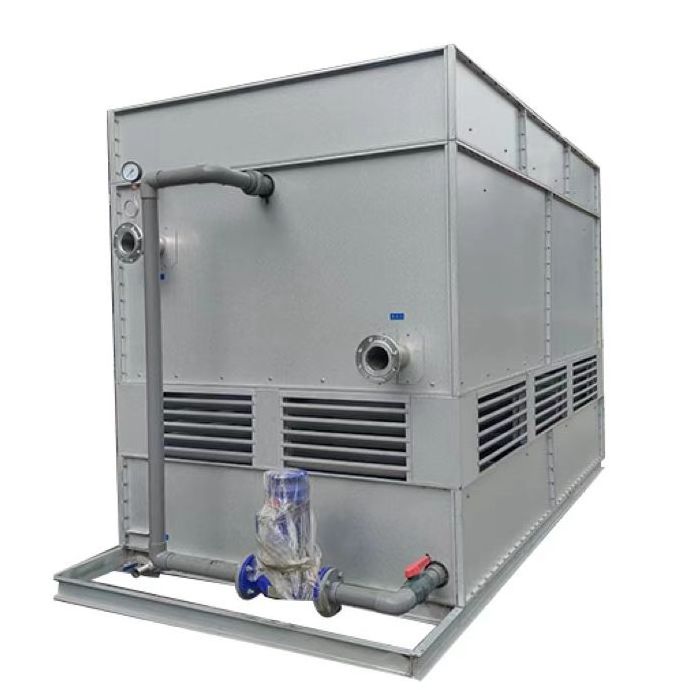

Product name:
-
Closed Cooling Tower
-
Cooling capacity:
-
903000kcal/h
-
Working pressure:
-
0.3Mpa
-
Main pump power:
-
30kw
-
Spray pupm power:
-
4.4kw
-
Fan power:
-
4.4kw
-
In and out diameter:
-
DN150
-
Work flow:
-
150m³/h
-
Certification:
-
ISO9001,CE
-
After-sales Service Provided:
-
Video technical support, Online support, Spare parts
Quick Details
-
Cooling Type:
-
Counter Flow
-
Material:
-
Aluminum-zinc plate
-
Voltage:
-
380V or others
-
Power:
-
38kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Shuncheng
-
Dimension(L*W*H):
-
3800x2000x3660mm
-
Weight:
-
2620 KG
-
Product name:
-
Closed Cooling Tower
-
Cooling capacity:
-
903000kcal/h
-
Working pressure:
-
0.3Mpa
-
Main pump power:
-
30kw
-
Spray pupm power:
-
4.4kw
-
Fan power:
-
4.4kw
-
In and out diameter:
-
DN150
-
Work flow:
-
150m³/h
-
Certification:
-
ISO9001,CE
-
After-sales Service Provided:
-
Video technical support, Online support, Spare parts
Recommend Products
FL internal circulation closed cooling equipment
1.power supply of power frequency,
intermediate frequency, high frequency
and IGBT
2.melting furnace, heat preservation
furnace and diathermy furnace
3.Complete induction heating equipment
4.complete set of medium and high
frequency quenching equipment
Our Advantages
Focusing on the production of electromagnetic induction heating equipment for more than 20 years, we have a professional team,master the core technology and independent research and development of the international leading induction heating system, and cansolve problems and provide better services for customers.
1. Energy saving and efficient equipment:
Comply with international electrical and load design standards, with complete protection functions, failure rate close to zero, and energy saving of 10% -20% compared with ordinary equipment
2. Environmental protection and safety:
The furnace structure conforms to the national standard, with scientific and technological reasonable personalized design, power factor up to 0.98, low harmonic, and no pollution to the power grid,
3. The equipment is stable and reliable:
The components shall be of well-known brands, with better starting performance, high transformer utilization rate, high load voltage and low loss to ensure the stability of the equipment
4. Intelligent control:
4. Intelligent control:
The equipment intelligent management system can realize production management, quality control and other
functions, as well as equipment remote diagnosis, data collection, transmission early warning and other monitoring.
functions, as well as equipment remote diagnosis, data collection, transmission early warning and other monitoring.
