Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MYTECH
-
Model Number:
-
MY-57S-UB/D
-

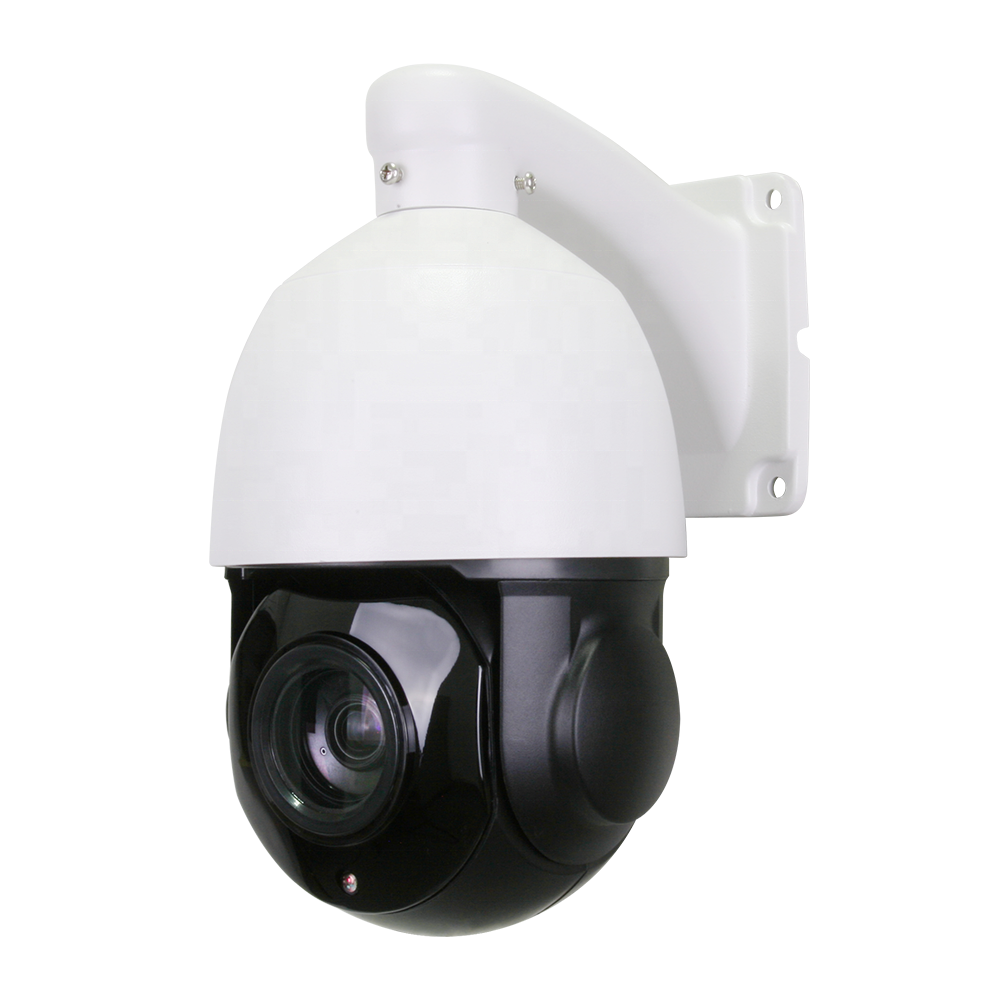

Product name:
-
IP PTZ Camera
-
Resolution:
-
2mp
-
IR Distance:
-
60m
-
Power:
-
DC 12V/2A
-
Protection grade:
-
IP 66
-
Waterproof:
-
IP66 Water-proof
-
The network interface:
-
10/100M Ethernet, RJ45 interface
-
The focal length:
-
4.7mm -47mm
-
aperture:
-
F1.6-F2.5
Quick Details
-
Special Features:
-
NIGHT VISION, Waterproof / Weatherproof, PAN-TILT
-
Function:
-
PAN-TILT, RESET, NIGHT VISION, Waterproof / Weatherproof
-
Customized support:
-
OEM, ODM
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MYTECH
-
Model Number:
-
MY-57S-UB/D
-
Product name:
-
IP PTZ Camera
-
Resolution:
-
2mp
-
IR Distance:
-
60m
-
Power:
-
DC 12V/2A
-
Protection grade:
-
IP 66
-
Waterproof:
-
IP66 Water-proof
-
The network interface:
-
10/100M Ethernet, RJ45 interface
-
The focal length:
-
4.7mm -47mm
-
aperture:
-
F1.6-F2.5
Product details
Application scenarios
MY-57S-UB-POE The dome camera can be widely applied to need a wide range of high-definition monitor light and the light weak places, such as rivers, forests, roads, railways, airports, ports, oil fields, sentry, square, park, scenic spot, the streets,railway stations, large venues, plot peripheral, etc, the places
Specification
|
Product parameter
|
|
|
|
|||
|
model number
|
MY-57S-UB-POE
|
|
|
|||
|
|
Infrared distance
|
60 meters
|
|
|||
|
|
Horizontal range and speed
|
Horizontal 360° continuous rotation, speed 0.6°～ 200°
|
|
|||
|
|
Vertical range and speed!
|
0～90°，Support automatic rollover,speed 3.5°～30°/s
|
|
|||
|
|
Speed of hand control
|
High, medium, low three adjustable.
|
|
|||
|
Movement parameters
|
Videoparameters
|
The resolution of the
|
1920*1080@30fps
|
|||
|
|
|
The sensor
|
1/2.9” 2.0M SONY323 CMOS
|
|||
|
|
Video parameters
|
Low illumination
|
color:0.05Lux@F1.6; Black and white:0.01Lux@F1.6; 0 Lux（The red light is on）
|
|||
|
|
|
Electronic shutter
|
1/2～1/20,000 seconds，Support slow shutter
|
|||
|
|
The lens parameters
|
The focal length
|
5.3mm -96.3mm
|
|||
|
|
The lens parameters
|
Viewing Angle
|
45(proximal)/3.1(distal))
|
|||
|
|
|
aperture
|
F1.7~F3.6
|
|||
|
|
|
The exposure mode
|
Program（Customizable shutter range）、The shutter mode
|
|||
|
|
function
|
The white balance
|
Automatic, indoor, outdoor, sodium lamp mode, manual.
|
|||
|
|
|
Image image!
|
Horizontal/vertical/horizontal + vertical/close.
|
|||
|
|
|
Digital noise reduction
|
Support DNR,3DNR
|
|||
|
|
|
Gain control!
|
Automatic/manual
|
|||
|
|
|
Wide dynamic
|
≥70dB
|
|||
|
|
|
Day and night conversion
|
automatic ICR filter color black, fixed black and white.,Fixed color, external control.
|
|||
|
|
|
Privacy protection
|
Support 3D privacy area, open/close (the same screen can set up 4 privacy areas)
|
|||
|
|
|
More stream
|
supports dual coding.,Three-yard flow,H.265 Main Profile / H.264 Main profile / M-JPEG
|
|||
|
|
|
Network protocol
|
TCP/IP，HTTP，NTP，IGMP，DHCP，UDP，SMTP，RTP，RTSP，ARP，DDNS，DNS，HTTPS，802.1X，P2P
|
|||
|
interface
|
The network interface
|
10/100M Ethernet, RJ45 interface,
|
|
|||
|
|
Power supply and control interface.
|
DC 12V/2A（Optional POE power supply standard IEEE 802.3at），RS485
|
|
|||
|
others
|
Power consumption
|
20W（MAX）
|
|
|||
|
|
Working temperature and humidity
|
-30℃～+60℃，≤90%RH(No condensation)
|
|
|||
|
|
Protection grade
|
TVS3000V lightning protection, surge prevention, anti-rush wave; Outdoor ball: IP66
|
|
|||
Packing & Delivery
Standard Export Carton
1 unit per carton
Carton Box Inner Size: 280mmX280mmX225mm
1 unit per carton
Carton Box Inner Size: 280mmX280mmX225mm
delivery method
diversified shipping method like by express like DHL and Fedex, by Air, by sea
