- Product Details
- {{item.text}}
Quick Details
-
Engine Brand:
-
Other
-
Weight:
-
650 KG
-
Product name:
-
Crawler Tractor
-
Use:
-
Farm Land
-
Application:
-
Agriculture Planting
-
After-sales Service Provided:
-
Online Service Provided
-
Engine:
-
1Cylinder Diesel Engine
-
Name:
-
Farmer Tractor
-
Engine type:
-
1 Cylinder Engine
-
Power:
-
25HP/35HP/40HP/50HP
-
Color:
-
customized
Quick Details
-
Brand Name:
-
yueshan
-
Place of Origin:
-
Shandong, China
-
Warranty of core components:
-
Other
-
Engine Brand:
-
Other
-
Weight:
-
650 KG
-
Product name:
-
Crawler Tractor
-
Use:
-
Farm Land
-
Application:
-
Agriculture Planting
-
After-sales Service Provided:
-
Online Service Provided
-
Engine:
-
1Cylinder Diesel Engine
-
Name:
-
Farmer Tractor
-
Engine type:
-
1 Cylinder Engine
-
Power:
-
25HP/35HP/40HP/50HP
-
Color:
-
customized
Products Description
|
Model
|
YSCT-25D
|
YSCT-25P
|
YSCT-35D1
|
YSCT-35P1
|
YSCT-50D
|
YSCT-50P
|
YSCT-80
|
YSCT-120
|
||||||||
|
Number of cylinders
|
1
|
1
|
1
|
1
|
4
|
4
|
4
|
4
|
||||||||
|
Intake System
|
Inhale Naturally
|
Inhale Naturally
|
Inhale Naturally
|
Inhale Naturally
|
Inhale Naturally
|
Inhale Naturally
|
Supercharger
|
Supercharger
|
||||||||
|
Max horsepower (R/M)
|
25/2200
|
25/2200
|
35/2200
|
35/2200
|
50
|
50
|
80
|
120
|
||||||||
|
Tank Capacity (L)
|
15
|
15
|
20
|
20
|
52
|
52
|
52
|
92
|
||||||||
|
Transmission System
|
|
|
|
|
|
|
|
|
||||||||
|
Number of Gear
|
6F+2B
|
6F+2B
|
6F+2B
|
6F+2B
|
8F+2B
|
8F+2B
|
8F+2B
*8F+8B
|
8F+2B
*8F+8B
|
||||||||
|
Max walking speed (km/h)
|
15
|
15
|
15
|
15
|
20
|
20
|
25
|
30
|
||||||||
|
Tail Power System
|
|
|
|
|
|
|
|
|
||||||||
|
3 Point Suspension & POT
|
N
|
N
|
N
|
N
|
Y
|
Y
|
Y
|
Y
|
||||||||
|
Tail Output Speed (R/M)
|
220
|
220
|
260
|
260
|
540-720
|
540-720
|
540-720
|
540-1000
|
||||||||
|
Dimension
|
|
|
|
|
|
|
|
|
||||||||
|
Outline Size (CM)
|
2700*780*1060
|
2450*1100*1200
|
2750*930*1000
|
2650*1250*1400
|
2550*1400*1300
|
2650*1650*1550
|
2900*1800*1650
|
2900*1850*1650
|
||||||||
|
Crawler Track Width (CM)
|
180*72*36
|
250*84*42
|
180*72*36
|
280*90*38
|
230*72*48
|
350*90*56
|
350*90*56
|
350*90*58
|
||||||||
|
Chassis height from ground (CM)
|
20
|
40
|
20
|
40
|
20
|
40
|
40
|
45
|
||||||||
|
Gross Weight (KG)
|
750
|
950
|
950
|
1050
|
1350
|
1650
|
2050
|
2150
|
||||||||
|
Net Weight (KG)
|
650
|
850
|
850
|
950
|
1200
|
1500
|
1850
|
1950
|
||||||||
Details Images

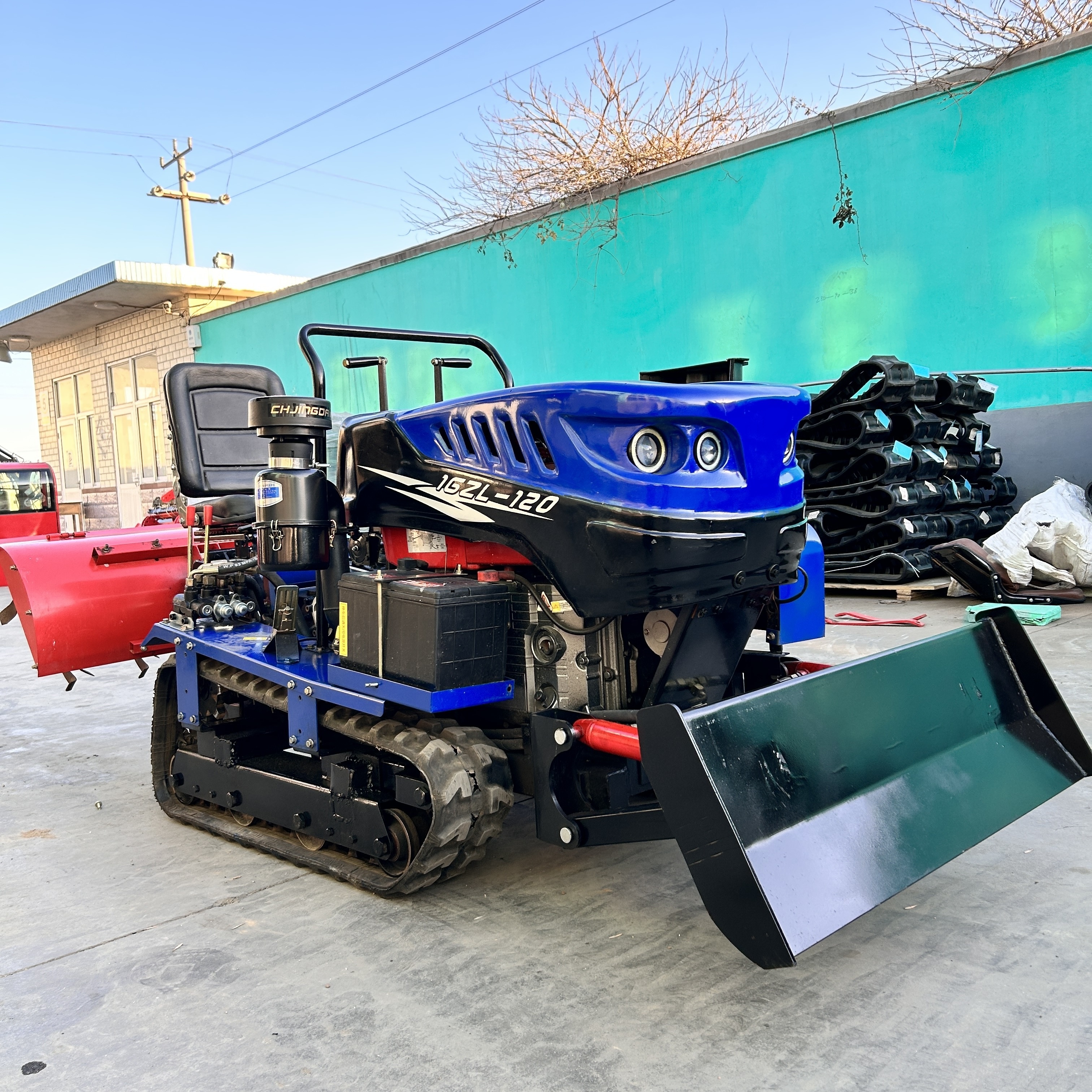

35HP track rototiller is custom-made full gear transmission. The engine is directly connected to the walking transmission and the rear rotary tillage transmission. The front of the walking transmission has 3 forward gears, 1 backward gear, and the rear of the working connection box, which can be matched with rotary tillage, ditching and a large number of farm tools.
The machine is designed with one driving wheel, four supporting wheels and one supporting wheel on one side. The supporting wheels are made of disposable cast steel, and the Supporting wheels are produced by the CNC machining center. Supporting wheel
diameter is enlarged and the edge of the wheels is thickened.
diameter is enlarged and the edge of the wheels is thickened.
