Quick Details
-
Diameter of Parent Roll (Max)::
-
500 mm
-
Cutting Mode::
-
by resistance wire
-
Core of finish roll::
-
Customized
-
Voltage/Frequency/Phase::
-
customized
-
Width of Finished Products::
-
300-350 mm
-
Brand Name ::
-
XHD
-
Type::
-
Rewinder machine
-
Product name::
-
rewinding machine for film
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Designed Linear Speed::
-
Max 12 rolls (30m/min)
-
Core Specs of Parent Roll::
-
3"
-
Diameter of Parent Roll (Max)::
-
500 mm
-
Cutting Mode::
-
by resistance wire
-
Core of finish roll::
-
Customized
-
Voltage/Frequency/Phase::
-
customized
-
Width of Finished Products::
-
300-350 mm
-
Brand Name ::
-
XHD
-
Type::
-
Rewinder machine
-
Product name::
-
rewinding machine for film

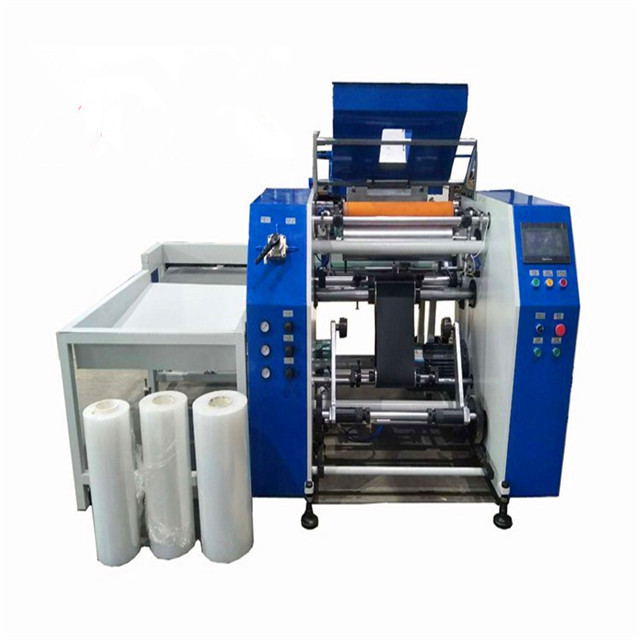

2019 high speed automatic rewinding machine for film
The rewinder is specially designed for rewinding master rolls with weight more than 40 KGS into small hand use stretch film rolls with 2" and 3" inner diameter paper cores. This model is very popular among our customers. We ship around 30 sets per month . The designed speed of the rewinder is 360 M/min .
Please check the simple information of the rewinder as below. Some cutomers would like to use certain brand (Omron, Delta, Schneider, Pro-face and Airtac) electrical parts for easy maintenance, even though the parts we are using now are very stable, we can also customize the rewinder according to customers' requirements.
|
Item |
Specs |
|
Max width of the parent roll |
500 mm |
|
Power of motor |
4 KW |
|
Designed linear speed |
360M/min |
|
Sub-roll paper core loading mode |
Automatic |
|
Max diameter of the parent roll |
500 mm |
|
Max width of the parent roll |
500 mm |
|
Inner diameter of the parent roll paper core |
3" |
|
stretch film cutting mode |
by resistance wire |
|
Max width of the sub-roll |
300/350/400/450/500 mm |
|
Max diameter of the sub-roll |
200 mm |
|
Inner diameters of the sub-roll paper core |
3", 2" |
|
Overall dimensions (L×W×H) |
2.6×1.8×1.4 M |
|
Gross weight |
800 Kg |
2019 high speed automatic rewinding machine for film
The automatic jumbo roll slitting food grade cling film rewinder will be packed in plywoode case (no need to do the fumigation). Please check the packing information as below. Since we had already sold the rewinders all over the world, there are some very good logistics companies for your reference.
Kind and No. of PKG: 1 PLYWOOD CASE.
Dimensions: 1.41×1.13×1.25 M
Total Volume: 2CBM
Total G.W.: 600KGS.
The rewinder can be ready within 2~3 weeks (depends on the voltage of the machine) after receipt of the down payment.
