Quick Details
-
Mounting Type:
-
Ceiling mounting
-
Description:
-
Z10 for outdoor lighting
-
Model Number:
-
ANT-6-Z10-BLE-SR
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
BRILLIANT
-
Theory:
-
PIR
-
Output:
-
0-10V dimming signal
-
Power supply:
-
12V-24V DC,>30mA
-
Certificate:
-
CE, UL
-
Mounting height:
-
50ft Max
-
Material:
-
Plastic
-
Detect Area:
-
360°
-
Warranty:
-
5 Years
-
OEM&ODM:
-
Available
-
Temperature:
-
-20℃ ~ + 60℃
-
Function:
-
dimming, daylight harvest, ble mesh
Quick Details
-
Use:
-
outdoor lighting and ble system
-
Series:
-
Z10 sensor
-
Features:
-
IP65
-
Mounting Type:
-
Ceiling mounting
-
Description:
-
Z10 for outdoor lighting
-
Model Number:
-
ANT-6-Z10-BLE-SR
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
BRILLIANT
-
Theory:
-
PIR
-
Output:
-
0-10V dimming signal
-
Power supply:
-
12V-24V DC,>30mA
-
Certificate:
-
CE, UL
-
Mounting height:
-
50ft Max
-
Material:
-
Plastic
-
Detect Area:
-
360°
-
Warranty:
-
5 Years
-
OEM&ODM:
-
Available
-
Temperature:
-
-20℃ ~ + 60℃
-
Function:
-
dimming, daylight harvest, ble mesh
Specifications
|
Power supply
|
12V-24V DC, >30mA
|
|
Max bluetooth range
|
200ft
|
|
Dim control output
|
0-10V, max. 25mA sinking current
|
|
Detection radius
|
20%/50%/75%/100%(1-8m)
|
|
Mounting height
|
Max 40ft
|
|
Time setting
|
10s-60min(adjustable)
|
|
Light control
|
10LUX-50LUX(adjustable)
|
|
Temperature
|
-4°F~+140°F(-20°C~+60°C)
|
|
IP rating
|
IP65
|
Products Description
Q
uick detail of solar mo
tion flood lights ble motion sensor
1, 8mA input current, available for solar street lighting
2, Z10 international standard version IP65 for outdoor lighting
3, SILVAIR bluetooth mesh APP control, easy operation
3. Bluetooth mesh, PIR and daylight harvest 3 in 1
4.*0~10V output signal.
5, Super compact size(57mm only in diameter).
6, Intelligent photocell to measure and differentiate natural light from LED light.

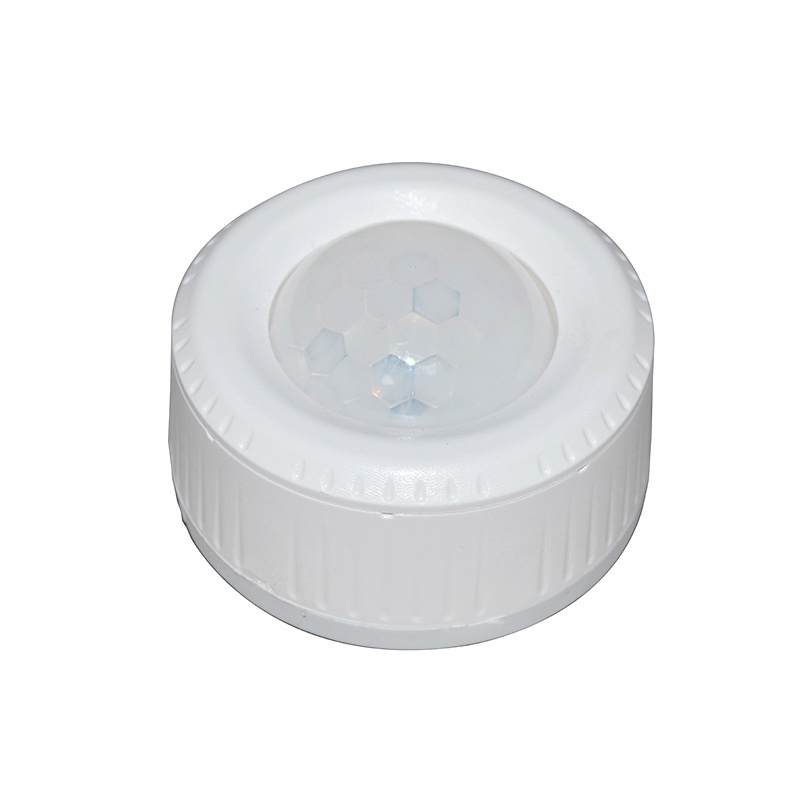

Description of PIR motion sensor of outdoor lighting
ANT-6-Z10-BLE-SR uses Z10 standard receptacle, 12V DC input, 0-10v dimming and daylight harvest function by SILVAIR bluetooth mesh APP control, high bay version max. 12m mounting height PIR motion sensor
Advantage of ip65 ble PIR motion sensor
This kind of model ANT-6-Z10-BLE-SR is using Z10 standard socket, and if you own international standard Z10 socket, you can use our ANT-6-Z10-BLE-SR or other models with different functions.
Sensor Coverage
Application Scene：
