Quick Details
-
Model Number:
-
SSL-ICR1S1P14500E8
-
Battery Size:
-
14500
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
0.2kg
-
Electric Energy:
-
100 Wh
-
Type:
-
Li-Ion
-
Product name:
-
3.7v 800mAh 14500 1S1P Li-ion battery
-
Composed Type:
-
1S1P
-
Size:
-
70*20*20mm or Customized
-
Voltage:
-
3.7v
-
Nominal Capacity (Ah):
-
0.8Ah
-
Model No.:
-
SSL-ICR1S1P14500E8
-
Cycle life:
-
800 Times
-
Warranty:
-
12months
Quick Details
-
Anode Material:
-
NCM
-
Application:
-
Toys, Solar Energy Storage Systems, lighting
-
Brand Name:
-
SOSLLI or OEM
-
Model Number:
-
SSL-ICR1S1P14500E8
-
Battery Size:
-
14500
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
0.2kg
-
Electric Energy:
-
100 Wh
-
Type:
-
Li-Ion
-
Product name:
-
3.7v 800mAh 14500 1S1P Li-ion battery
-
Composed Type:
-
1S1P
-
Size:
-
70*20*20mm or Customized
-
Voltage:
-
3.7v
-
Nominal Capacity (Ah):
-
0.8Ah
-
Model No.:
-
SSL-ICR1S1P14500E8
-
Cycle life:
-
800 Times
-
Warranty:
-
12months

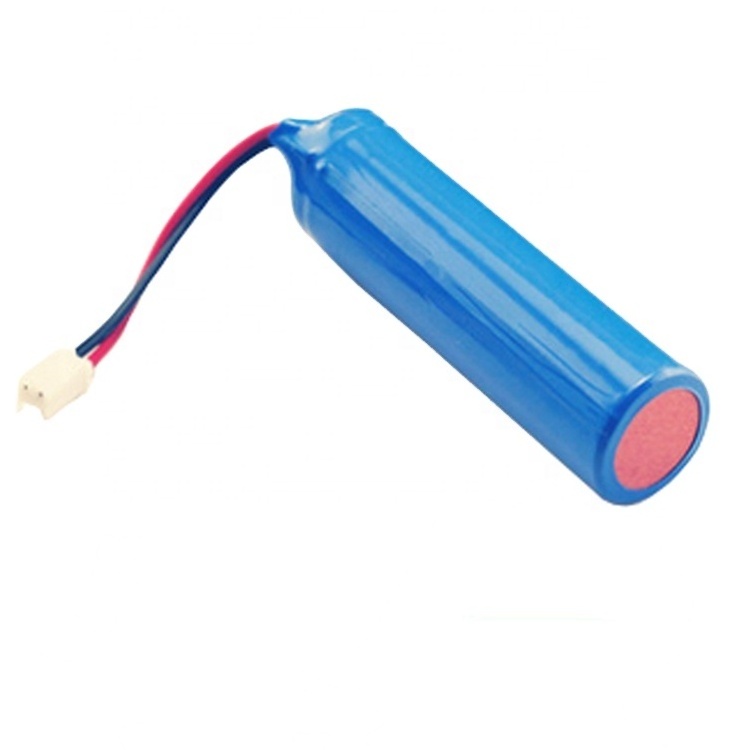

SOSLLI 3.7v 800mAh 14500 1S1P Li-ion battery rechargeable lithium ion battery pack:
| No. | Item | Specification | Remarks | |
| 1 | Brand Name | SOSLLI or OEM | ||
| 2 | Model NO. | SSL-ICR1S1P14500E8 | ||
| 3 | Normilar Capacity | 0.8Ah | 0.2 C 5 A discharge | |
| 4 | Normilar Voltage | 3.7 V | ||
| 5 | Discharge Voltage (Min.) | 2.75V | ||
| 6 | Charging Voltage (Max.) | 4.2V | ||
| 7 | Charging Current (std.) | 0.5 C 5 A | ||
| 8 | Discharging Current (Max. continue) | 1 C 5 A | ||
| 9 | Discharging Current (Max. temporary) | 2 C 5 A | ||
| 10 | Charging Temperature & Humidity | 0℃ ~ +45℃ 45~85%RH | ||
| 11 | Discharging Temperature & Humidity | -20℃ ~ +60℃ 45~85%RH | ||
| 12 | Battery storage and transportation environment temperature & humidity ranges | Min. 1 month | -20℃ ~ +60℃ 45~85%RH | |
| Min. 3 months | -20℃ ~ +45℃ 45~85%RH | |||
| Min. 12 months | -20℃ ~ +25℃ 45~85%RH | |||
| 13 | Battery Type | Li-ion battery 18650 2000mAh | ||
| 14 | Internal Impedance | ≤60 mΩ | ||
| 15 | Protection Fuctions |
Over charge, Over discharge,
Over load, Short Circuit |
||
| 16 | Size | 70*20*20mm | Recommend or Customize | |
| 17 | Weight | Approx. 0.2kg | PVC/ABS package | |
| 18 | Cycle Life | 800 times | ||
| 19 | Warranty | 12 months | ||
Lithium ion battery PACK 22.2V/24V series with 3.7v 2600 mAh 18650 cell as below.
| Model | Voltage | Capacity | Size/Weight(package) |
| SSL-6S1P26P | 22.2V/24V | 2.6Ah | 120*70*20mm or Customized |
| SSL-6S2P26P | 5.2Ah |
Recommend or Customized. The Lithium ion battery PACK can packing with PVC/Plastic box/Metal box that size/weight is according to the battery solution. |
|
| SSL-6S3P26P | 7.8Ah | ||
| SSL-6S4P26P | 10.4Ah | ||
| SSL-6S5P26P | 13Ah | ||
| SSL-6S6P26P | 15.6Ah | ||
| SSL-6S7P26P | 18.2Ah | ||
| SSL-6S8P26P | 20.8Ah | ||
| SSL-6S9P26P | 23.4Ah | ||
| SSL-6S10P26P | 26Ah | ||
| SSL-6S15P26P | 39Ah | ||
| SSL-6S20P26P | 52Ah | ||
| SSL-6S50P26P | 130Ah |
Typical Advantage of Soslli's lithium Ion battery PACK:
1. Safer: Triple protection designs to prevent short-circuit inside the cell.
2. Real and high capacity, Low self-discharging, no memory effect.
3. Longer cycle life more than 500 times @80% capacity retain.
4. Large batch production, offering very similar cells for rating.
