High temperature tempering treatment, welded steel tube T type machine bed and T type gantry, high rigidity, better bearing.
★
Linear guide rail, ensuring the higher precision and long life time.
★
China air or water cooling spindle, more powerful, low noise, not easy to break cutters.
★
Square guide rail transmission for X Y-axis, ball screw transmission for Z-axis, ensuring the machine fast speed and higher precision.
- Product Details
- {{item.text}}
Quick Details
-
Positioning Accuracy (mm):
-
0.05 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
3.2kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ZCUT
-
Voltage:
-
220V OR 380V
-
Dimension(L*W*H):
-
1300*2500*500mm
-
Power (kW):
-
4.5
-
Weight (KG):
-
1500
-
Product name:
-

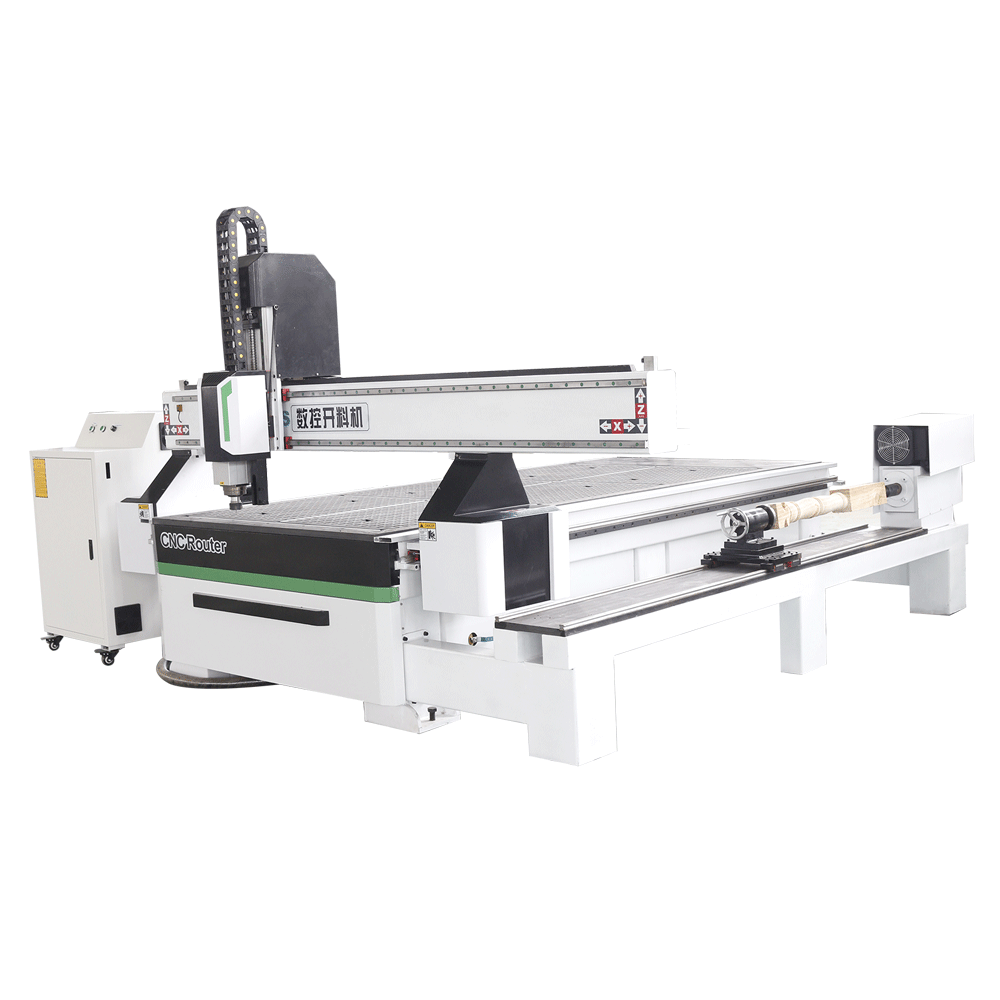

1325 CNC Router Machine
-
Structure:
-
Heavy Duty Seamless Steel Structure
-
Control system:
-
Taiwan Syntec Controller
-
Application:
-
Wood Acrylic PVC Engraving Cutting
-
Spindle:
-
Water/Air Cooling Spindle
-
Transmission:
-
Ball Screw
-
Motor:
-
Hybrid Servo Motor
-
Software:
-
Artcam/Type3/Ucancam
-
Color:
-
Clients Requirment
-
After-sales Service Provided:
-
Field maintenance and repair service
-
Showroom Location:
-
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Australia
-
Marketing Type:
-
New Product 2020
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
6000 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.05 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
3.2kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ZCUT
-
Voltage:
-
220V OR 380V
-
Dimension(L*W*H):
-
1300*2500*500mm
-
Power (kW):
-
4.5
-
Weight (KG):
-
1500
-
Product name:
-
1325 CNC Router Machine
-
Structure:
-
Heavy Duty Seamless Steel Structure
-
Control system:
-
Taiwan Syntec Controller
-
Application:
-
Wood Acrylic PVC Engraving Cutting
-
Spindle:
-
Water/Air Cooling Spindle
-
Transmission:
-
Ball Screw
-
Motor:
-
Hybrid Servo Motor
-
Software:
-
Artcam/Type3/Ucancam
-
Color:
-
Clients Requirment
-
After-sales Service Provided:
-
Field maintenance and repair service
-
Showroom Location:
-
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Australia
-
Marketing Type:
-
New Product 2020
We can customize various models of CNC engraving machines. You tell us your request and we will surely meet it. Please feel free to consult.
1300x2500；1500x3000；2000x3000；2000x4000.
Main Features
Vaccum adsorption table
Side rotary axis
Specification
|
NO.
|
|
Description
|
Parameter
|
|
|
1
|
|
Working Area
|
1300mm*2500mm*200mm
|
|
|
2
|
|
Positioning Accuracy (mm)
|
0.02mm
|
|
|
3
|
|
Repeatability (X/Y/Z) (mm)
|
0.01mm
|
|
|
4
|
|
Voltage
|
AC380V±10%/50~60Hz (220V is optional)
|
|
|
5
|
|
Liner rail
|
20# liner guide rail for XYZ axes
|
|
|
6
|
|
Axes transmission
|
2510 TBI Transmission
|
|
|
7
|
|
Spindle speed
|
0-24000rpm/min
|
|
|
8
|
|
Working table
|
Aluminium PVC T-slot table
|
|
|
9
|
|
Spindle power
|
3.2KW water cooling spindle
|
|
|
10
|
|
Inverter
|
3.2KW BEST inverter
|
|
|
11
|
|
Motor
|
86450B Stepper motor
|
|
|
12
|
|
Driver
|
DM860H
|
|
|
13
|
|
Control System
|
NC Studio control card
|
|
|
14
|
|
Software
|
TYPE3/ARTCAM
|
|
|
15
|
|
Application
|
Wood Acrylic PVC Engraving Cutting
|
|
|
16
|
|
Dimension(L*W*H)
|
3100*2100*1700mm
|
|
|
17
|
|
Net Weight
|
650KG
|
|
|
18
|
|
Packing Size(L*W*H)
|
3300*2200*1800mm
|
|
|
19
|
|
Gross Weight
|
1000KG
|
|
Product details
Water Cooling Spindle
Cabinet box
Stepper Motor
TBI Ball Screw
Linear guide rail
Aluminium T-slot Table
Drag chain
Auto Lubrication system
NC Studio Control Card
Tool setting block
Optional accessories
Air cooling motor
Rotary axis
DSP Control system
Dust collector
Vacuum adsorption pump
Vacuum adsorption platform
APPLICATIONS
Applicable industies: Furniture, wood door, cabinet, mdf, Arts & Crafts, wood sculptures, 3D relief Business Signs, aluminum and other soft metals.
Slotting
Cutting
Carving
Packing & Delivery
TRAINING AND USE
1. We will supply with the machine operation manua in English version for installing and operation.
2. Customers can come to our factory training
3. Our engineers can go to customer's factory training
2. Customers can come to our factory training
3. Our engineers can go to customer's factory training
WARRANTY AND AFTER SERVICE
1. 3 years with laser generator. if machine has any question exclusive of man-made damage, we can send you new parts for free with in warranty period.
2. We will supply after service 24 hours, customers can contact us any time.
3. When some problems can't be solved by
customers, our engineer can help.
2. We will supply after service 24 hours, customers can contact us any time.
3. When some problems can't be solved by
customers, our engineer can help.
machine is delivered by standardwooden case with protective cover.
About Us
Jinan ZCUT CNC Equipment Co., Ltd. was established in 2001, specializing in the production of woodworking engraving machine, Buddha engraving machine, jade engraving machine, three-dimensional engraving machine, plasma cutting machine, CNC machining lathe and other products. Our products are widely used in woodworking engraving industry, jade processing industry, Buddha image carving industry, three-dimensional sculpture technology, acrylic plastic molding industry, etc. The current production of CNC equipment products has seven series of more than 30 models. The annual production capacity is 2,000 units.
ENTERPRISE CERTIFICATION
FAQ
1.Q:This is the first time I buy the machine, is it easy to operate?
IMC:We can provide the operation manual or video for guiding. If it is hard for you
IMC:We can provide the operation manual or video for guiding. If it is hard for you
learning,we
can also help you by "Team viewer"online, with telephone or Skype explain.
2.Q:ARE YOU TRADING COMPANY OR MANUFACTURER ?
IMC : We are factory.
3.Q:Can I visit your factory?
IMC :Yes! We greatly welcome customers to visit our factory!
4.Q:What is your MOQ?
IMC :Our MOQ is 1 set machine. We could send machine to your country port directly, please
IMC : We are factory.
3.Q:Can I visit your factory?
IMC :Yes! We greatly welcome customers to visit our factory!
4.Q:What is your MOQ?
IMC :Our MOQ is 1 set machine. We could send machine to your country port directly, please
tell
us your port name. There will be best shipping freight and machine price send to
you.
