There are many advantages of mobile concrete batching plant, as follows:
1. Compact structure, concentrating almost all processes of concrete production on the trailer unit.
2. Human-machine interface is user-friendly, reliable in performance, and stable in all kinds of harsh environments.
3. Double-shaft forced mixer, continuous running ability, comprehensive mixing trajectory, strong mixing motion, fast and even mixing.
- Product Details
- {{item.text}}
Quick Details
-
Power:
-
50kW
-
Dimension(L*W*H):
-
11000*13000*17000mm
-
Weight:
-
18000 kg
-
Product name:
-
HZS40 Concrete Mixing Plant
-
Theoretical productivity:
-
40m³/h
-
Mixer type:
-
JS750
Quick Details
-
Machine Type:
-
Batching machine
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Chinese Brand
-
Power:
-
50kW
-
Dimension(L*W*H):
-
11000*13000*17000mm
-
Weight:
-
18000 kg
-
Product name:
-
HZS40 Concrete Mixing Plant
-
Theoretical productivity:
-
40m³/h
-
Mixer type:
-
JS750
Contact
Sales Manager
Carlo Zhu
E-mail: carlo@liebty.com
Whatsapp/ Wechat/Mobile: +86 19817179887
Liebty Machinery Technology (Hangzhou) Co., Ltd.
Carlo Zhu
E-mail: carlo@liebty.com
Whatsapp/ Wechat/Mobile: +86 19817179887
Liebty Machinery Technology (Hangzhou) Co., Ltd.
Address: Room 208,Building 3, No.1866, Binxing Road, Changhe street,Bingjiang District,Hangzhou,Zhejiang,China
Products Description
Factory supply HZS40 Mobile Concrete Batching Plant for sale
The mobile concrete batching plant is a concrete production equipment that integrates the material storage, weighing, conveying, stirring, unloading and automatic control system of the concrete mixing station with a trailer unit; it is all with the fixed automatic mixing station. The movement process, operation mode, maintenance and repair are exactly the same; at the same time, it has the unique characteristics of flexible movement, quick and easy disassembly and assembly, simple storage and management; it is the best matching machine in the construction of public railway, bridge, port, hydropower and other projects types.
Specifications
|
Model
|
HZS40
|
|
Max theory productivity (m3/h)
|
40
|
|
Mixer
|
JS750
|
|
Storage hopper capacity(m3)
|
3×5
|
|
Maximum size of aggregate(mm)
|
60/80
|
|
Discharge height(m)
|
3.8
|
|
Charge height (m)
|
2.9
|
|
Aggregate measuring accuracy(%)
|
±2
|
|
Cement measuring accuracy(%)
|
±1
|
|
Water measuring accuracy(%)
|
±1
|
|
Additive measuring accuracy(%)
|
±1
|
|
Total power (kw) about not including screw conveyor
|
60
|
|
Power voltage (V) /frequency (HZ)(optional)
|
AC380/50
|
|
Water flow((m3/h)
|
9
|
|
Area covered (LXW) m²
|
26X10
|
Details Images

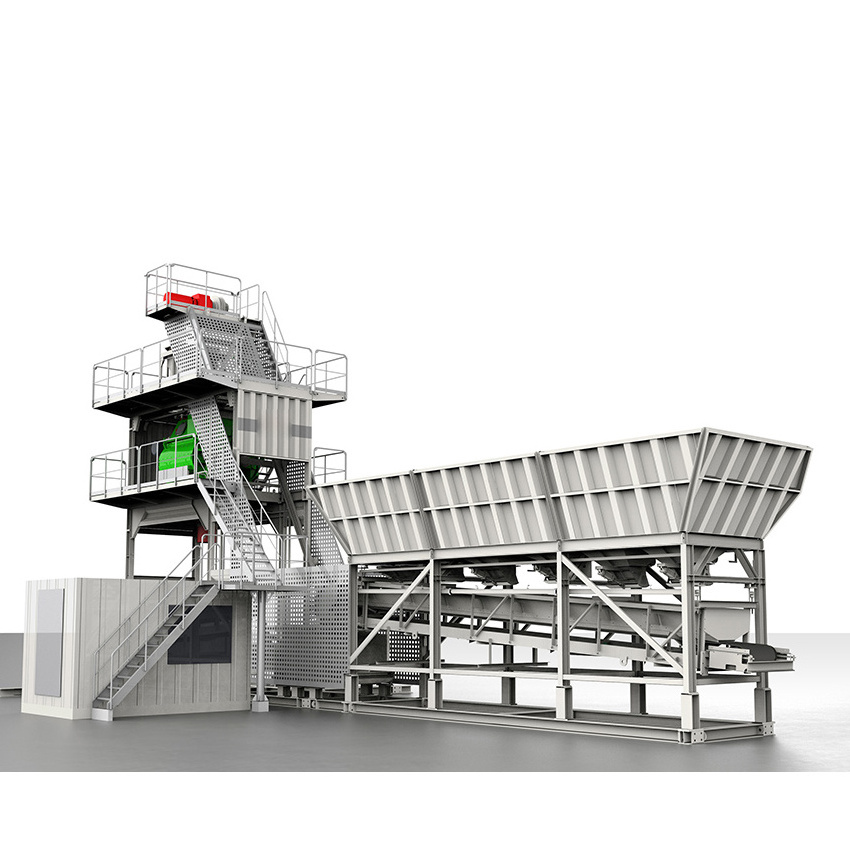

HZS40 Hopper Type Concrete Mixing Batching Plant
