Quick Details
-
Size:
-
12500*2500*4000 mm
-
Place of Origin:
-
Shandong, China
-
Compartmentation:
-
Single compartment
-
Hauling product:
-
Bitumen with density
-
Heating pipe line:
-
4 set 50mm
-
Discharge valve:
-
One set 6"outlet at rear of tank
-
Axle:
-
13 Ton Fuwa Brand
-
Breath valve:
-
2 set breath valves
-
Landing Gear:
-
28T
-
Tire:
-
11.00r20 12r22.5 315 385
-
Color:
-
Customers Optional
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
>30000 kg
-
Brand Name:
-
HY
-
Size:
-
12500*2500*4000 mm
-
Place of Origin:
-
Shandong, China
-
Compartmentation:
-
Single compartment
-
Hauling product:
-
Bitumen with density
-
Heating pipe line:
-
4 set 50mm
-
Discharge valve:
-
One set 6"outlet at rear of tank
-
Axle:
-
13 Ton Fuwa Brand
-
Breath valve:
-
2 set breath valves
-
Landing Gear:
-
28T
-
Tire:
-
11.00r20 12r22.5 315 385
-
Color:
-
Customers Optional

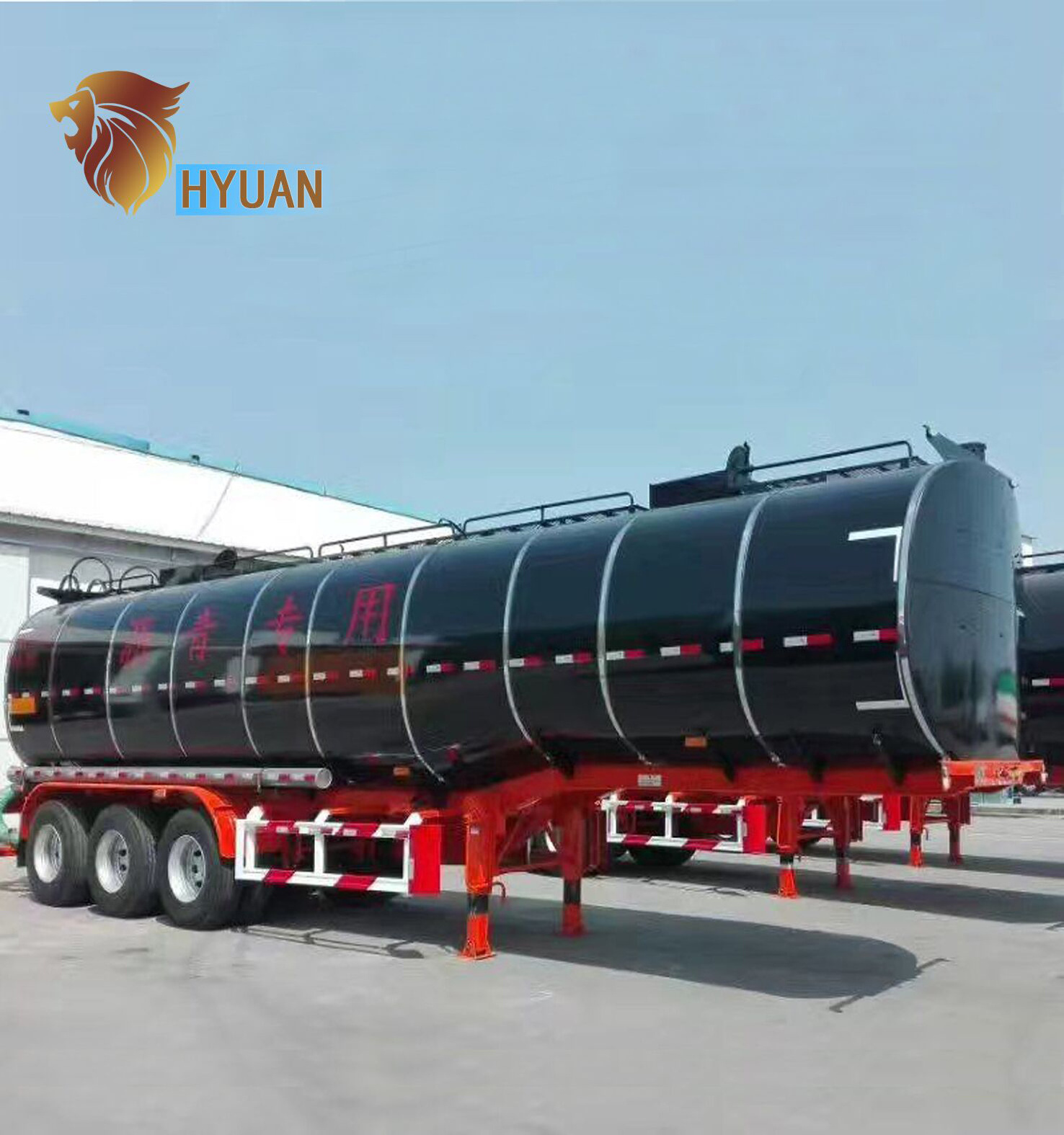

3 Axes Bitumen Truck Trailer Asphalt Liquid Bitumen Heating Storage Truck
Product Description
Features:
1.Can design different volume of tank body.
2.Tank material can be carbon steel,stainless steel,aluminum for different kinds of liquid transporting.
3.Can be with different kinds of heating system: coal heating ,diesel heating or other kind of heating type.
4.Axles number can be 1,2,3,4 axles or superlink axles for transporting different weight liquid.
5.Pump for loading and unloading optional
1.Can design different volume of tank body.
2.Tank material can be carbon steel,stainless steel,aluminum for different kinds of liquid transporting.
3.Can be with different kinds of heating system: coal heating ,diesel heating or other kind of heating type.
4.Axles number can be 1,2,3,4 axles or superlink axles for transporting different weight liquid.
5.Pump for loading and unloading optional
Specification
|
1.General Info:
|
|
|
|
Capacity: |
45.000 liters |
|
|
Hauling product: |
Bitumen with density 1.15 |
|
|
Overall dimension: |
12500*2500*4000 mm
(Final dimension depends on the final design drawings) |
|
|
Tankshell
|
|
|
|
Material
|
Carbon steel Q345 |
|
|
Dished end |
6 mm thick steel Q345.All single heads dished and flanged |
|
|
Tank shell |
Q345,5mm5 mm thick steel Q345
|
|
|
Baffle &anti-wave plate |
Q345,4mm4 mm thick steel Q345
|
|
|
Hydrostatic test |
Pressure Testing-hydrostatic 150kpa each compartment |
|
|
Insulation &Cladding
|
Tank body: Covered with steel sheeting.Fastened by full circum clamp rings with rubber seal |
|
|
Heating pipe line |
4 set 50mm diameter heating pipe coils inside the tank body connected to burner |
|
|
3. Components
|
|
|
|
Manhole cover |
2 sets 500mm diameter quick-open type manhole cover
|
|
|
Breath valve |
2 set breath valves |
|
|
Discharge valve |
One set 6”outlet at rear of tank |
|
|
Thermometer |
1 set measurement range 0℃~300℃ |
|
|
Hose and hose carrier |
1nos(LHS)and 1nos(RHS)hose carrier to fit 66 meter hose close tvpe complete bracketsto beinstalled at discharge side. |
|
Packing & Delivery
Nude and wax, shipped in bulk cargo ship, flat deck or RO-RO
(1)Wax:
Do wax spray process to against the trailer body suffer seawater corrosion during shipping
(2)Package:
Stable fixing with steel wire,to protect the trailer during shipping
(3)Shipping:
Reliable logistic service from famous freight supplier makes transport process safely and promptly
