- Product Details
- {{item.text}}
Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
Ezcad
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
ASM Laser
-
Marking Head Brand:
-
sino-galvo
-
Weight (KG):
-
58 KG
-
Core Components:
-
laser source
-
Mode of Operation:
-
Pulse
-
Configuration:
-
desktop
-
Feature:
-
protable
-
Product name:
-
50w fiber laser engraving machine
-
Laser source:
-
50w raycus
-
marking surface:
-
flat or round surface
-
Cooling method:
-
Air Cooling
-
Laser head:
-
Sino-galvo
-
Power supply:
-
Taiwan Meanwell
-
Laser Power:
-
20w 30w 50w, 60w, 100w, 120W
-
Marking Depth:
-
0.1-1mm
-
Applicable Material:
-
Metal Aluminum Stainless Steel gold silver brass..
Quick Details
-
Working Accuracy:
-
0.001
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP, JPG
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
Ezcad
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
ASM Laser
-
Marking Head Brand:
-
sino-galvo
-
Weight (KG):
-
58 KG
-
Core Components:
-
laser source
-
Mode of Operation:
-
Pulse
-
Configuration:
-
desktop
-
Feature:
-
protable
-
Product name:
-
50w fiber laser engraving machine
-
Laser source:
-
50w raycus
-
marking surface:
-
flat or round surface
-
Cooling method:
-
Air Cooling
-
Laser head:
-
Sino-galvo
-
Power supply:
-
Taiwan Meanwell
-
Laser Power:
-
20w 30w 50w, 60w, 100w, 120W
-
Marking Depth:
-
0.1-1mm
-
Applicable Material:
-
Metal Aluminum Stainless Steel gold silver brass..

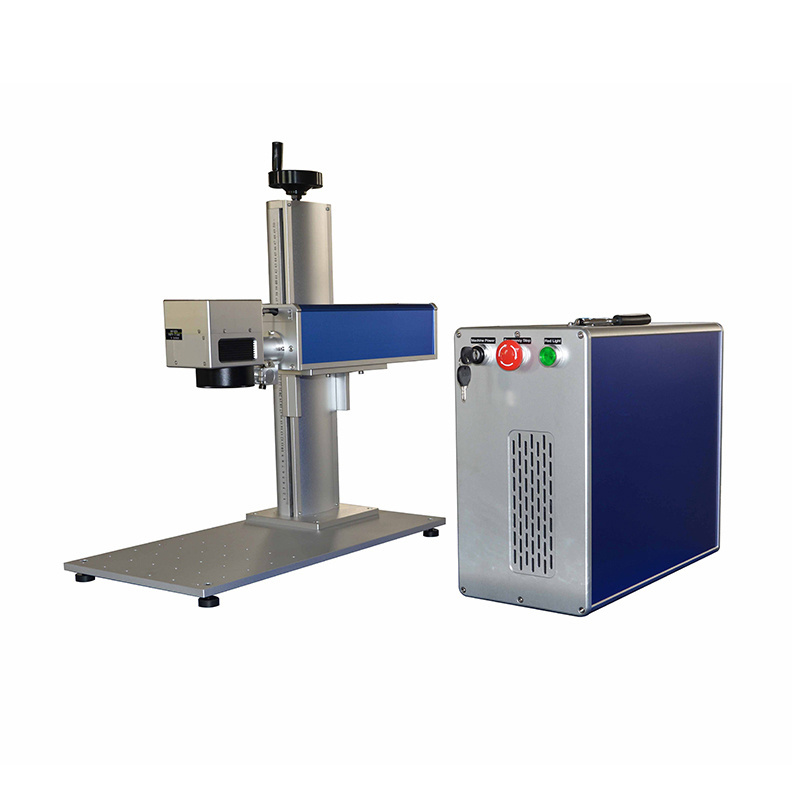

50W fiber laser marking engraving machine for jewelry
Functions: This fiber laser marking machine can laser marking / printing / engraving / cutting on all metal material and some plastic material.
It has 2D, 2.5D, and cutting functions for option.
This 50w fiber laser marking machine is suitable for marking custom logo, text, symbol, pattern,
barcode, 2D code, serial number, etc.
Applicable material : Gold, copper, silver, aluminum, anodized aluminum, stainless steel, carbon steel, chrome, alloy, plated metal, PVC plastic, ABS, etc
Main Features:
1. Laser marking machine can mark on flat surface, or round objects.
2.Working area: 110*110mm-300*300mm for option
3. Fiber Laser source: China top brand Raycus and JPT for option. Lifetime is up to 100000+ hours.
4. High speed galvo scanner head: china famous brand " sino-galvo" or JCZ.
5 . double red ponter to adjust focus distance easily, e asy to marking on different workpiece .
7. No consumables, free maintenance
8. High precision, fast marking. Air cooling, small size,low power consumption.
ACCESSORIES
|
30w 50w 60w 100w 120w fiber laser marking machine |
1set |
|
U disk |
1 piece |
|
Hexagon tools |
1 piece |
|
fixed position Bar |
2 pieces |
|
Foot switch |
1 piece |
|
Test metal cards |
1 Package |
|
Power wire |
1 piece |
|
USB wire |
1 piece |
|
Screw |
1 package |
|
Laser Goggles |
1 piece |
When you receive the laser marking machine, just need just need simple installation, connect with power cord, then machine can start work. Because the marking software is installed in computer, engineer have set the parameters well before delivery. Also, the complete English user manual and operation video will be sent to you. 99% customers can easily use the machine.
2> How to get technical support after purchasing the fiber laser marking machine?
We provide lifetime technology support and spare parts supply. You can contact us by Skype, WhatsApp, wechat and email at any time. Our professional engineer will solve your problem perfectly. If you need any remote assistant support, we will support you with Team viewer.
3> Will the laser marking machine come with protective goggle?
Yes, we will provide it with the machine together free of charge.
4> Is there any consumables for the fiber laser marker machine ?
Re: There is no consumables and maintenance-free. Laser lifetime up to 100000+ hours.
5> How do you test your fiber laser marker machine?
All our machines are fully-checked and Pass 24 hours performance test by QC department before shipment. For Most of fiber laser machine, we provide 2 years warranty period.
