- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
YUXI
-
Dimension(L*W*H):
-
reference the particulars
-
Weight:
-
reference the particulars
-
Certification:
-
ISO9001:2000
-
feeding size:
-
Max 190 mm
-
Capacity:
-
5-270 t/h
-
Usage:
-
Mining Crushing
-
Processed Materials:
-
Iron Ore/basalt/limestone/pebble
-
Color:
-
customized
-
Factory visit:
-
Welcomed Warmly
-
Test&Installation:
-
Senior Professional Engineers Assigned
-
Installation:
-
Foundation Drawing/Engineer Guide
Quick Details
-
Application:
-
pebble,limestone,basalt different grades crush
-
Capacity(t/h):
-
5-270
-
Place of Origin:
-
china (mainland)
-
Brand Name:
-
YUXI
-
Dimension(L*W*H):
-
reference the particulars
-
Weight:
-
reference the particulars
-
Certification:
-
ISO9001:2000
-
feeding size:
-
Max 190 mm
-
Capacity:
-
5-270 t/h
-
Usage:
-
Mining Crushing
-
Processed Materials:
-
Iron Ore/basalt/limestone/pebble
-
Color:
-
customized
-
Factory visit:
-
Welcomed Warmly
-
Test&Installation:
-
Senior Professional Engineers Assigned
-
Installation:
-
Foundation Drawing/Engineer Guide

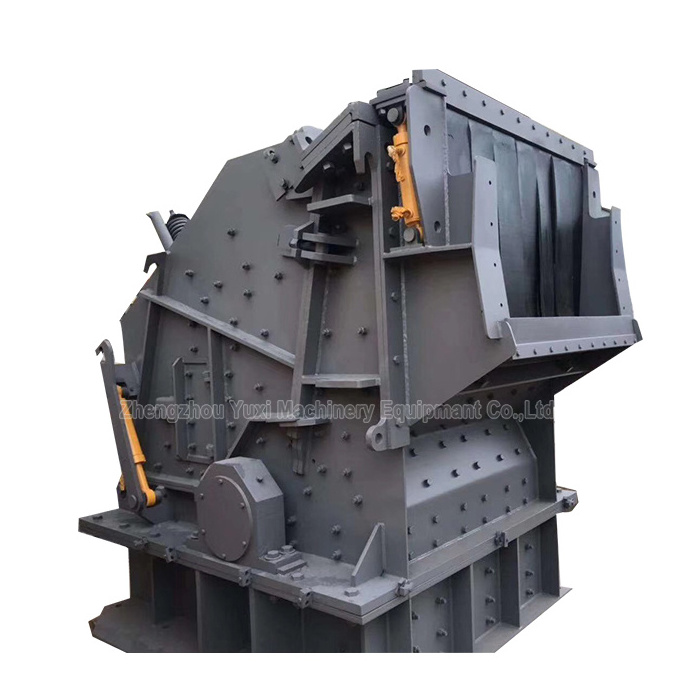

PXJ series of high efficient stone fine crusher / sand making machine/rock breaking chemical in hyderabad
Product Description
High Efficient Fine Crusher
High-efficient impact crusher produces a high ratio of reduction. The impact crusher is built for durability and simplicity of operation. Adjustment is easy from the exterior of the crusher. Maintenance is simple through inspection doors, and electric power unit is standard.
Technical Parameter
|
PXJ Fine Crusher
|
Rotor ø×width(mm)
|
|
|
|
|
|
|
||||||
|
Specification
|
800×400
|
800×600
|
800×800
|
1010×1010
|
1200×1200
|
1400×1400
|
1600×1600
|
||||||
|
Size of Feed Opening (mm)
|
400×185
|
500×250
|
550×300
|
1000×350
|
1200×450
|
1500×500
|
1600×550
|
||||||
|
Feed Size (mm)
|
＜120
|
＜180
|
＜180
|
＜180
|
＜180
|
＜190
|
＜190
|
||||||
|
Discharge Size (mm)
|
0-10
|
0-10
|
0-10
|
0-10
|
0-10
|
0-10
|
0-10
|
||||||
|
Adjust Width of Discharge Seam (mm)
|
5-50
|
5-50
|
5-50
|
5-50
|
5-50
|
5-50
|
5-50
|
||||||
|
Cement Clinker (t/h)
|
10-30
|
10-40
|
20-45
|
25-55
|
35-90
|
50-150
|
85-210
|
||||||
|
Limestone (t/h)
|
18-45
|
23-55
|
28-65
|
35-75
|
45-110
|
50-150
|
95-260
|
||||||
|
Matching Power (kw)
|
4P 37KW
|
4P 45KW
|
4P 45KW
|
4P 55KW
|
6P 110KW
|
6P 160KW
|
4P 250KW
|
||||||
|
Theoretical Weight (T)
|
3.9
|
4.5
|
6
|
10.5
|
14.4
|
22
|
35
|
||||||
Final products
Application
River pebble, granite, basalt, limestone, cement clinker, quartz stone, iron ore, bauxite, etc.Make abrasive, refractory materials, cement, quartz sand, steel sand, slag powder, copper ore, iron ore, gold ore, concrete aggregate, asphalt aggregate and other hard, brittle materials of fine and in the break.
It is suitable for high grade highway, railway, water conservancy, airport, construction, cement, material resistant, gold treatment and other industries.
Advantage
1>Hammer is made of high chrome; liner board is made of wearable materials;
2>Specially designed tooth impact plate;
3>More suitable for crushing hard rock, high efficiency, low consumption;
4>Final products is cubic, discharge opening is adjustable;
5>Make the crushing flow chart simple.
structure
Working Principle
Fine impact Crusher is a kind of impact and rotor crusher with ring hammers. When the material enters into the crusher, it will be crushed by the high speed ring hammer firstly. Crushed materials obtain kinetic energy from ring hammer at the same time, rush to the breaking plate with high speed, by the second break, then fell on the screen plate, materials is crushed further by cutting, pressure, grinding from ring hammer and interaction each other, discharged from screen. The sundries cannot be crushed come into the metal collector, cleaning regularly.
Packing & Delivery
Packaging:standard Container, Nude Packs or in Bulk.
Shipping:
we deliver the cargo to China's main sea ports,such as Qingdao,Tianjin,Shanghai etc.And then the container will be transported to your country by sea.
Our Company
YUXI machine equipment Co., Ltd
is a leader in the manufacture, and distribution of Mining Machinery in China.Unique has been dedicated to producing Mining machinery for 30 years. We take pride in manufacturing our mining machinery, and the chance to serve the varied needs of our customers worldwide. Our brand is recognized worldwide for our high quality, reliability, and our customer service.
We currently supply over 60 different countries with our products, include three categories:
Stone Crushing & Screening Plants, Portable Crushing Plants, and Complete Crushing Plants. Our primary products are
Jaw Crushers, Impact Crushers, Hydraulic Cone Crushers, Spring Cone Crushers,Hammer Crusher,High Efeeiciency Fine Crusher, Vibrating Screens, Vibrating Feeders, Portable Crushing Plants and Aggregate Crushing Plants.
Our products are available for countless use, meeting all of our customers' special needs.
FAQ
Q1.How long is the warrenty of your equipments? Does your company supply the spare parts?
The warranty period of crusher equipments is one year. Yes, we supply the spare parts for you at lowest cost and we have a professional after-sale service team to promptly and thoroughly solve your problems.
Q2. What Information should customers give us, So that we can be able to provide you suitable quotation and service.
1.What minerals are you separating?
2.What's the maximum size of your raw minerals?
3.How much capacity do you need per hour for your project?
Q3.Can you test our samples?Do you provide beneficiation flow chart?
Yes. You can send your samples to us for test and analysis. Our experienced engineers are specialized in designing process flow for various ores beneficiation, including iron ore, tin ore, copper ore, gold ore, lead zinc ore, manganese ore, etc.
Q4. If I need the complete crushing plant can you help us to build it?
Yes, we can help you combine a complete crushing line and give you related professional advices as long as you need. We had already build many mining projects in China & Overseas.
