Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Rayborn
-
Model Number:
-
RB-FLL-500WSD
-
Color Temperature(CCT):
-
6000, warm white, pure white, cold white flood outdoor lights
-
Beam Angle(°):
-
20/40/60/90/60*150°
-
CRI (Ra>):
-
80
-
Input Voltage(V):
-
AC100-277V
-
Lamp Luminous Efficiency(lm/w):
-
140, 130lm/w reflector led 500w flood
-
Lamp Luminous Flux(lm):
-
140lm/w, 65000lm outdoor lighting projector lamp module
-
Working Lifetime(Hour):
-
50000
-
Power Driver:
-
Meanwell driver led tunnel light 500w
-
LED Junction Temperature:
-
≤115℃ anti-glare gymnasium led light
-
Warranty:
-
5 years outdoor waterproof led floodlight
-
Beam angle:
-
60/90/60*150° 500w led spotlight stadium light
-
Power Efficiency:
-
>92% external flood light
-
CCT:
-
3000K,4000K,5000K,6000K,stadium lighting floodlight
-
Dimmable:
-
0-10V,PMMA,Dali dimmable led flood light
Quick Details
-
Warranty(Year):
-
5-Year
-
Lighting solutions service:
-
DIALux evo layout, auto CAD layout
-
Control Mode:
-
Remote Control, Sensor control
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Rayborn
-
Model Number:
-
RB-FLL-500WSD
-
Color Temperature(CCT):
-
6000, warm white, pure white, cold white flood outdoor lights
-
Beam Angle(°):
-
20/40/60/90/60*150°
-
CRI (Ra>):
-
80
-
Input Voltage(V):
-
AC100-277V
-
Lamp Luminous Efficiency(lm/w):
-
140, 130lm/w reflector led 500w flood
-
Lamp Luminous Flux(lm):
-
140lm/w, 65000lm outdoor lighting projector lamp module
-
Working Lifetime(Hour):
-
50000
-
Power Driver:
-
Meanwell driver led tunnel light 500w
-
LED Junction Temperature:
-
≤115℃ anti-glare gymnasium led light
-
Warranty:
-
5 years outdoor waterproof led floodlight
-
Beam angle:
-
60/90/60*150° 500w led spotlight stadium light
-
Power Efficiency:
-
>92% external flood light
-
CCT:
-
3000K,4000K,5000K,6000K,stadium lighting floodlight
-
Dimmable:
-
0-10V,PMMA,Dali dimmable led flood light
Outdoor High Power 300W 400W Led Stadium Light Replace 1000W 2000W Halogen Led FloodLight 500w 400w 300wattt
|
Brand |
Rayborn |
|
|
Chipset |
140lm/w | |
|
LED power |
4 00W |
|
|
Power Efficienc y |
>94% |
|
|
The color of the lamp shell |
Black / Silver |
|
|
Color Rendering Index(CRI) |
Ra>80 |
|
|
Color Temperature |
3000k-5500k-7000k |
|
|
View Angle |
60/90/60*150° |
|
|
Material |
Aluminum |
|
|
Light Distribution Curve(Beam Pattern) |
Symmetric expression/Circular glare/square luminous spot |
|
|
System Consumption: |
405W |
|
|
LED QTY |
512pcs |
|
|
IP rating |
IP65 |
|
|
Working Lifetime |
>50000 hours |
|
|
Power Driver |
Meanwell |
|
|
Input Voltage |
AC100-277V |
|
|
Frequency Range |
50-60Hz |
|
|
Power Factor(PF) |
0.98-0.99 |
|
|
Total Harmonic Distortion(THD) |
< 15% |
|
|
Storage Temperature |
-40 ℃ --+80 ℃ |
|
|
Working Environment |
-40 ℃ --+50 ℃ ;10%-95%RH |
|
|
Junction Temperature(Tj) |
60 ℃ ± 10%(ta=25 ℃ ) |

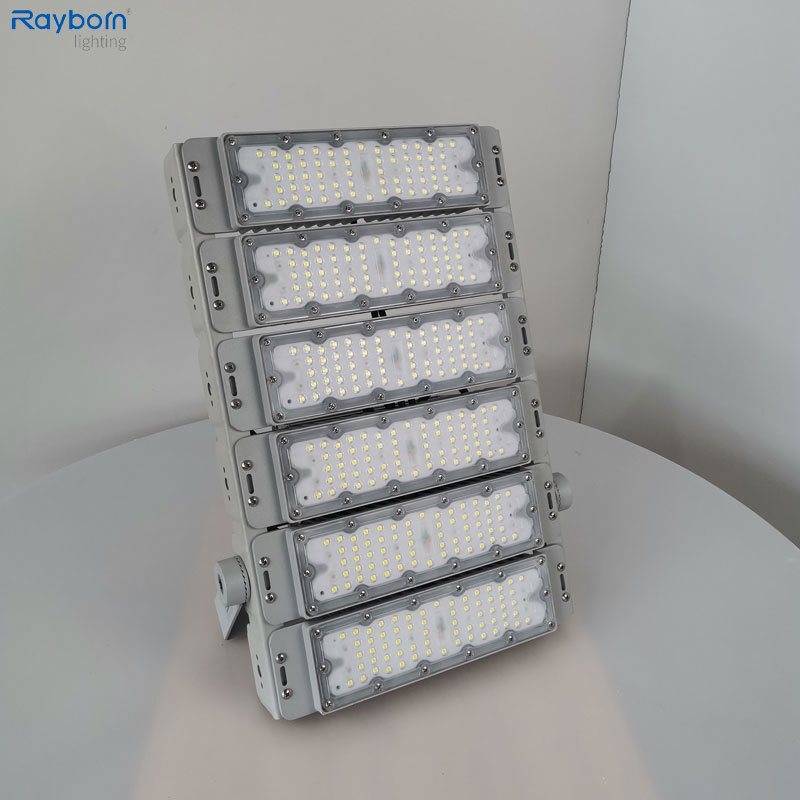

Images of 400W 500W led flood light , Led module 100-277V 500W
LED Flood light Features
LED Chip
:
140lm/w
LED Chips which is the most famous Brand in chips field, high efficiency high lumuns and long lifespan, high quality.
Power Supply:
LED flood light use Meanwell approved driver, IP65 and high quality, it improved lights performance. Power efficiency ≥92.
Colour temperature:
LED floodlight provide a range of colour temperatures from 3000, 4000 and 6000 Kelvin helping to enhance a building's exterior.
Optics:
Optical assembly: hermetically sealed providing IP65. Great light uniformity: Thanks to the advance LED optical systems the fixture maximize the utilization of light onto the target area, improving the uniformity of light.
Housing:
Die cast aluminum housing electrostatically sprayed with a polyester powder paint finish, following anti-corrosion priming, and oven cured at 180oC.
Cable:
silicon rubber cable for power input. Fasten with screw in the cable gland.
Warranty:
5
years. Do not attempt to take housing apart as this will ruin the seal and void all warranty.
Certification:
FCC CE RoHS approval.
Quality Control:
Rigorous product testing includes high-low temperature tests, waterproof tests, shockproof tests, burn-in testing, tensile test, salt spray test and more to ensure long-term performance.
Angle Adjustable:
Adjustable stainless steel mounting bracket allows you to direct light where you need it.
More chioces for led flood lights 50w-500w
500w LED Flood Light Dimension
Standard Tennis court 500W led flood light light plan simulation:
Applications of led flood light
1. Instead of the fluorescent lights indoors
2. School / Universities / Hospital
3. Conference / Meeting room / Show Room
4. Commercial establishments
5. Factories / Offices
6. Super-markets
7. Residential / Institution buildings
8. Government lighting engineering, airport, subway, elevated overpass, billboard stadium,
9. Building external walls landmarks such as the landscape lighting
Warranty and Warranty terms
We offer 5 year guarantee on the condition of the light is used under normal environment and suitable maintenance and storage; any normal using within guarantee, we provide the repair, exchange(the components and parts)or replace the new item for your options. Exceeding the guarantee time, appropriate cost for the material and the labor should be charged.
Packing details about led floodlight
1). Label on backside of each box and your required label are available;
2). One piece per carton;
3). Regular packing, also can be customeized according to customer's requirements.
Shipping ways
1. Express: By UPS/DHL/FEDEX/TNT it takes 3- 5 days to arrive the destination.
2. Air cargo: It takes about one week to arrive the destination.
3. Sea shipment: It takes about one month to arrive the destination, depending on your actual requirements
