Quick Details
-
CRI (Ra>):
-
80
-
Input Voltage(V):
-
DC5V
-
Lamp Luminous Flux(lm):
-
18-20lm/led
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-40 - 60
-
Color Rendering Index(Ra):
-
85
-
Product Name:
-
Ultra Thin Side View LED Digital Bar
-
LED Chip:
-
SK6812SIDE SMD 4020
-
Color Available:
-
Full color
-
LED Quantity:
-
60 LEDs/0.5m
-
PCB Size:
-
500*5mm
-
IP Rating:
-
IP20
-
Beam Angle:
-
120 Degree
-
Lamp Power:
-
15W
Quick Details
-
Color Temperature(CCT):
-
RGB
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
B005060IA3SA1
-
CRI (Ra>):
-
80
-
Input Voltage(V):
-
DC5V
-
Lamp Luminous Flux(lm):
-
18-20lm/led
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-40 - 60
-
Color Rendering Index(Ra):
-
85
-
Product Name:
-
Ultra Thin Side View LED Digital Bar
-
LED Chip:
-
SK6812SIDE SMD 4020
-
Color Available:
-
Full color
-
LED Quantity:
-
60 LEDs/0.5m
-
PCB Size:
-
500*5mm
-
IP Rating:
-
IP20
-
Beam Angle:
-
120 Degree
-
Lamp Power:
-
15W
new led side lighting full color 60leds 0.5m rgb 15w rigid strip light led pixel bar
Product Description
-This bar looks like the same as other ultra thin board 5mm width but it included 60pcs side view and addressable LED (SK6812 Side) which means the board's thickness comes 3mm.
-The bar's biggest feature is side light emitting.
Wow, look, it has a wide range of application where dont have big gap to install the led strip, now you have one more option.
Product Features
| Product Name | Ultra Thin Side View LED Digital Bar |
| LED type | SK6812SIDE |
| LED Qty | 60LEDs/pcs |
| Color | full color |
| Control (IC) | SK6812 |
| Voltage | DC5V |
| Power | 15W/0.5m |
| PCB size | L 500* W 5* H 4 mm |
| Luminosity Luminosity | R:90000mcd G:132000mcd B:6000mcd |
| Wavelength | R:620-625nm G:520-525nm B:465-470nm |
| Brand | iPixel LED |
| Warranty | 2 Years |
| IP Rate | IP20 |

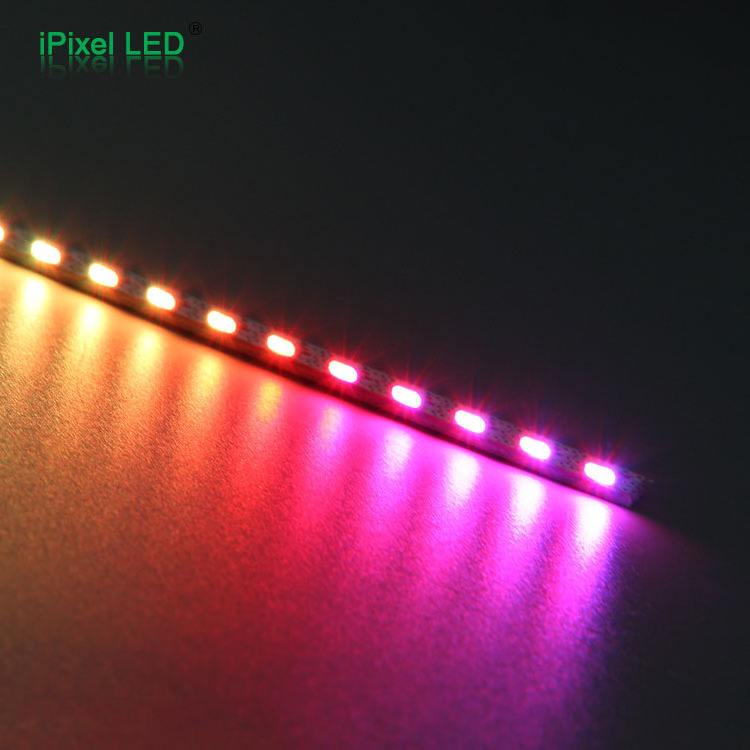

Product Pictures
