Quick Details
-
Warranty(Year):
-
3-Year
-
Color Temperature(CCT):
-
2700-6500K, 2700-6500
-
Input Voltage(V):
-
AC85-265V
-
Model Number:
-
PL-TD-058-10W
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Working Temperature(℃):
-
-50 - 50
-
LED Light Source:
-
COB
-
Product name:
-

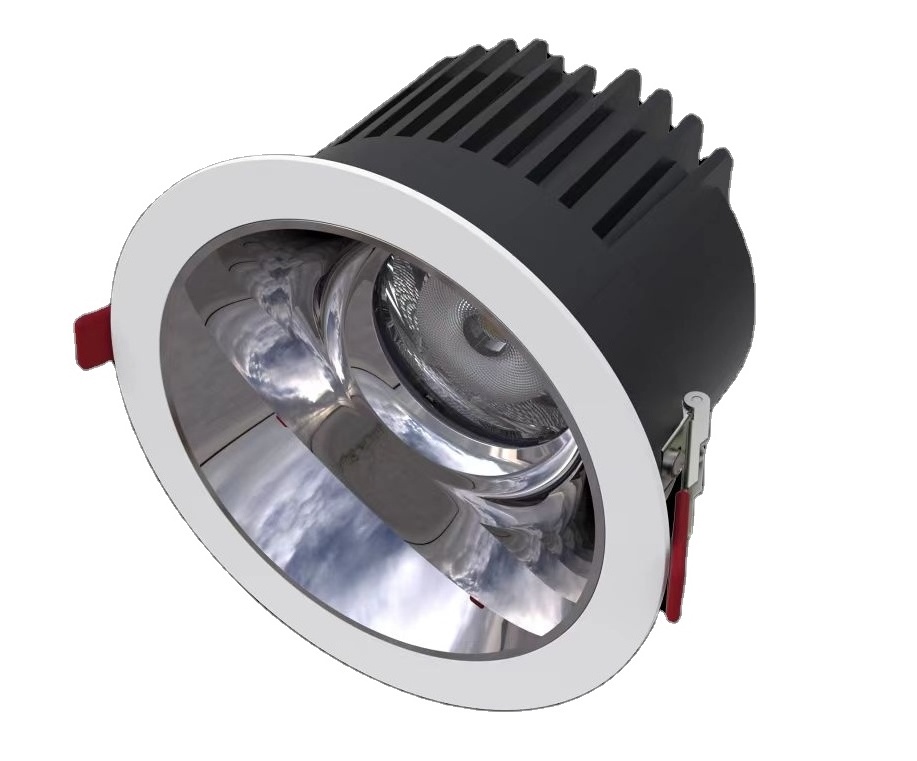

Led Ceiling Downlight
-
Power:
-
9W 18W 20W 30W 40W
-
Beam angle:
-
20°40°
-
Material:
-
Aluminum + Frosted Pc Cover
-
Keyword:
-
LED Recessed Lighting Housing
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
100
-
Lamp Body Material:
-
Aluminum Alloy
-
Install Style:
-
Embeded
-
Warranty(Year):
-
3-Year
-
Color Temperature(CCT):
-
2700-6500K, 2700-6500
-
Input Voltage(V):
-
AC85-265V
-
Model Number:
-
PL-TD-058-10W
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Working Temperature(℃):
-
-50 - 50
-
LED Light Source:
-
COB
-
Product name:
-
Led Ceiling Downlight
-
Power:
-
9W 18W 20W 30W 40W
-
Beam angle:
-
20°40°
-
Material:
-
Aluminum + Frosted Pc Cover
-
Keyword:
-
LED Recessed Lighting Housing
led down light ,led spot light,led downlight, led spot down light,led flood light,led ceiling light,cob led down lihgt ,smd led downlight
IP65.5 3 4 5 inch waterproof aluminum deep anti-glare LED downlight bathroom 7W 10W 12W 15W 20W 25W 30W 35W 40W spot Down light
Long life aluminium alloy cob CCT adjustable 5 years warranty round swivel and scoop downlight
Recessed Led Downlight Recessed Professional Made White Low Price 10w 15w 20w 30w 40w for Washroom IP65 Luminous Light Body Lamp
Datasheet
|
Model |
PL- TD-058 |
|||
|
Power |
10-15 W |
20 W |
30 W |
36-40 W |
|
Dimension |
Φ 90XH68 mm |
Φ 95XH80 mm |
Φ 140XH80 mm |
Φ 170XH105 mm |
|
C utout Dimension |
75-80mm |
75-80mm |
120-130mm |
145-160mm |
|
Luminous Flux |
100-110 lm/w % |
|||
|
LED Source |
Bridgelux COB |
|||
|
Input Voltage |
AC 10 0~2 77 V |
|||
|
Frequency Range |
50~60Hz |
|||
|
Power factor |
> 0.9 |
|||
|
Total Harmonic Distortion |
< 20 % (Typical : 10 %) |
|||
|
Color Temperature |
3000 K ,40 00K, 5 000K, 65 00K |
|||
|
Color Rendering Index |
CRI> 80, 90 |
|||
|
IP Rating |
IP 20 |
|||
|
Beam Angle |
20 ° /40 ° |
|||
|
Housing Color |
Gray/Black |
|||
|
Working Life |
>50,000 hours |
|||
|
Warranty |
5 years |
|||
|
Storage Environment |
-30ºC~+ 80 ºC, 10%~90% RH |
|||
|
Working Environment |
-30ºC~+50ºC, 2 0%~90% RH |
|||
|
Body & Shade Material |
Die-casting Aluminum housing & PC lens |
|||
|
Where Can Use |
Homes, offices, hotels, shopping malls, restaurants and other indoor occasions |
|||
Specifications
1. Light source:High power SMD2835
2.Driver approved CE&RoHS , SAA ,TUV
3. 2.5inch ,4inch ,5inch ,6inch, 8inch ,10inch led down light
4. 3W. 5W.10W.15W.20W.25W.30W ,40W,50W,60W led down light
Advantage:
1.The higher luminous efficiency and lower light fades,extraordinary lightness 2.stable quality transformer,over voltage/current protection
3.Built-in driver with wire connector, easy install
4. High brightness, energy saving & environmentally friendly products
Application :
Widely used in household, hotel room ,show room, corridor, hotel lobby, public place of entertainment and so on
Our Service: 1>. Fast deilvery: For samples 3 working day. For bulk order: 5-12working days. We produce over 2000PCS LED spotlight /day. 2>. Good Quality control: We have our own LEDs Encapsulation room, we produce LED drivers by ourselves.
Q: Can we get a sample to test?
A : Yes , we can provide sample to you for testing, just please inform the specific models , size , power , color temperature.
Q: What's the delivery time?
A : Around 3~5 days after get payment for samples, 7-10 working days after get deposit for mass order.
Q: Do you have the technic supports ?
A: Of course, after you receive the lamps, if you have any questions, please tell us, We can try my best to help you .
Q: What's the payment term?
A : We accept TT , Western Union,L/C . For samples , full payment is required upon order confirmation. For mass orders, 30% deposit upon order confirmation and 70% balance before shippment.
