- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
1200*1150*1050 mm
-
Weight:
-
1050kg
-
Machinery Function:
-

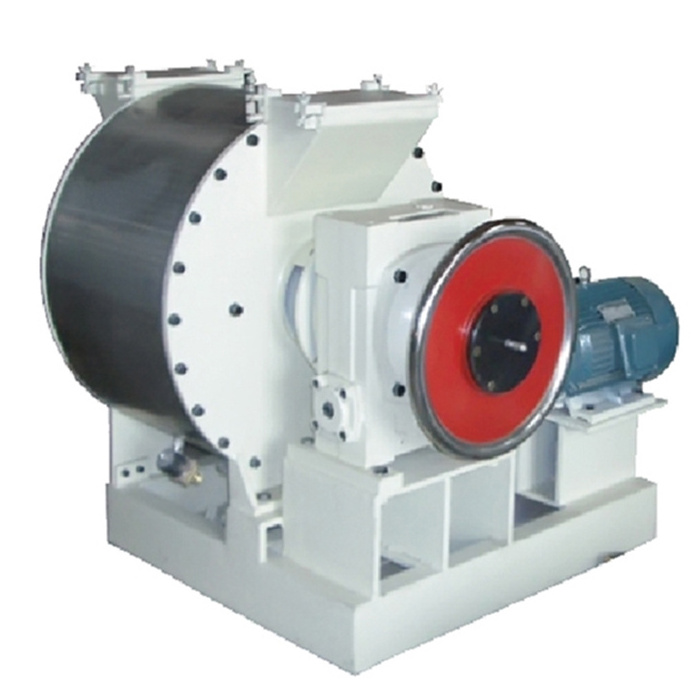

Chocolate conche is used in fine grinding of chocolate mass.it is the main equipment in chocolate production line
-
Output product name:
-
Chocolate
-
Product name:
-
chocolate conche
-
Color:
-
Silver
-
Capacity:
-
100L
-
Material:
-
carbon steel
-
Main motor power(kw):
-
5.5
-
Electrical heating power(kw):
-
2.5
-
Certification:
-
ISO9001 CE
Quick Details
-
Place of Origin:
-
Jiangsu, China, Jiangsu, China
-
Voltage:
-
Customized
-
Power:
-
5.5kw
-
Dimension(L*W*H):
-
1200*1150*1050 mm
-
Weight:
-
1050kg
-
Machinery Function:
-
Chocolate conche is used in fine grinding of chocolate mass.it is the main equipment in chocolate production line
-
Output product name:
-
Chocolate
-
Product name:
-
chocolate conche
-
Color:
-
Silver
-
Capacity:
-
100L
-
Material:
-
carbon steel
-
Main motor power(kw):
-
5.5
-
Electrical heating power(kw):
-
2.5
-
Certification:
-
ISO9001 CE
|
Model
|
20
|
100
|
500
|
1000
|
1500
|
2000
|
3000
|
||||||
|
Machinery Function
|
Chocolate conche is used in fine grinding of chocolate mass it is the main equipment in chocolate production line
|
|
|
|
|
|
|
||||||
|
Capacity
|
20L
|
100L
|
500L
|
1000L
|
1500L
|
2000L
|
3000L
|
||||||
|
Grinding Fineness(micron)
|
20-25
|
20-25
|
20-25
|
20-25
|
20-25
|
20-25
|
20-25
|
||||||
|
Main Axle Rotating Speed(rpm)
|
93
|
48
|
33
|
35
|
35
|
35
|
35
|
||||||
|
Grinding time(h)
|
8-10
|
12-16
|
16-22
|
16-22
|
16-22
|
16-22
|
16-22
|
||||||
|
Voltage
|
customization
|
customization
|
customization
|
customization
|
customization
|
customization
|
customization
|
||||||
|
Main moter power(kw)
|
1.5
|
5.5
|
15
|
22
|
30
|
37
|
45
|
||||||
|
Electrical heating power(kw)
|
0.6
|
2.5
|
5
|
2*2
|
6
|
3*2
|
12
|
||||||
|
Warranty
|
1 Year
|
1 Year
|
1 Year
|
1 Year
|
1 Year
|
1 Year
|
1 Year
|
||||||
|
Weight
|
295
|
1050
|
2572
|
3050
|
4850
|
5350
|
7500
|
||||||
|
Dimension(L*W*H)
|
920*600*1110
|
1200*1150*1050
|
2465*1146*1312
|
2627*1280*1520
|
2918*1650*1920
|
3040*1912*1920
|
3450*2016*2280
|
||||||
|
Place of Origin
|
China
|
China
|
China
|
China
|
China
|
China
|
China
|
||||||
Q1: What is your warranty period?
A1: Our warranty is 12 months or 14 months after shipment.
Q2: Will you test the machine after manufacturing?
A2: Yes. All our machines will be tested with oil or raw materials before shipping by our technician.
Q3: Can you supply machines which conform to European Standard or American standard?
A3: Yes. We exported our machines to USA, Canada, Hungary and Belgium, etc.
Q4: What’s the raw material of lining bars and blades?
A4: Both of them are manganese steel. Moreover, every piece of lining bars will be processed by heating system to improve their
hardness.
Q5: Do you provide recipe if customer buys conche refiner?
A5: Yes, we can provide a basic recipe, then customer can adjust the recipe according to customer's local market demand.
Q6: Do you provide instruction manual and maintenance schedule?
A6: Yes. We will provide detailed instruction manual and maintenance schedule before shipping.
Q7: Can you make customized conche refiner?
A7: Yes, we can customize our conche refiners according to customer’s requirements, like PLC control, vent fan, sampling valve,
etc.
A1: Our warranty is 12 months or 14 months after shipment.
Q2: Will you test the machine after manufacturing?
A2: Yes. All our machines will be tested with oil or raw materials before shipping by our technician.
Q3: Can you supply machines which conform to European Standard or American standard?
A3: Yes. We exported our machines to USA, Canada, Hungary and Belgium, etc.
Q4: What’s the raw material of lining bars and blades?
A4: Both of them are manganese steel. Moreover, every piece of lining bars will be processed by heating system to improve their
hardness.
Q5: Do you provide recipe if customer buys conche refiner?
A5: Yes, we can provide a basic recipe, then customer can adjust the recipe according to customer's local market demand.
Q6: Do you provide instruction manual and maintenance schedule?
A6: Yes. We will provide detailed instruction manual and maintenance schedule before shipping.
Q7: Can you make customized conche refiner?
A7: Yes, we can customize our conche refiners according to customer’s requirements, like PLC control, vent fan, sampling valve,
etc.
