Quick Details
-
Internal Dimensions(l x W x H)(mm):
-
5.899 x 2.352 x 2.393 m
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
LongTeng
-
Keyword:
-
milk transportation container
-
Main Material:
-
Q345 (frame), stainless steel (shell)
-
Standard:
-
ASME VIII Div 1
-
Certification:
-
LR for frame, BV for shell
-
Corner castings:
-
ISO 1161
-
Corrosion Allowance:
-
0.2mm
-
Shell Thickness:
-
4.4 mm
-
Ends Thickness:
-
4.7 mm min after forming
-
Application:
-
For transportation & storge cargoes
Quick Details
-
Type:
-
Tank Container
-
Capacity:
-
21000 liters
-
External Dimensions(l x W x H)(mm):
-
6.058 x 2.438 x 2.591 m
-
Internal Dimensions(l x W x H)(mm):
-
5.899 x 2.352 x 2.393 m
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
LongTeng
-
Keyword:
-
milk transportation container
-
Main Material:
-
Q345 (frame), stainless steel (shell)
-
Standard:
-
ASME VIII Div 1
-
Certification:
-
LR for frame, BV for shell
-
Corner castings:
-
ISO 1161
-
Corrosion Allowance:
-
0.2mm
-
Shell Thickness:
-
4.4 mm
-
Ends Thickness:
-
4.7 mm min after forming
-
Application:
-
For transportation & storge cargoes
Safety
Environment-Friendly
Silod Tank container- a tank for the transport of grains and powders
Reefer tank container- a tank with the ability to cool the product to be transported
T1 ISO tank container (for wine and light liquids )
T4 ISO tank container (for non-hazardous edible and non-edible oils)
T11 ISO tank container (for non-hazardous chemicals)
T14 ISO tank container (for hazardous chemicals and acids like HCL and zinc chloride)
T50 ISO tank container (for High pressure liquefied gas，like LPG and ammonia gas)
T75 ISO tank container (for Liquefied gas at low temperature，like LN G, LCO2, LO2, LN2,)

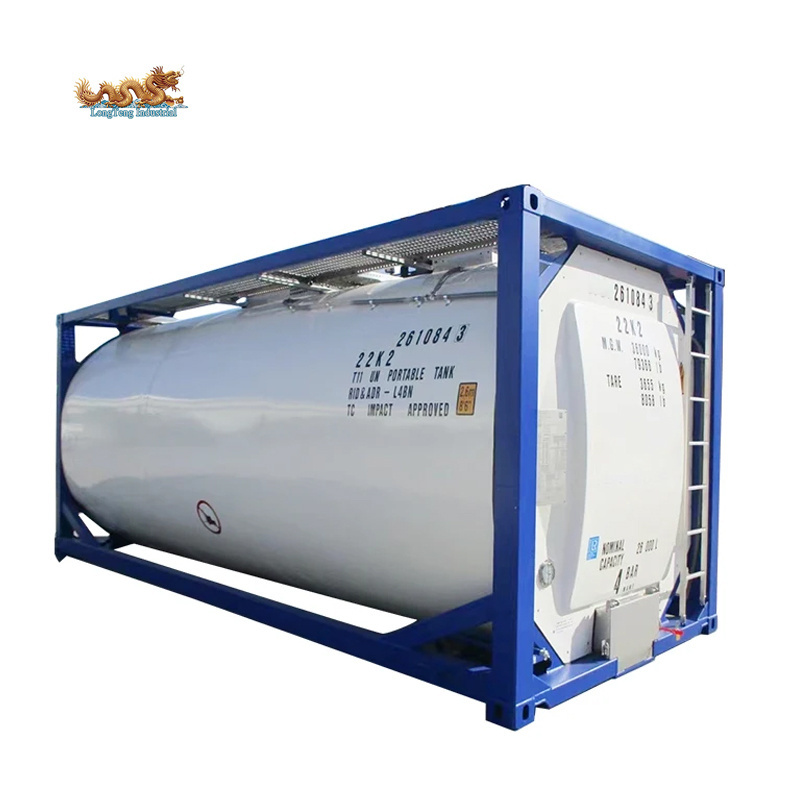

UN T3 Food Grade Milk Transportation SUS 316L 20ft ISO Tank Container Price
20 foot ISO tank container is used for shipping milk at 4
°C
Insulated with high performance PU insulation system, and can keep milk under 4
°C
for 10 days.
Have data loggers fitted recording both the ambient and milk temperature.
Large capacity. (For example, 21,000 L, depends on the requirements of customers)
Hygienic. Fitted with hygienic stainless steel milk fittings, and have a built-in CIP (cleaning in place) system with some 360°spray balls which can clean the inside surface completely.
With full 20ft frames:
No rails type:
|
20’ ISO food grade milk tank container
|
|
|
||
|
Specifications
|
Frame Dimensions
|
20’ x 8’ x 8’6”
|
||
|
|
Capacity
|
21,000 Litres +/- 2%
|
||
|
|
M.G.W.
|
36,000 kg
|
||
|
|
Tare Weight
|
3,700 kg
|
||
|
|
Max Payload
|
32,300 kg
|
||
|
Material
|
Vessel Material
|
SANS 50028-7 WNr 1.4402/1.4404 (C<0.03%) 316L
|
||
|
|
|
Shell: Cold Rolled 2B finish
|
||
|
|
|
Dished ends: Hot rolled and
|
||
|
|
|
polished internally to 1.0 Micron CLA
|
||
|
|
Shell Thickness
|
4.4 mm
|
||
|
|
Ends Thickness
|
4.7 mm Minimum after forming
|
||
|
|
Corrosion Allowance
|
0.2 mm
|
||
|
|
Frame Material
|
GB/T 1591-94-Q345D
|
||
|
|
Frame to Shell
|
304 stainless steel
|
||
|
|
Corner castings
|
ISO 1161 - 8 off
|
||
|
Pressure
|
Working Pressure
|
1.77 Bar
|
||
|
|
Test Pressure
|
2.65 Bar
|
||
|
Design Tempearture
|
-40°C to +100°C
|
|
||
|
Certification
& inspection |
Vessel Design Code
|
ASME VIII Div 1
|
||
|
|
Radiography
|
Shell:ASME Spot
|
||
|
|
|
Dished ends:ASME Full
|
||
|
|
Inspection Agency
|
Lloyds Register or Bureau Veritas
|
||
|
|
Design Approvals
|
IMDG T3, ADR/RID, CSC, TIR, ISO, UIC, US/UK DOT
|
||
Usually we provide BV , LR certification for Milk tank container:
Q: Are your 20ft ISO Tank container brand new?
A: Yes
Q:Can you produce customized container?
A: Yes,we can manufacture many kinds of special container.
Q: Can I get a container in different colour?
A.Yes
Q: What is your terms of payment?
A: 50%T/T deposit in advance, the balance is paid before shipment
Q: How about your product quality?
A; Our most product is made of high quality steel, Stainless Steel, corten steel (SPA-H Corten-A), and tank container is tested & certified ASME Standard.
If you need more info. for 20ft ISO tank container, pls feel free to contact us.
