Quick Details
-
Voltage:
-
110V/220V/380V/415V/460V
-
Dimension(L*W*H):
-
According to specific model
-
Weight:
-
KG
-
Product name:
-
sifter machine/plastic granules sieve shaker rotary vibrating screen
-
Material:
-
Carbon Steel, Stainless Steel 304/316L
-
Function:
-
Screening, separation, sorting, sieving, grading
-
Layer(s):
-
1-5 Layers
-
Screen Mesh:
-
2-500 Mesh
-
Diamater size range:
-
400~2000mm or customized
-
Customized:
-
Acceptable
-
Capacity:
-
100Kg-10Tons/hour
-
Cleaning system:
-
Bouncing Ball,Ultrasonic System
-
Motor:
-
Vertical Vibrating Motor
Quick Details
-
Type:
-
Circular
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
EVERSUN
-
Voltage:
-
110V/220V/380V/415V/460V
-
Dimension(L*W*H):
-
According to specific model
-
Weight:
-
KG
-
Product name:
-
sifter machine/plastic granules sieve shaker rotary vibrating screen
-
Material:
-
Carbon Steel, Stainless Steel 304/316L
-
Function:
-
Screening, separation, sorting, sieving, grading
-
Layer(s):
-
1-5 Layers
-
Screen Mesh:
-
2-500 Mesh
-
Diamater size range:
-
400~2000mm or customized
-
Customized:
-
Acceptable
-
Capacity:
-
100Kg-10Tons/hour
-
Cleaning system:
-
Bouncing Ball,Ultrasonic System
-
Motor:
-
Vertical Vibrating Motor

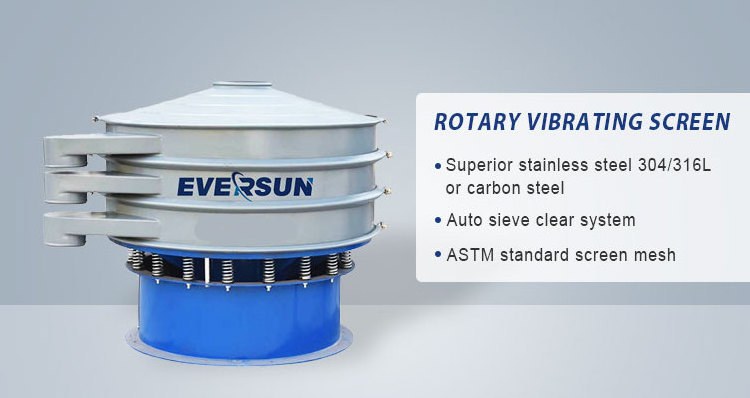

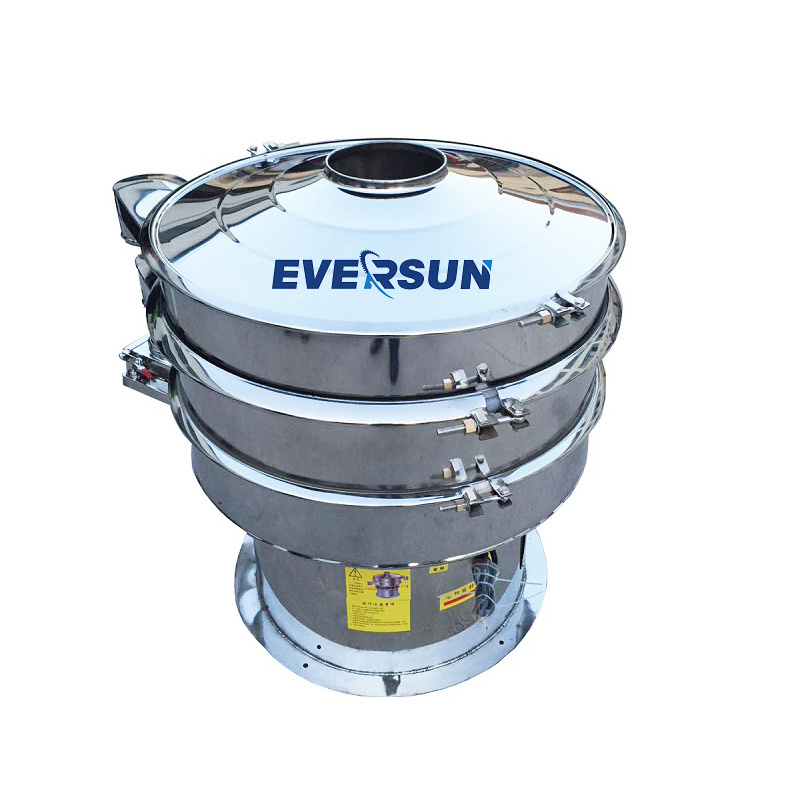

Factory rice husk sifter machine/plastic granules sieve shaker rotary vibrating screen
YZS series vibrating screen is one of precised powder sieve. With low noise and high efficiency, the filtering effect can be realized quickly in three to five minutes. Used to filter particles and powders.
All EVERSUN vibrating sieving machine are available in a variety of models to suit all industries and are suitable for all production lines. EVERSUN can also provide customized machines and solutions for all clients based on their requirements.
Features & Benefits
-
Customized Service & High Capacity
-
Wide Application
-
Large Range of Mesh Sizes
-
Auto Sieve Clear System & Cost Saving
| Model | Power(kw) | Mesh size | Sieve effective diameter(mm) | Layer(s) | Dimension of machine(mm) | ||
| Length | Width | Height | |||||
| YZS-400 | 0.18 | 2-500 | 355 | 1~3S | 580 | 580 | 560-760 |
| YZS-600 | 0.55 | 2-500 | 555 | 800 | 800 | 680-880 | |
| YZS-800 | 0.75 | 2-500 | 755 | 900 | 900 | 780-1080 | |
| YZS-1000 | 1.1 | 2-500 | 925 | 1160 | 1160 | 880-1180 | |
| YZS-1200 | 1.75 | 2-500 | 1125 | 1360 | 1360 | 980-1360 | |
| YZS-1500 | 2.2 | 2-500 | 1425 | 1850 | 1850 | 1130-1550 | |
| YZS-1800 | 3 | 2-500 | 1725 | 2200 | 2200 | 1360-1680 | |
| YZS-2000 | 3.7 | 2-500 | 1910 | 2340 | 2340 | 1360-1680 | |
