Well Designed Small Size x ray baggage scanner security check parcel x-ray baggage scanner

General Specifications

• Tunnel Size : 500 ( W ) *300 ( H ) mm
• Conveyor Speed: 0.22m/s
• Conveyor Max Load: 150 KG
• Single inspection dosage: < 1.32μGy
• Wire Resolution: 40AWG
• Steel Penetration: 10MM
• Film Safety: For ISO 1600
• Gross Weight: 425kgs

X-RAY Generator

• Orientation: Upward
• Tube Current: 0.4~0.7MA ( adjustable )
• Anode Voltage: 80-160KV ( adjustable )
• Angle: 60°
• Generator cooling/working periods: Sealed oil bath with forced air/100 %

Operating Environment

• Storage Temperature: -20 ℃ to 60 ℃
• Operating Temperature: 0 ℃ to 45 ℃
• Relative Humidity: 20 to 95% non-condensing
• System Power: 220 VAC (±10%) 50±3HZ
• Power wastage: 1.0 KW (Max)
• Noise: <65DB

X-RAY Sensor

• L-shaped array detector
• 24bit
• Single energy

Image Performance System

• Display: High-resolution 19 inch color LCD display
• Color quality: 24-Bit real colors based on materials
• Edge enhancement: Object contour edge is more distinct
• Super image enhancement: Image detail is more distinct
• High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly
• Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.
• Magnifier: Partial magnifying function
• Brightening/dimming: Increase/Decrease brightness of image
• Image recurrence: Display the previous twenty images and process any one of them
• Image restoration : Restore image to initial status
• Image storage: Real-time store any image and process it in operation status
• Detector: L-shaped dual energy semi-conductor PD array detector module

• Color Material Identification: Organic objects in orange, inorganic objects in blue, mixture in Green. assist to detect drug and explosive powder.

Special features

• Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time
• Safety ray: Ray is transmitted under automatic control, avoiding the error
• One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient
• Eagle eye: Capable of expediently observing the magnifying area
• Self-diagnosis function: Give message automatically if malfunction for prompt maintenance

Package and shipping

• Package: one plywood box package;
• Size of Package: 180*95*144mm, 2.5CBM;

Application

Railway, Court, Meetings, Exhibition, Factory, Hotel entainment, Prison etc...

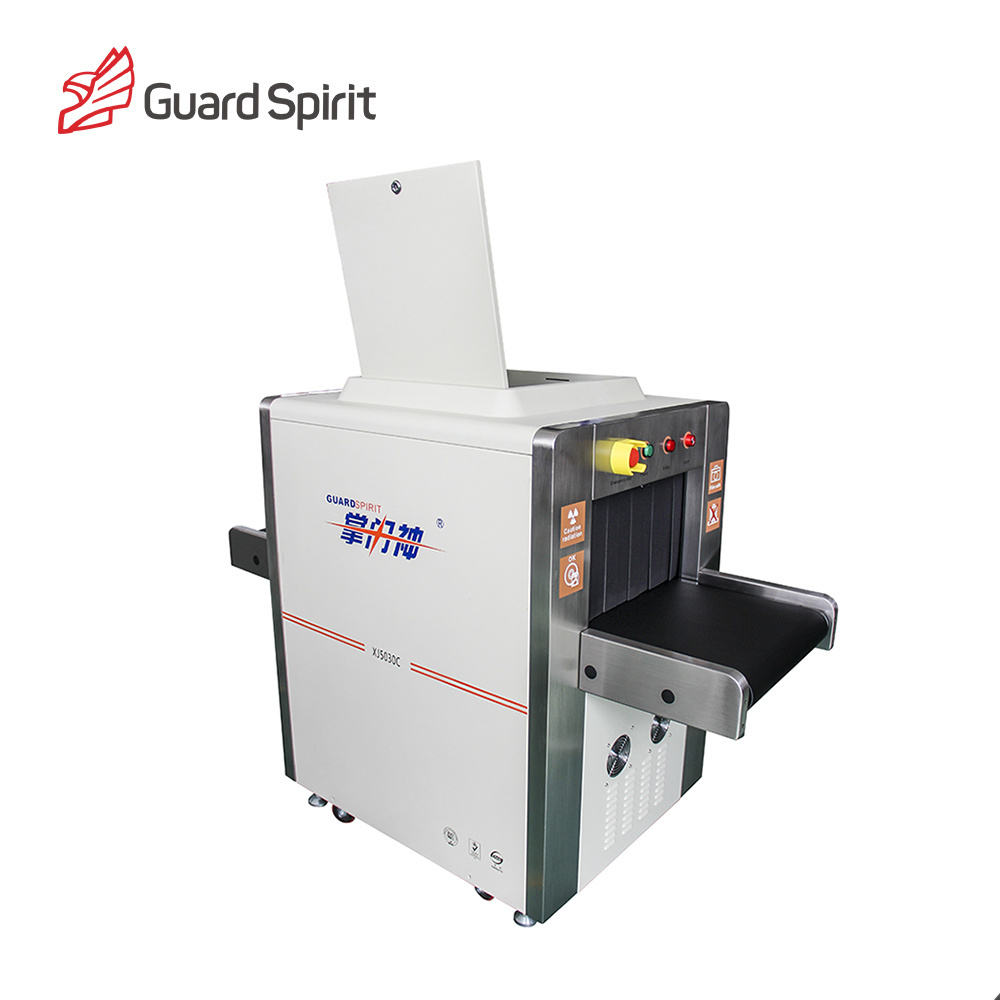

Products Pictures
