Quick Details
-
Brand Name:
-
CNBX
-
Model Number:
-
3*100
-
Product Dimensions:
-
3*100
-
Length:
-
100mm
-
Color:
-
100Pcs+Black
-
Bundle diameter:
-
4-63
-
Min.loop tensile:
-
48 Pounds
-
Feature:
-
Flamme-retardant, Heat-resistant
-
Certification:
-
ROHS,CE
-
Working Temperat:
-
-40℃-85℃
-
Packaging:
-
100pcs/bag
Quick Details
-
Type:
-
Self-Locking
-
Material:
-
nylon66
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CNBX
-
Model Number:
-
3*100
-
Product Dimensions:
-
3*100
-
Length:
-
100mm
-
Color:
-
100Pcs+Black
-
Bundle diameter:
-
4-63
-
Min.loop tensile:
-
48 Pounds
-
Feature:
-
Flamme-retardant, Heat-resistant
-
Certification:
-
ROHS,CE
-
Working Temperat:
-
-40℃-85℃
-
Packaging:
-
100pcs/bag

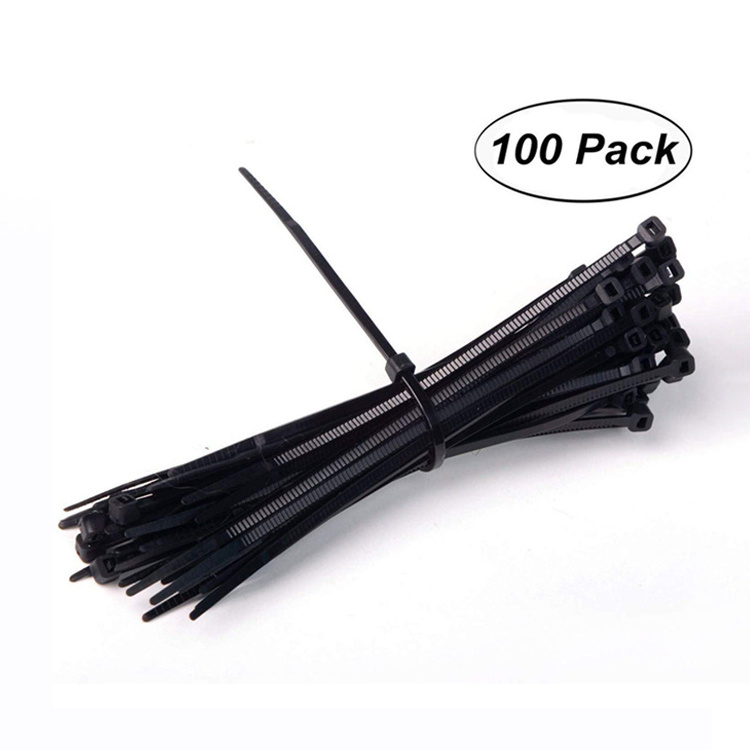

CNBX High Tensile Strength Self Locking Nylon 66 Cable Ties
|
Material: |
Nylon66(ULapproved material) |
|
Structure: |
Self locking head |
|
Color: |
White/black/nature standard color, other colors are available on request |
|
Working temperature: |
Applied from -40℃ to 85℃ |
|
Length: |
All lengths are available |
|
Feature: |
Flame-retardant(94V-2), heat-resistant |
|
Certificate: |
SGS, RoHS, CE |
|
Usage: |
First, the cable is bundled in the nylon cable tie; |
|
N ext,the tail of the nylon cable tie is clamped by the tool; |
|
|
F inally, tighten with tool |
|
|
Application: |
Used to bundle cables, wires, conducts, plants or other things in the industry of electrical & electronic, lighting, hardware, pharmaceutical, chemical, computer, machinery, agriculture, etc. |
|
Delivery time: |
3-15 days (Depend on your order quantity) after confirm order. |
|
Payment terms: |
T/T,Western Union,L/C ,PayPal |
Self Locking Nylon 66 Cable Ties
| Part No | Length mm(inch) | Width (mm) | Bundle diameter E(mm) | Min.Loop Tensile Strength | |
| LBS KGS | |||||
| 3*100 | 100(3.94) | 2.5 | 2~22 | 18 | 8 |
| 3*120 | 120(4.72) | 2.5 | 2-30 | 18 | 8 |
| 3*150 | 150(5.91) | 2.5 | 2-35 | 18 | 8 |
| 3*200 | 200(7.87) | 2.5 | 3-50 | 18 | 8 |
| 4*120 | 120(4.72) | 3.5 | 3-30 | 40 | 18 |
| 4*150 | 150(5.91) | 3.5 | 3-35 | 40 | 18 |
| 4*200 | 200(7.87) | 3.5 | 3-50 | 40 | 18 |
| 4*250 | 250(9.84) | 3.5 | 3-65 | 40 | 18 |
| 4*300 | 300(11.81) | 3.5 | 3-80 | 46 | 18 |
| 5*120 | 120(4.72) | 4.8 | 3-24 | 50 | 22 |
| 5*200 | 200(7.87) | 4.5 | 3-50 | 50 | 22 |
| 5*250 | 250(9.84) | 4.5 | 3-65 | 50 | 22 |
| 5*300 | 300(11.81) | 4.5 | 3-82 | 50 | 22 |
| 5*380 | 380(14.96) | 4.7 | 3-102 | 50 | 22 |
| 5*400 | 400(15.75) | 4.7 | 3-105 | 50 | 22 |
| 5*450 | 450(17.72) | 4.7 | 3-130 | 50 | 22 |
| 5*500 | 500(19.69) | 4.7 | 3-150 | 50 | 22 |
| 8*200 | 200(7.87) | 7.6 | 3-50 | 85 | 55 |
| 8*250 | 250(9.84) | 7.6 | 4-63 | 85 | 55 |
| 8*300 | 300(11.81) | 7.6 | 4-82 | 85 | 55 |
| 8*350 | 350(13.78) | 7.6 | 4-90 | 120 | 55 |
| 8*370 | 370(14.57) | 7.6 | 4-98 | 85 | 55 |
| 8*400 | 400(15.75) | 7.6 | 4-105 | 120 | 55 |
| 8*450 | 450(17.72) | 7.6 | 4-118 | 120 | 55 |
| 8*500 | 500(19.69) | 7.6 | 4-150 | 120 | 55 |
