Product name:
-
Auto Connector
-
Rated Voltage:
-
250V
-
Rated Current:
-
4A
-
Protection level:
-
IP67/IP68/IP69K
-
Operating Temperature:
-
-25℃-+85℃
Quick Details
-
Type:
-
Assembly Connector
-
Application:
-
Automotive
-
Gender:
-
Male
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Signal
-
Model Number:
-
M12
-
Product name:
-
Auto Connector
-
Rated Voltage:
-
250V
-
Rated Current:
-
4A
-
Protection level:
-
IP67/IP68/IP69K
-
Operating Temperature:
-
-25℃-+85℃

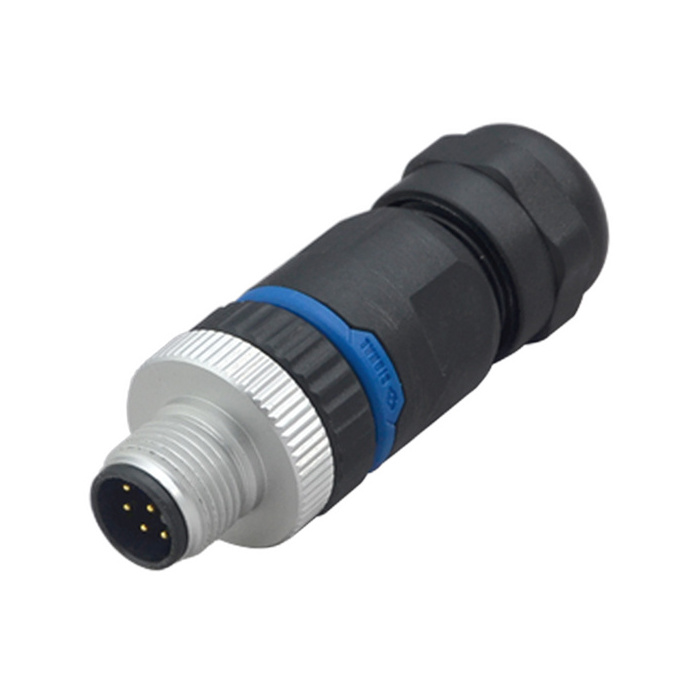

OEM M12 Assembly Connector Waterproof Plastic Male Female A B C D X K L M S Code
Product Description
| Product Description |
Characteristics of M12 Series
| General Characteristics | ||||||
| Number of contact | 3 | 4 | 5 | 8 | 12 | 17 |
| Locking system | screw M12*1.0 | |||||
| Termination | solder, moulded on cable, crimp or screw clamp | |||||
| Wire guage in mm² | 0.14/0.25/0.34/0.5 etc | |||||
| Wire guage in AWG | 26/24/22/20 etc | |||||
| Shell protection | IP67/IP68 | |||||
| Mechanical operation | >500 mating cycles | |||||
| Upper temperature | +85 ℃ | |||||
| Lower temperature | -25 ℃ | |||||
| Electrical Characteristics | ||||||
| Rated voltage | 250V | 60V | 30V | |||
| Pollution degree | III | |||||
| Test voltage | 500V±15V | |||||
| Rated current(40℃) | 4A | 1.5A | ||||
| Contact resistance | ≤10mΩ | |||||
| insulation resistance | ≥100MΩ | |||||
| Materials | ||||||
| Pin contact | CuZn | |||||
| Socket contact | CuSn | |||||
| Contact plating | Au | |||||
| Upper temperature | PA66(UL 94V-0) | |||||
| Female insent | PA66(UL 94V-0) | |||||
| Material of cable jacket | PVC or PUR | |||||
| Screw | CuZn | |||||
| Nut | CuZn | |||||
